Control Assembly: Service and Repair

REMOVAL
1. Disconnect the battery. For additional information, refer to Battery.







2. Remove the instrument panel relay cover.

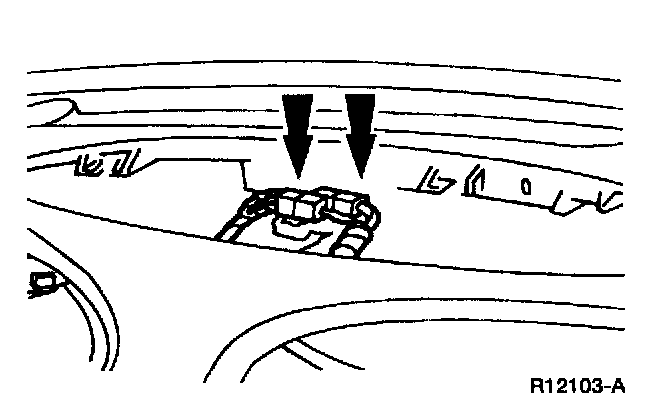

3. Disconnect the two passenger air bag defeat switch electrical connectors. For additional information, refer to Air Bag Systems.

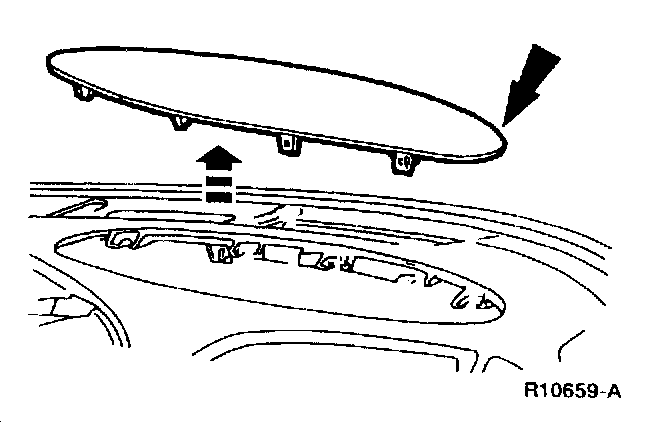

4. Remove the center instrument panel finish panel.
^ Carefully pry to release four Clips.

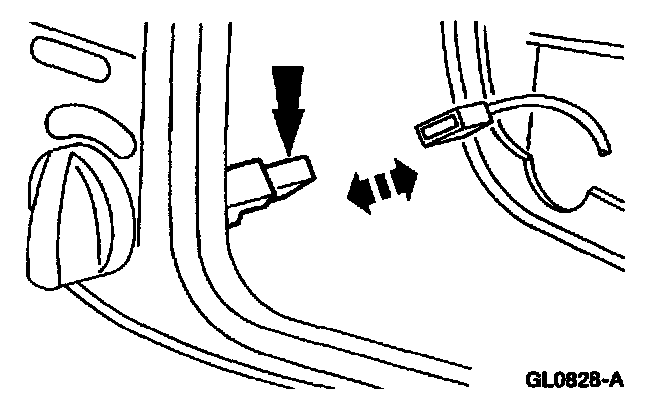

5. If equipped, disconnect the 4WD control switch connector.

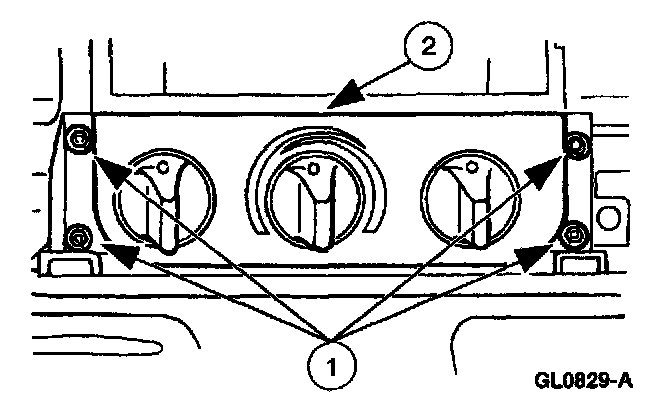

6. Remove the climate control assembly.
1 Remove the screws.
2 Pull out the climate control assembly.

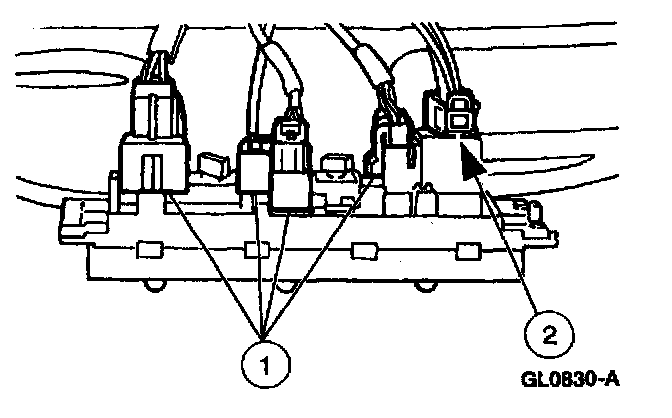

7. Disconnect the climate control assembly.
1 Disconnect the electrical connectors.
2 Disconnect the vacuum line connector.

INSTALLATION
1. To install, reverse the removal procedure.
