Spark Plug: Service and Repair

Spark Plug Wire Remover:

SPECIAL SERVICE TOOL(S)

REMOVAL







1. Using the special tool, with a twisting motion pull the spark plug wire off the spark plug.

CAUTION:
^ Spark plug wires must be connected correctly. Mark the spark plug wires before removing them from the spark plugs.
^ It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.







2. Remove the spark plug.

NOTE:
^ Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.
^ If an original spark plug is reused, make sure it is installed in the same cylinder from which it was taken. New spark plugs can be used in any cylinder.

3. Inspect the spark plug firing tip. For additional information, refer to Engine.







4. Adjust the spark plug gap as necessary.

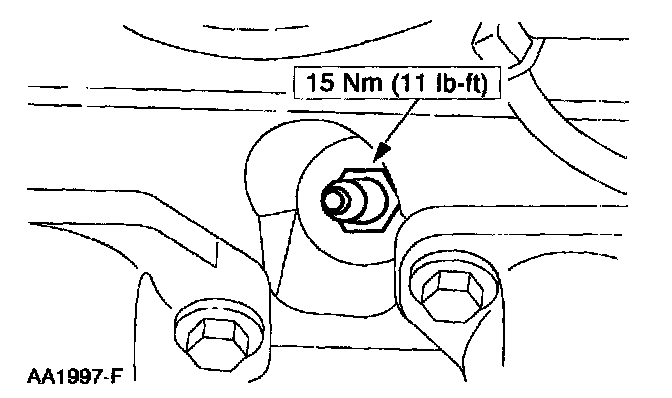

INSTALLATION
1. To install, reverse the removal procedure.
