Power Mirror Switch: Testing and Inspection

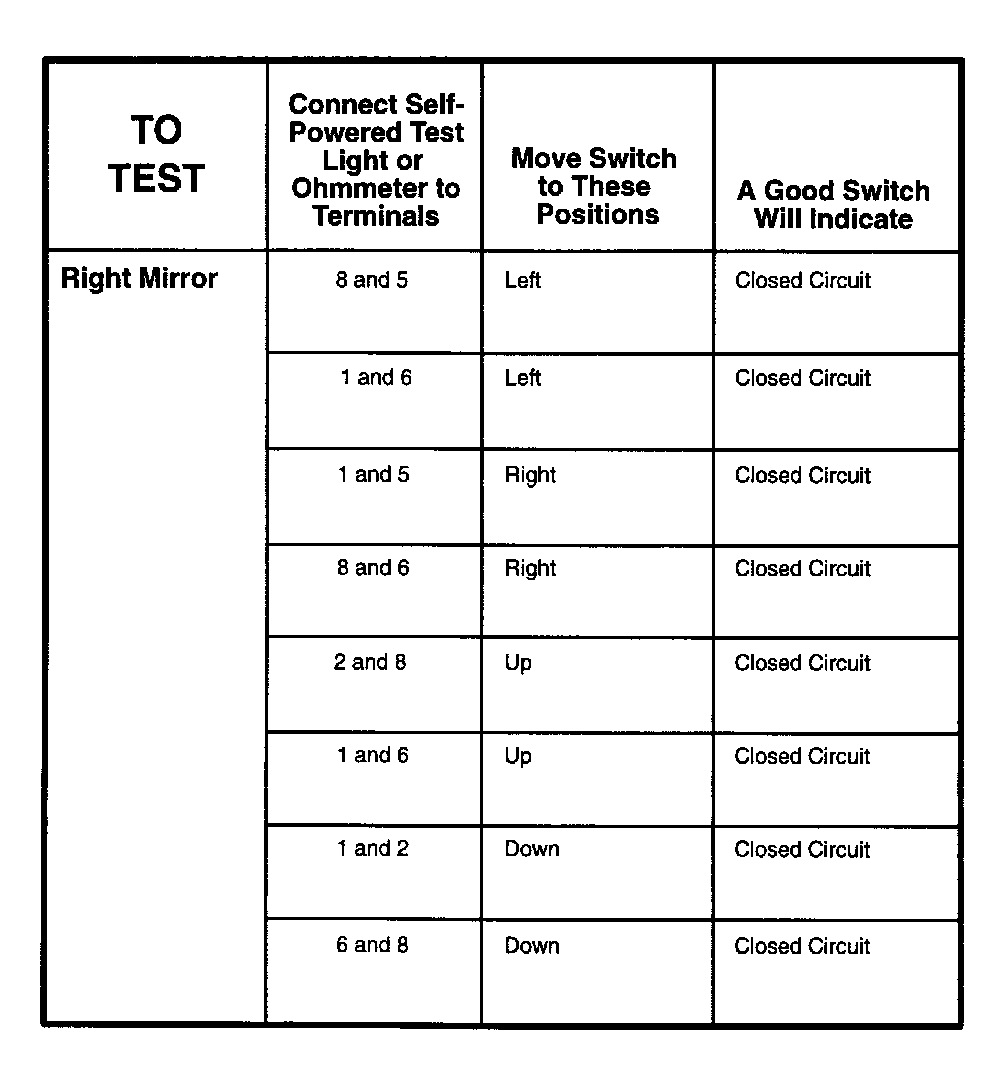

Component Testing Procedure (Part 1 Of 2):






Component Testing Procedure (Part 2 Of 2):






Terminals:






Schematic:
