Test L: Brake Warning Indicator Is Never on - Red Brake Warning Indicator (Except Motrohome)

L1 - L2:






L3 - L4:

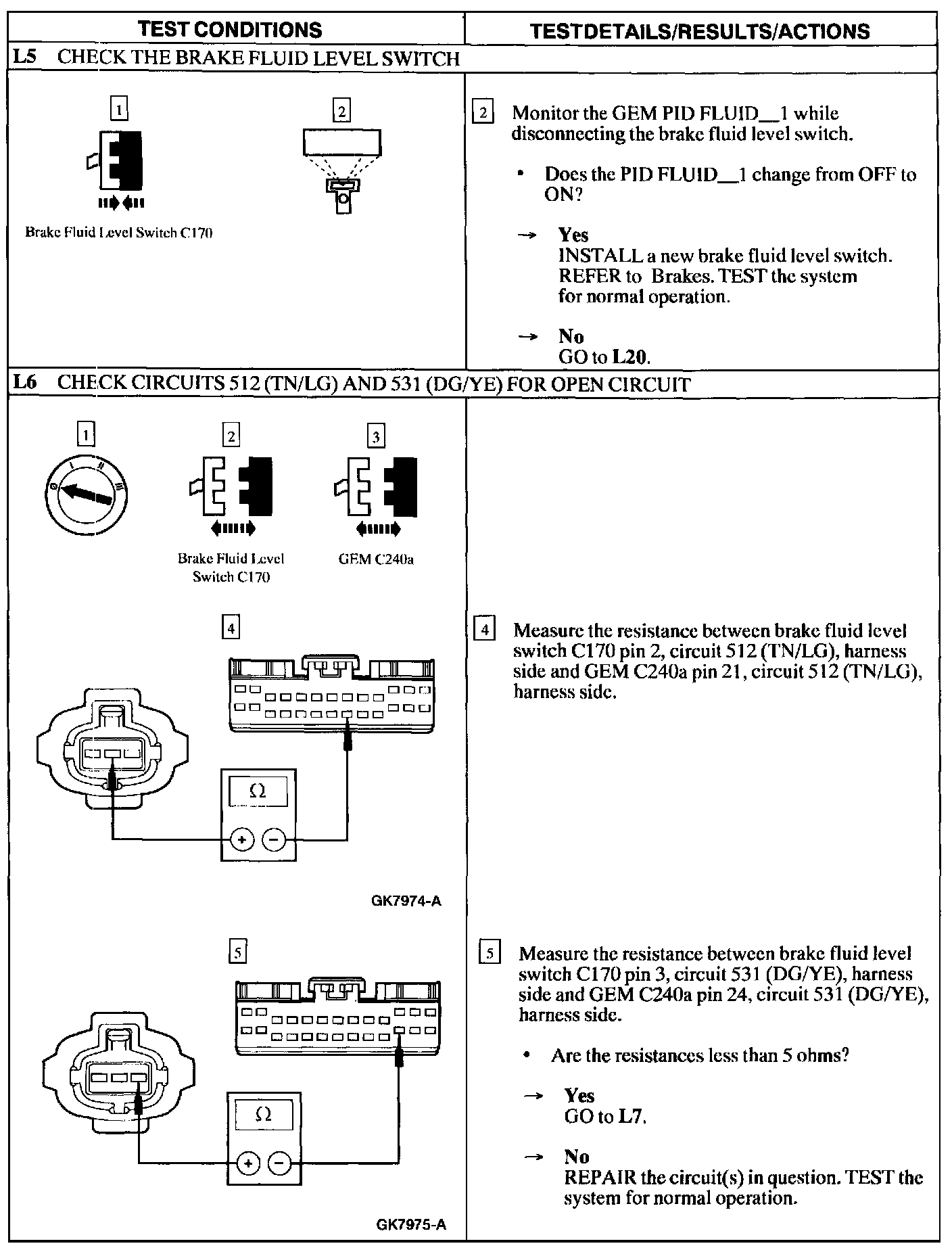

L5 - L6:






L7:

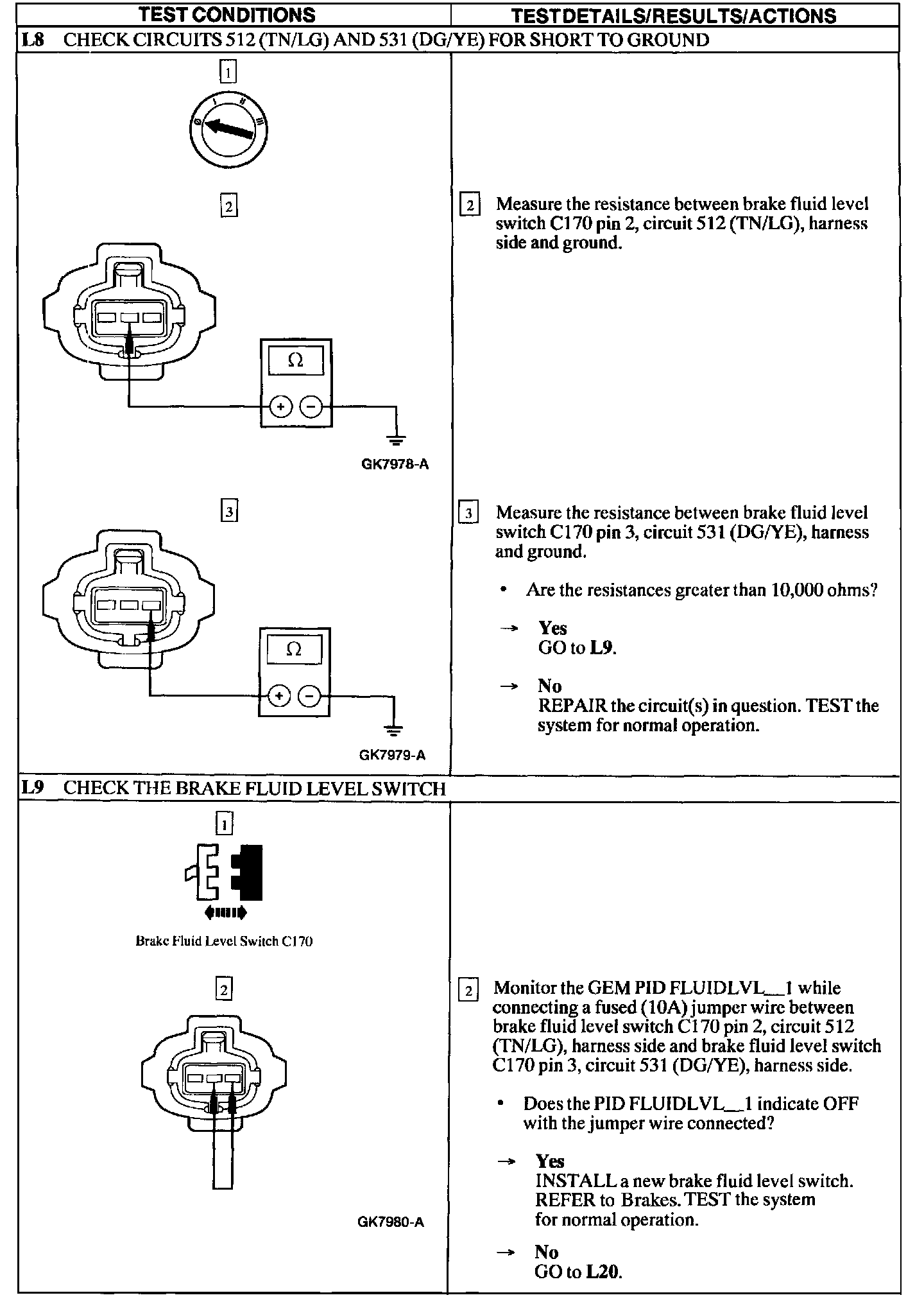

L8 - L9:






L10 - L11:






L12 - L13:






L14 - L15:






L16 - L17:

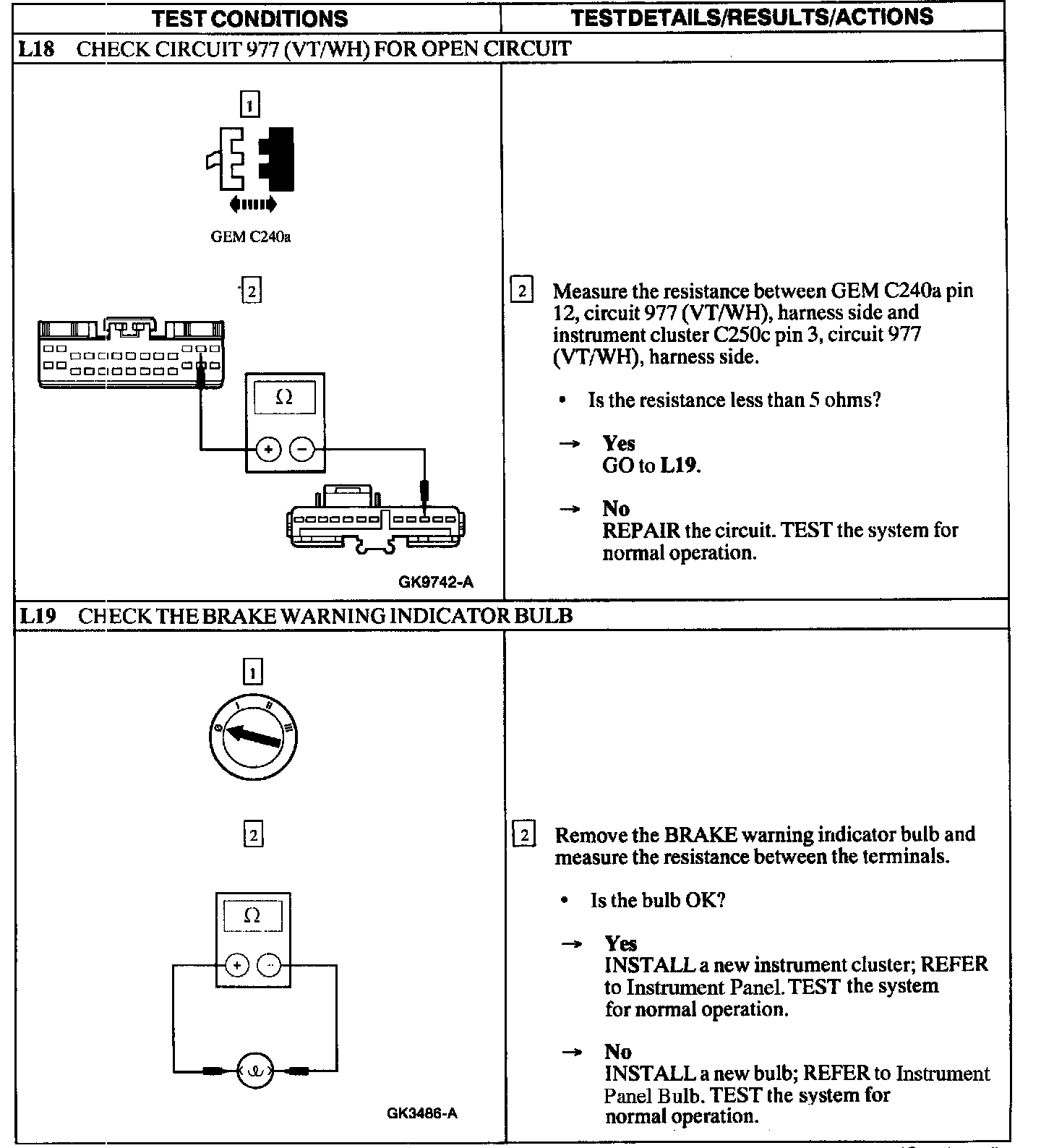

L18 - L19:






L20:
