Steering Damper: Service and Repair

Damper - F-250, F-350, 4x4, and F-450, F-550

Removal

Note: The procedure for the 4x4 is shown, the 4x2 procedure is similar.

1. Position and lock the wheels in the straight-forward position. Raise and support the vehicle.

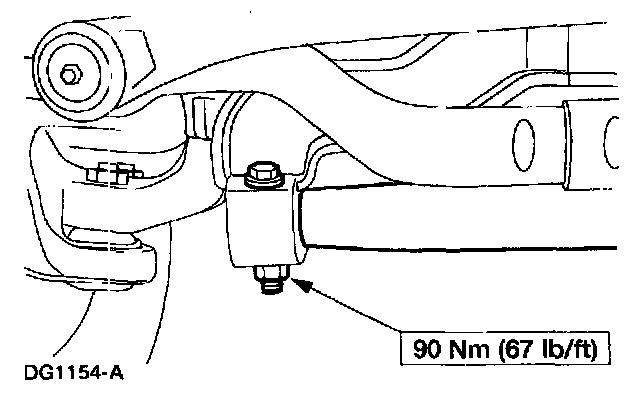

2. Remove the bolt and nut.





3. Remove the bolt and nut. Remove the damper.

Installation








1. Follow the removal procedure in reverse order.
