Home >> Ford >> 2000 >> F 550 2WD Super Duty V8-7.3L DSL Turbo VIN F >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> J: C1241 - ABS Hydraulic Pressure Differential Switch Input Circuit Short to Ground

J: C1241 - ABS Hydraulic Pressure Differential Switch Input Circuit Short to Ground



PINPOINT TEST J: DTC C1241 - ABS HYDRAULIC PRESSURE DIFFERENTIAL SWITCH INPUT CIRCUIT SHORT TO GROUND

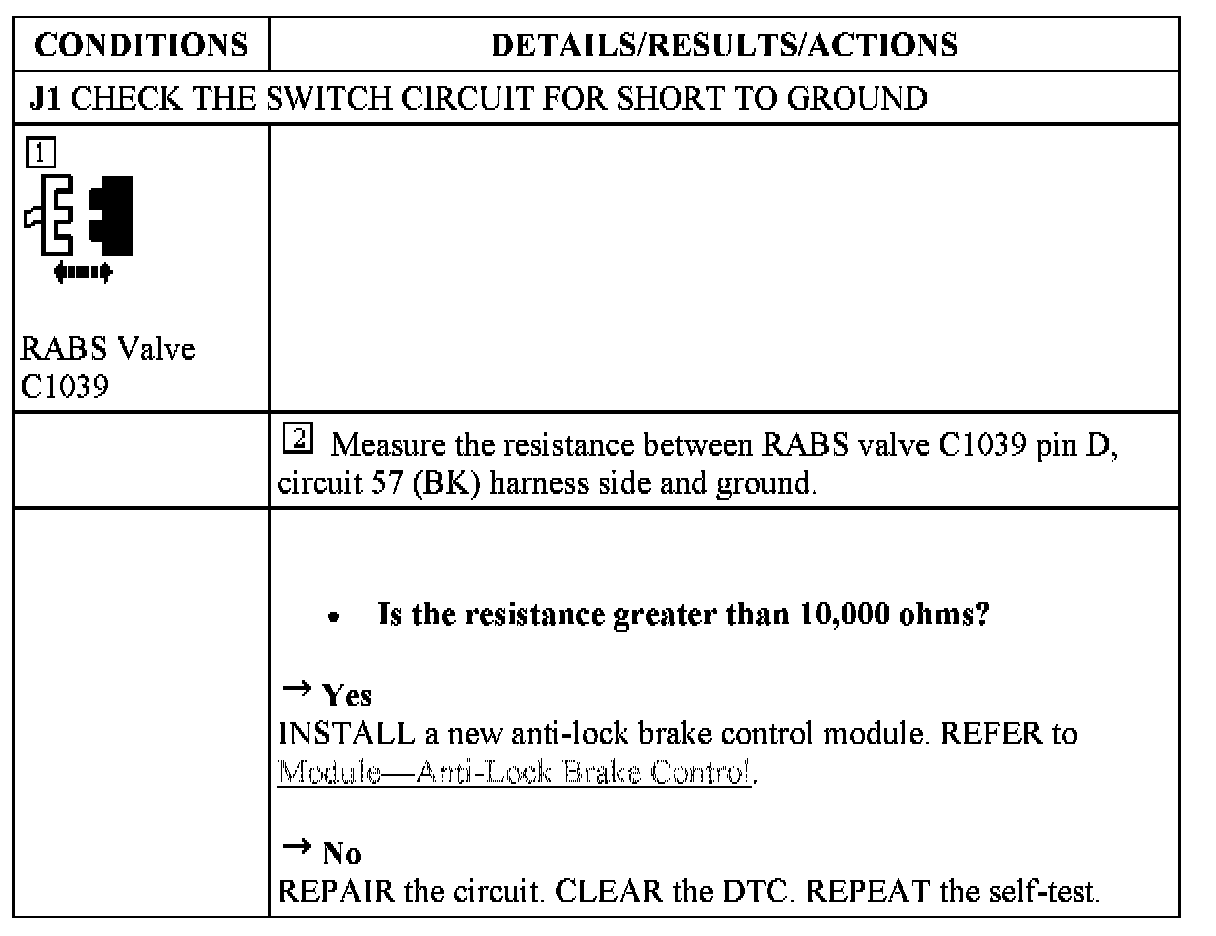

J1:
