Test A: Shift Interlock System Does Not Release/Lock Correctly
Test A: Shift Interlock System Does Not Release/Lock Correctly
A1 - A2
A3
A4 - A5

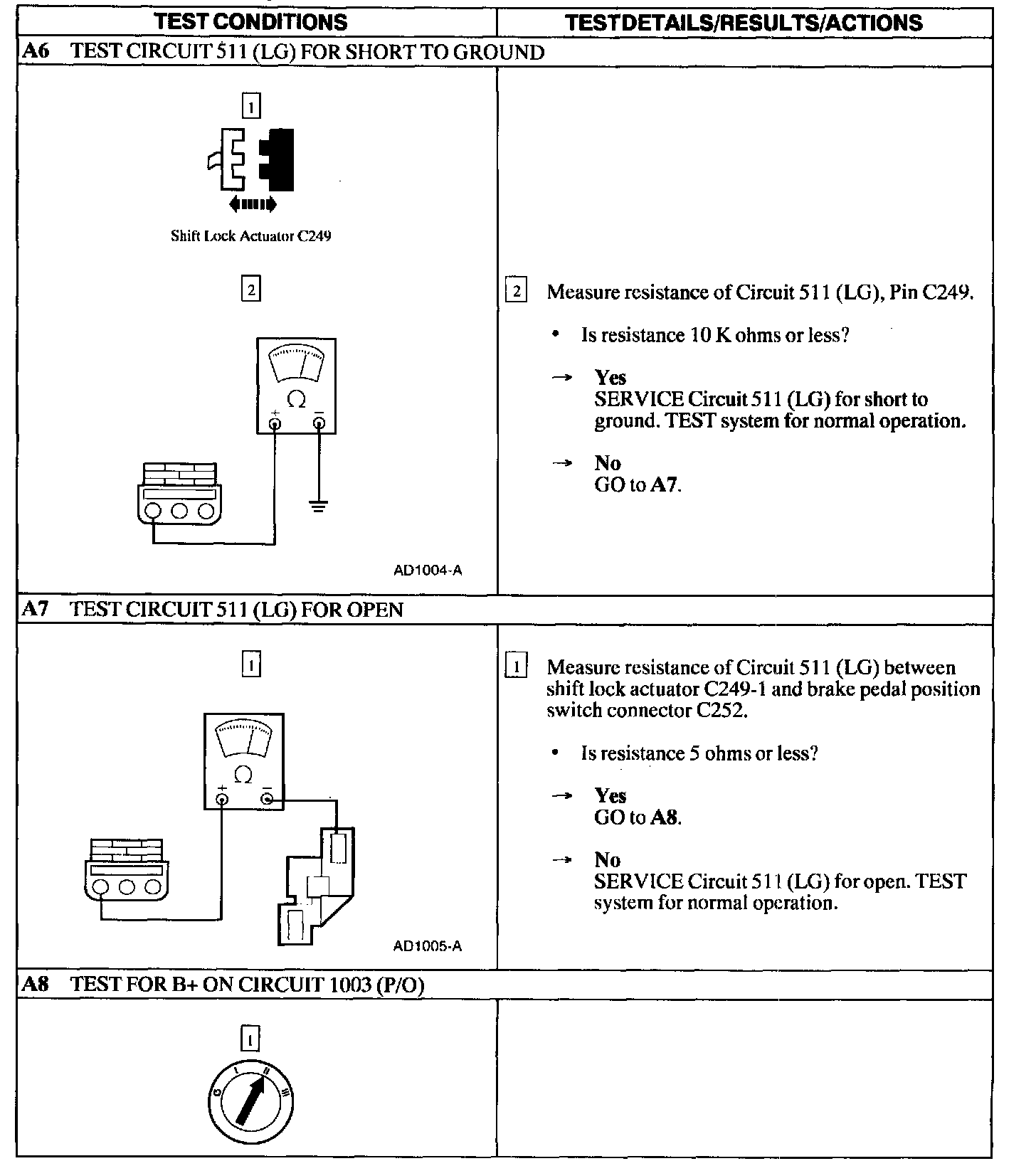

A6 - A8
A8 - A10

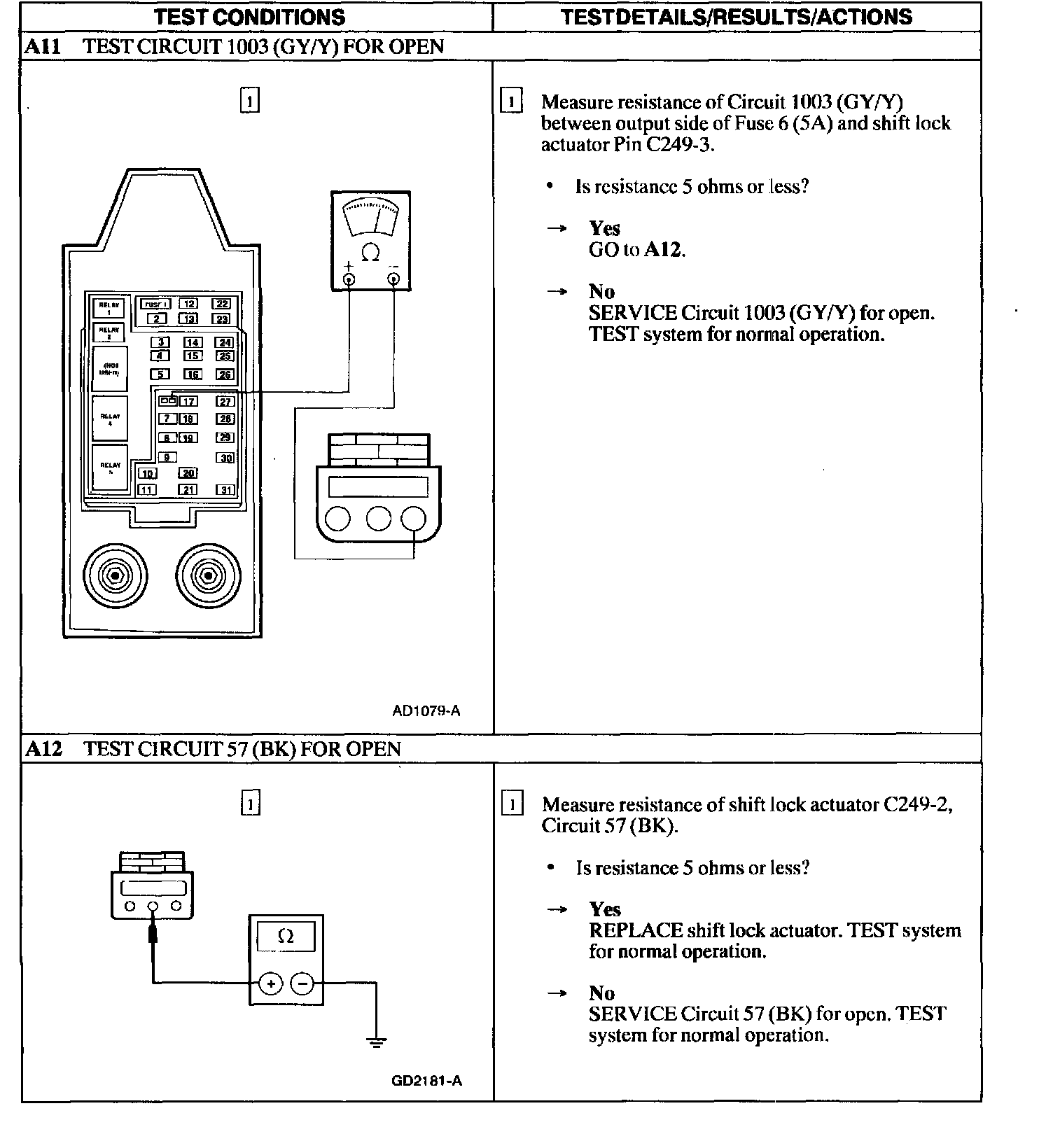

A11 - A12
