Electrical Diagrams

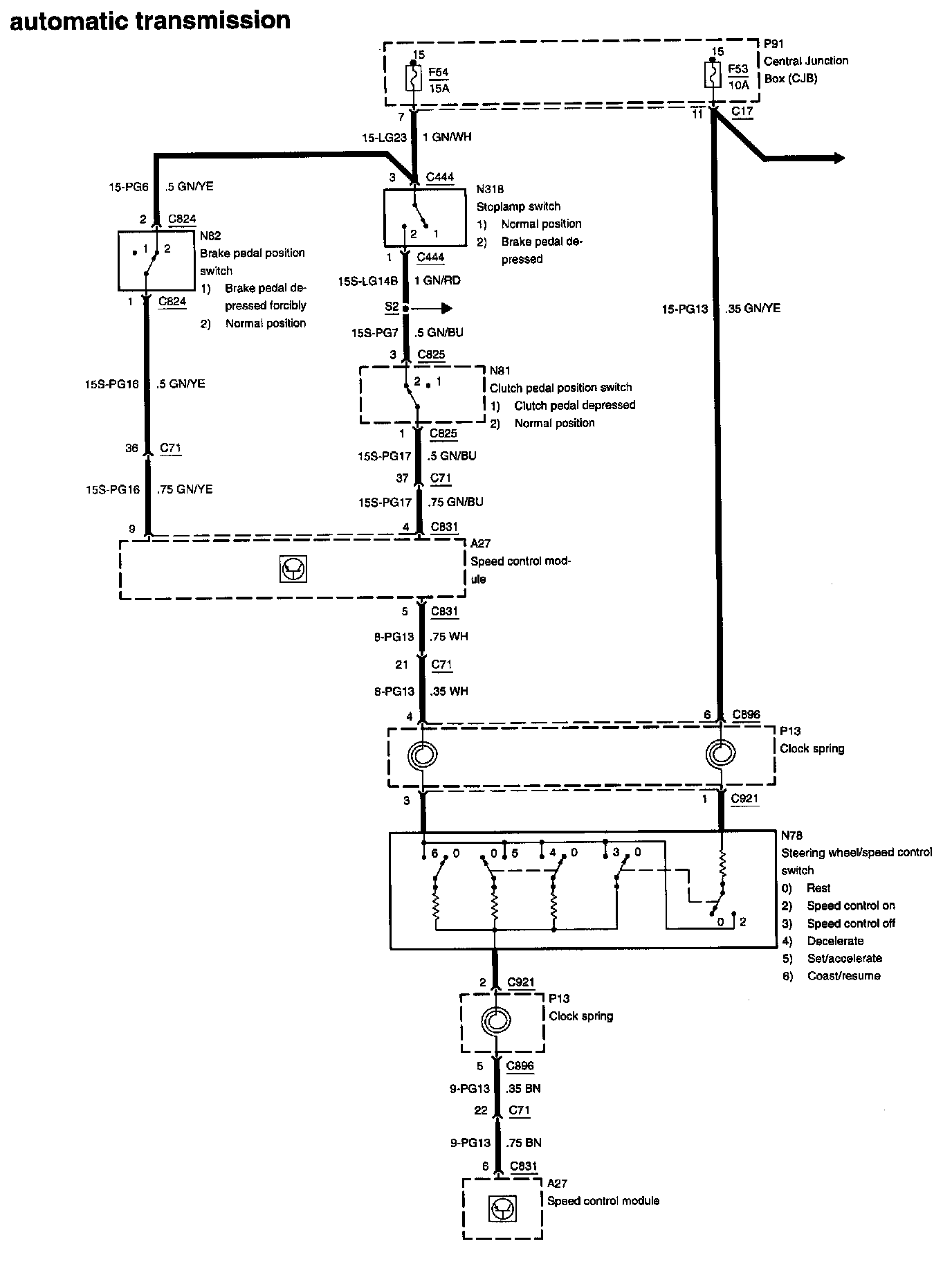

Diagram 310-03-00-1:

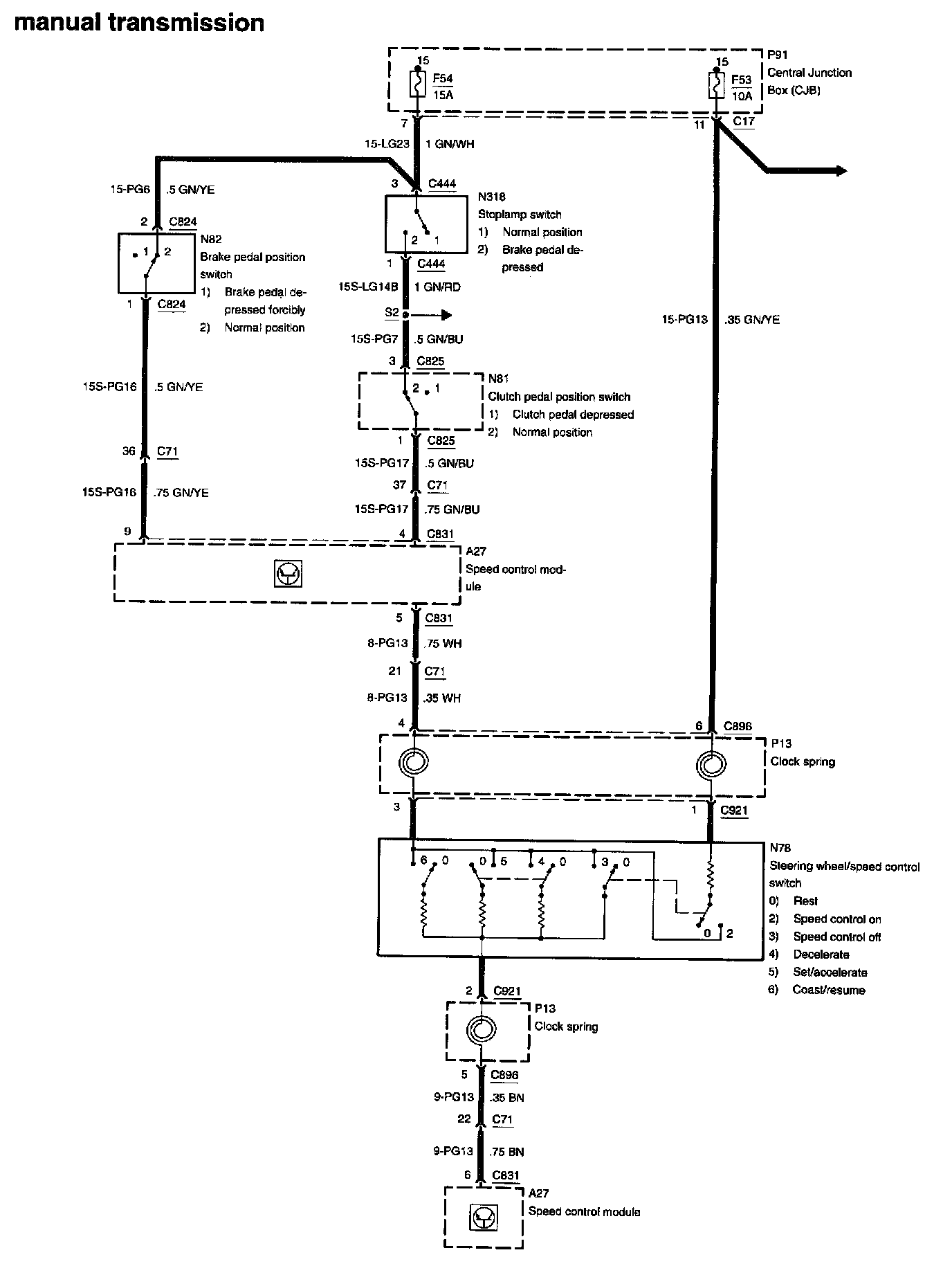

Diagram 310-03-00-2:

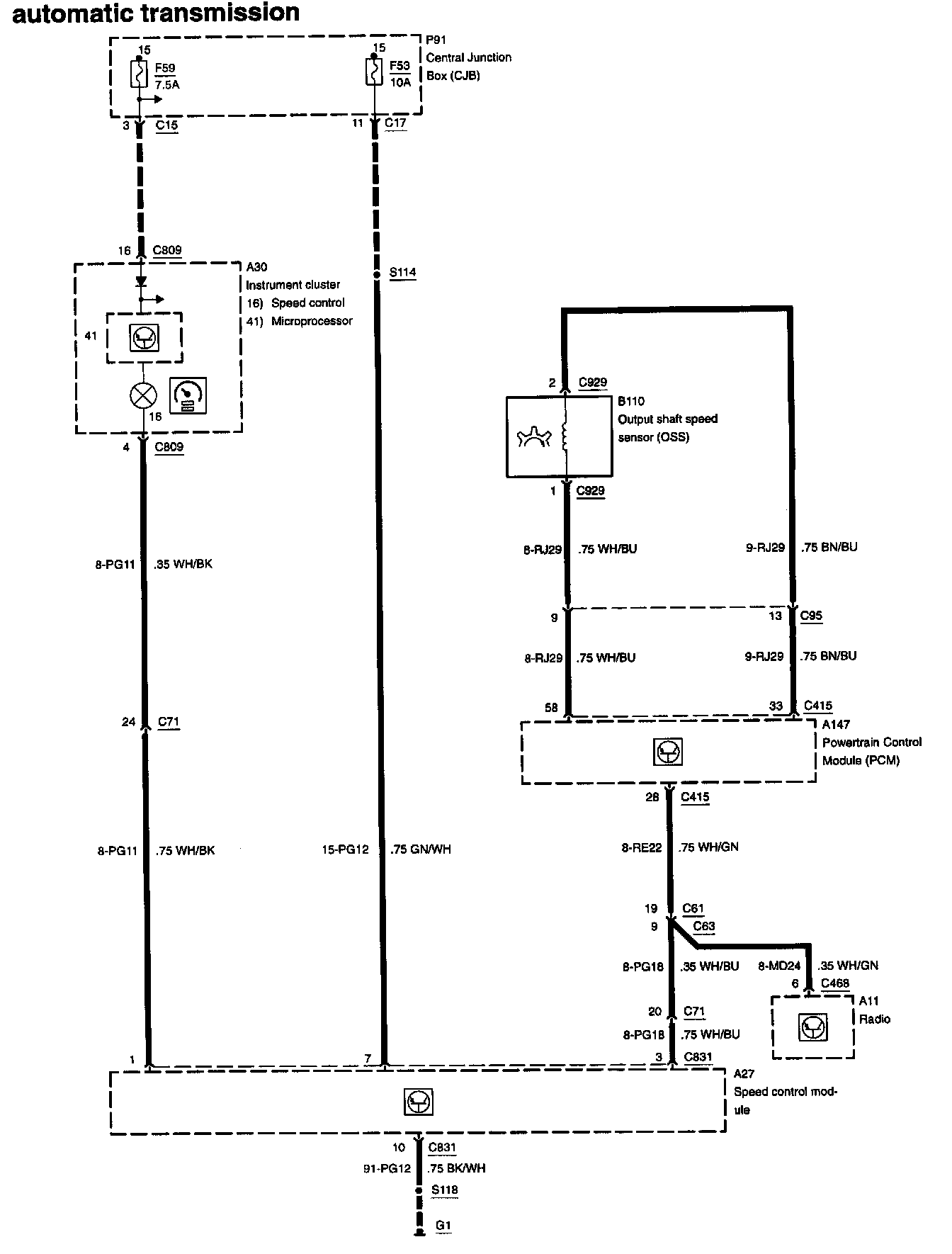

Diagram 310-03-00-3:

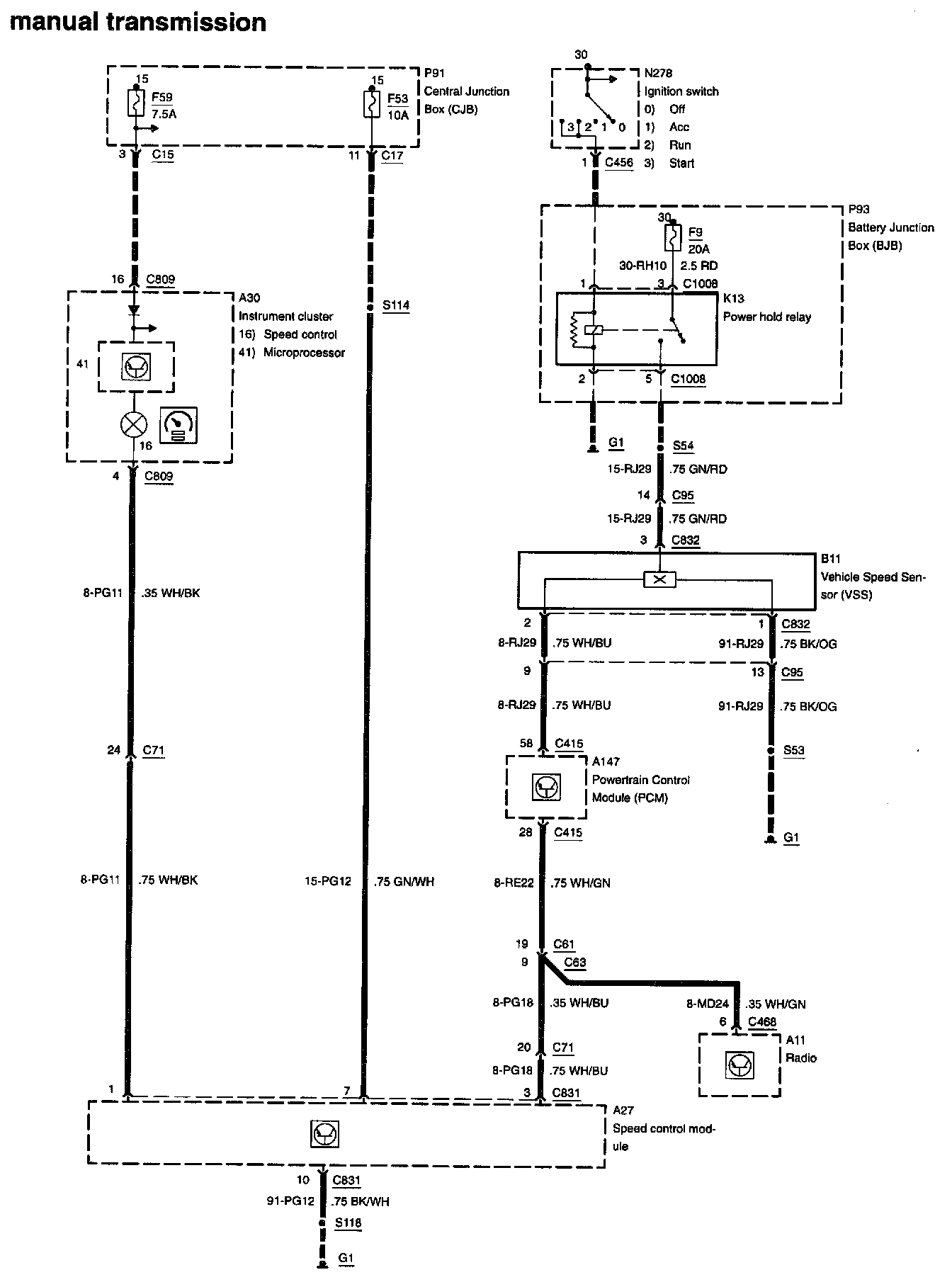

Diagram 310-03-00-4:
