2.0L SPI
Accessory Drive Belt - 2.0L SPIRemoval 1.
Raise and support the vehicle.
2.

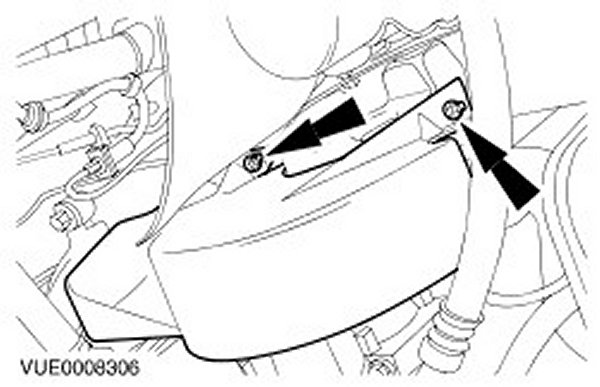

Remove the accessory drive belt splash shield.
3.
Lower the vehicle.
4.
Remove the accessory drive belt.
-

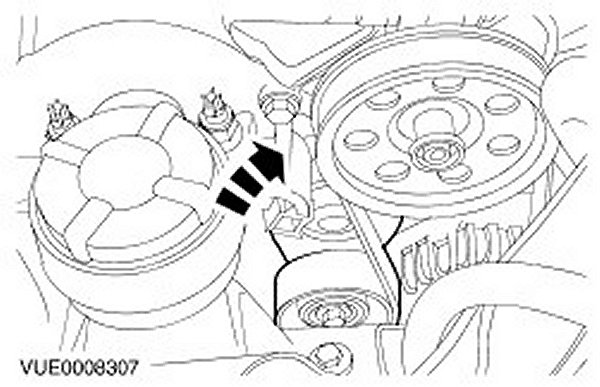

Using a 3/8 inch square drive breaker bar in the hole provided, rotate the tensioner clockwise.
Installation 1.
To install, reverse the removal procedure.
