Test B: No Communic. With the Generic Electronic Module
Test B: No Communic. With the Generic Electronic Module

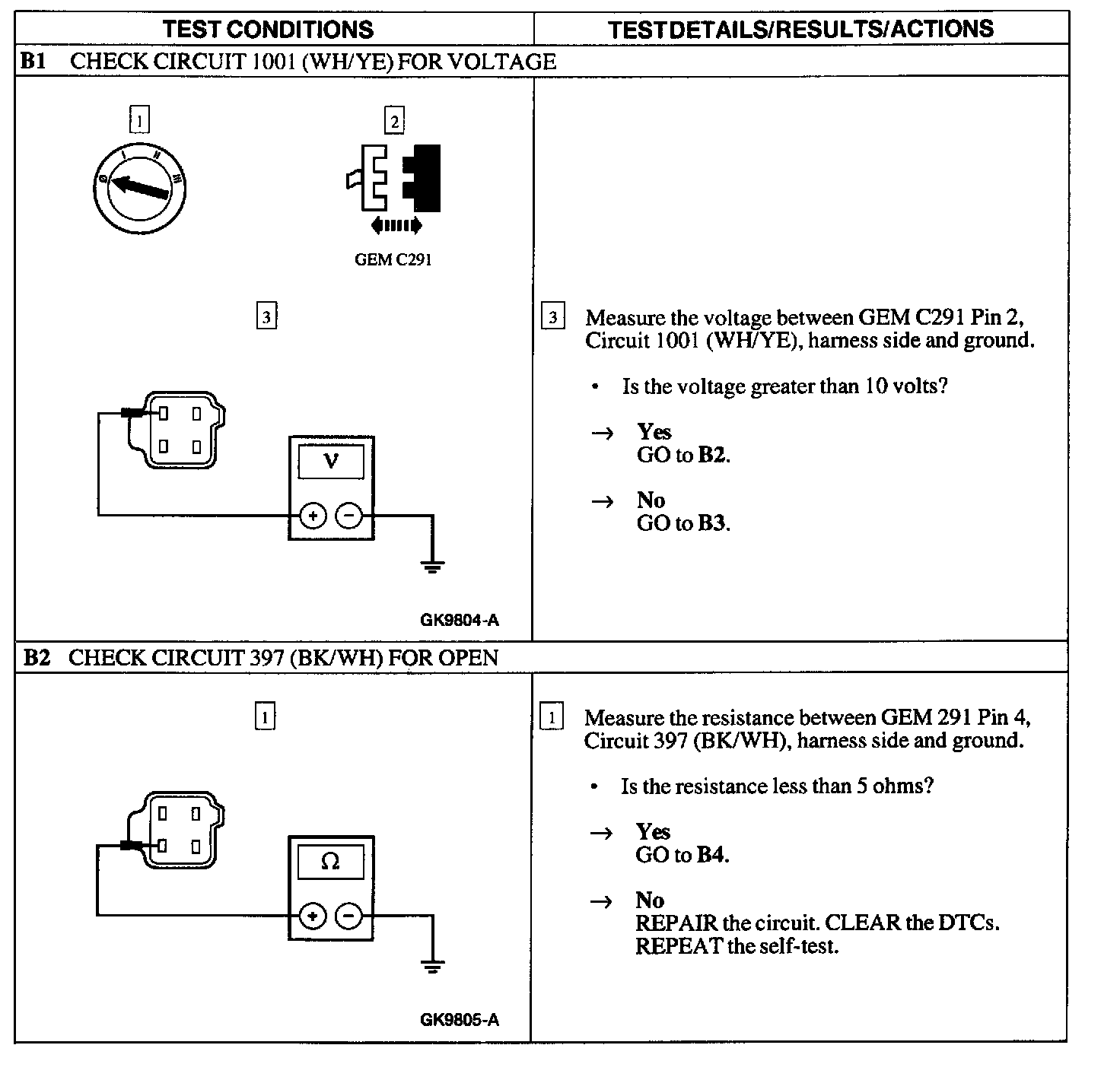

B1 - B2:

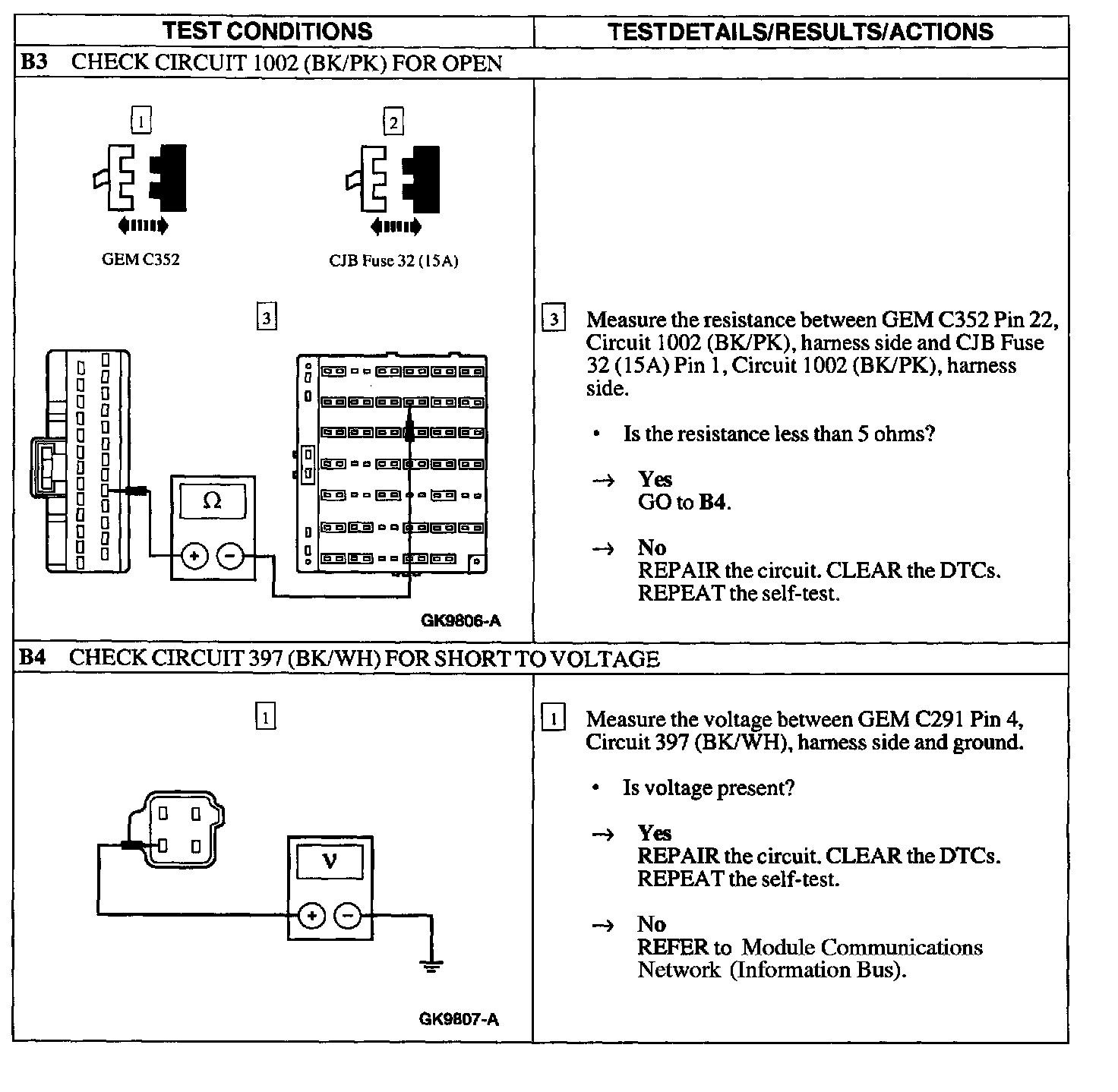

B3 - B4:
