Home >> Ford >> 2000 >> Mustang GT V8-4.6L SOHC VIN X >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Warning Devices >> Test C: A Chime Does Not Operate Correctly - Air Bag

Test C: A Chime Does Not Operate Correctly - Air Bag

C1 - C4:

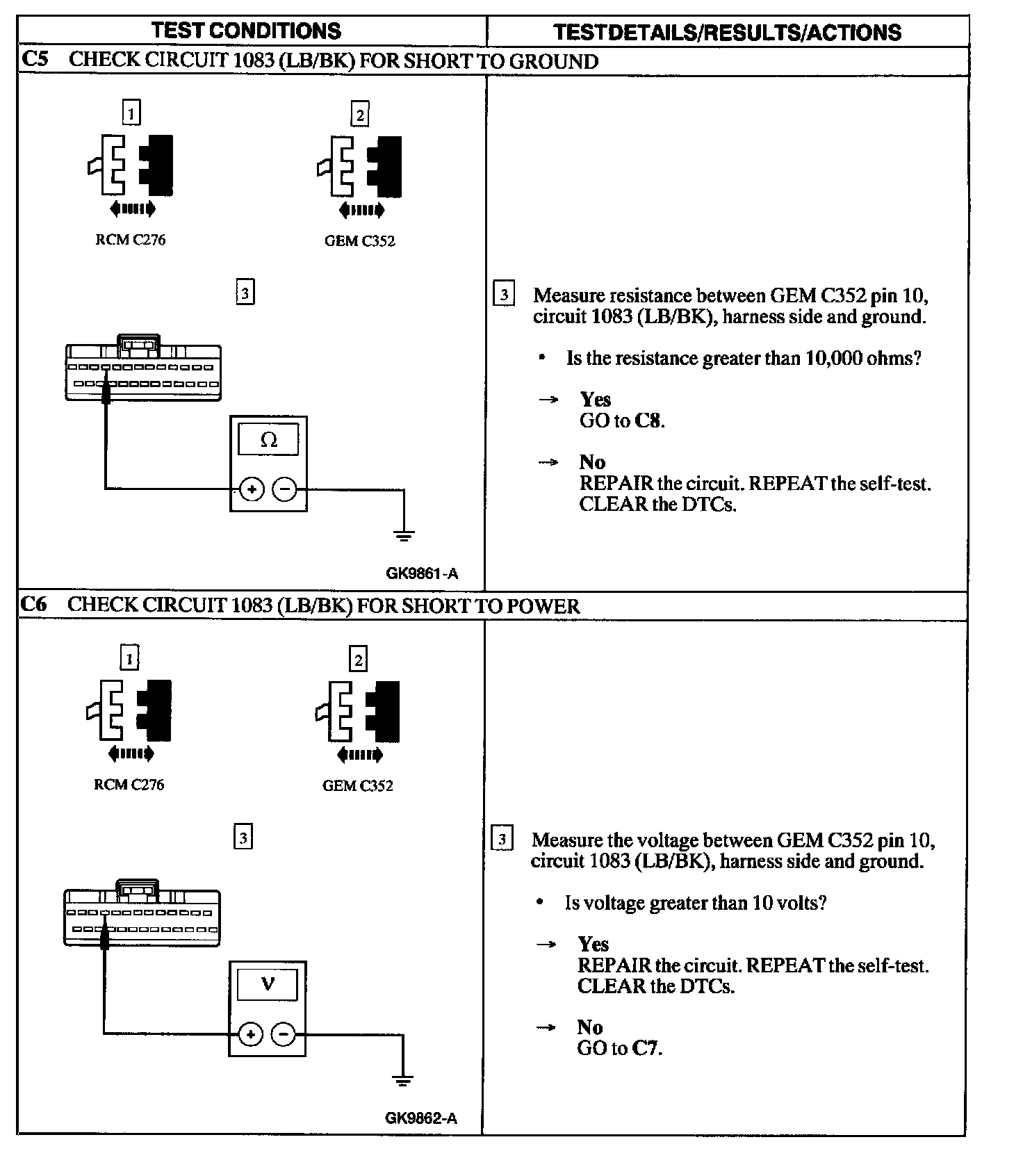

C5 - C6:






C7 - C8:
