Test D: Hiss When Opening Fuel Cap

D1 - D2:






D3 - D4:






D5:






D6:

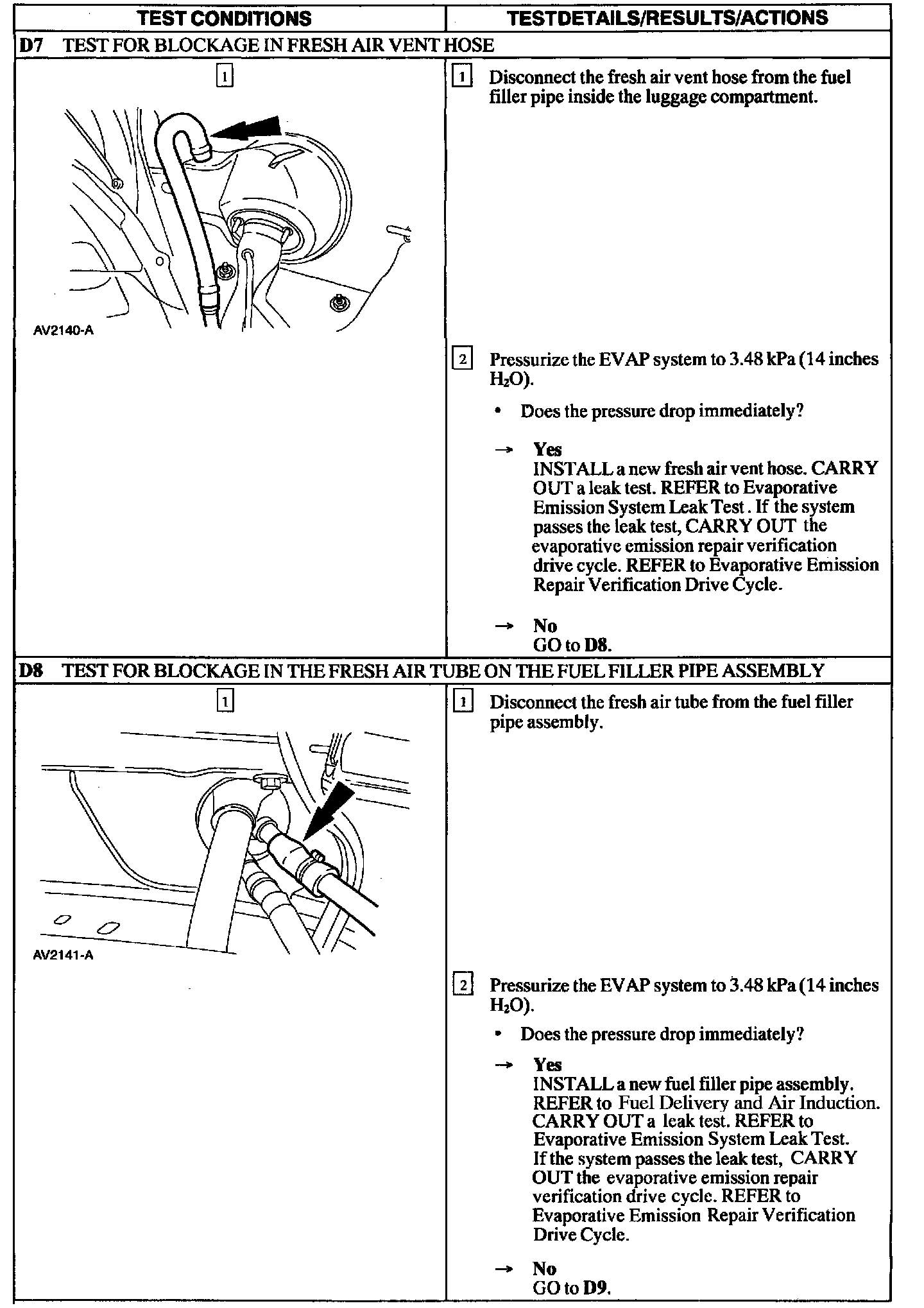

D7 - D8:






D9:






D10:






D11:






D12:






D13:
