Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2000
>>
Mustang GT V8-4.6L SOHC VIN X
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Right Window/Door Lock Control Switch
Right Window/Door Lock Control Switch

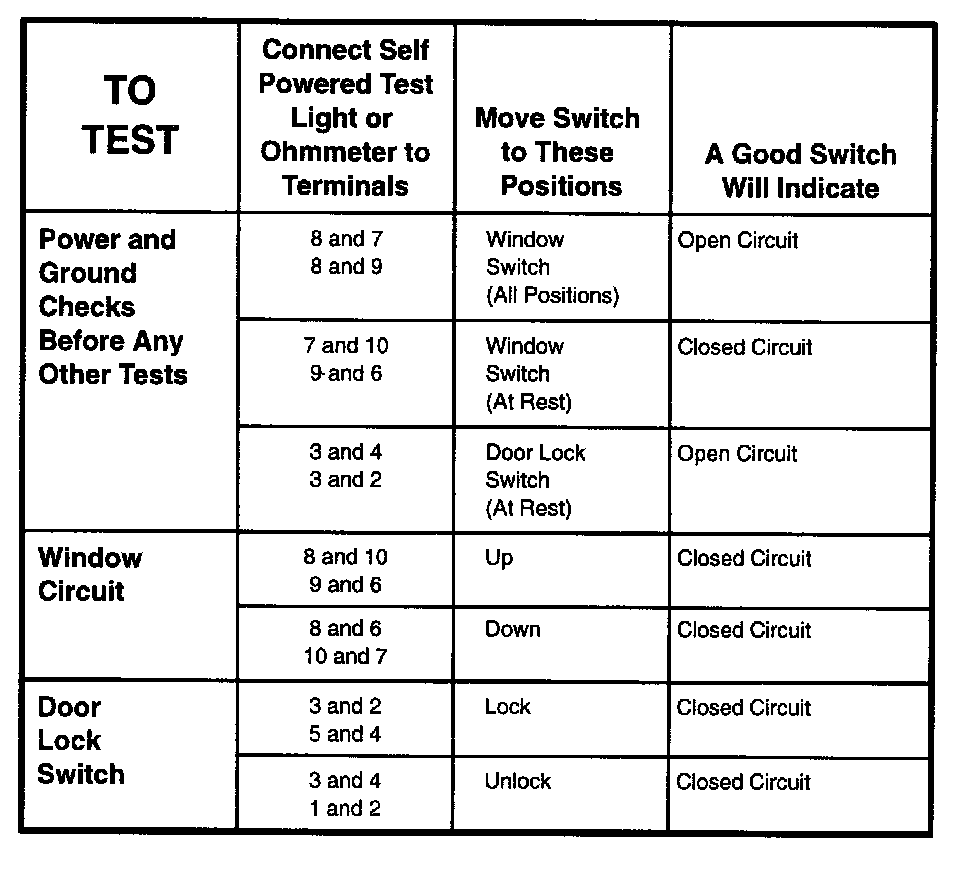

Component Testing Procedure:

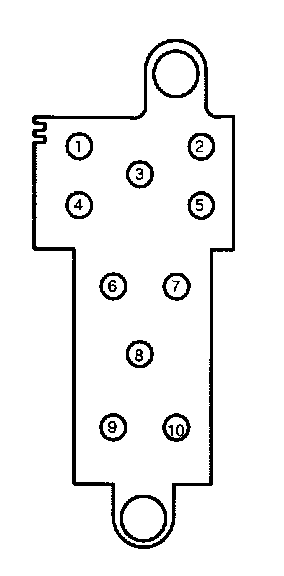

Terminals:

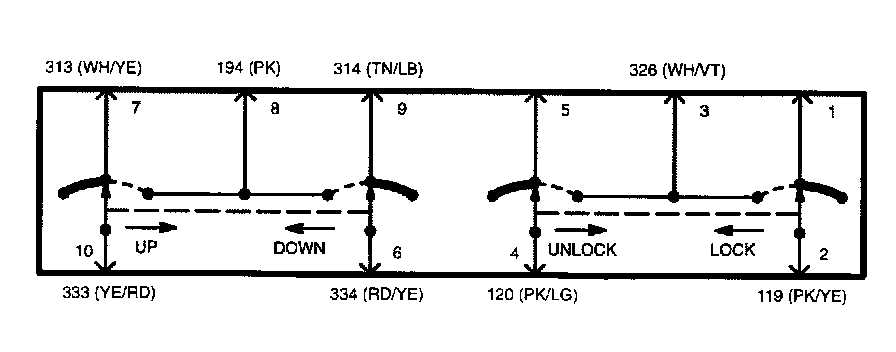

Schematic:
