Power Steering Line/Hose: Service and Repair

Removal
1. Refer to Description and Operation for the hose routing and retention points.

Installation





1. When connecting a fitting with a seal ring, a new seal ring must be installed.

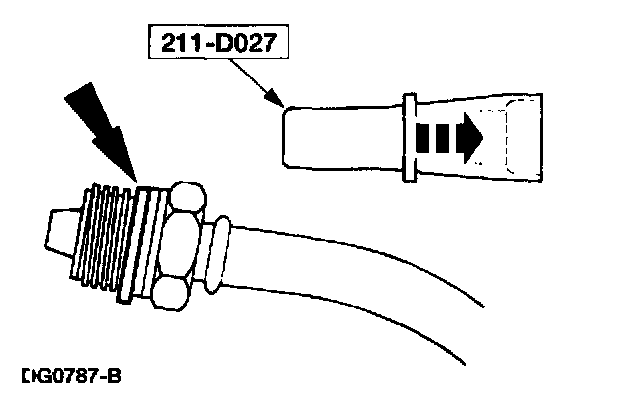

^ The special tool is used to install the return line connector seal and the pressure line connector seal.
2. Fill and leak check the system.
