EGR Valve: Service and Repair

REMOVAL

NOTE: The 4.6L, 4V is shown. The 3.8L and the 4.6L, 2V are similar.

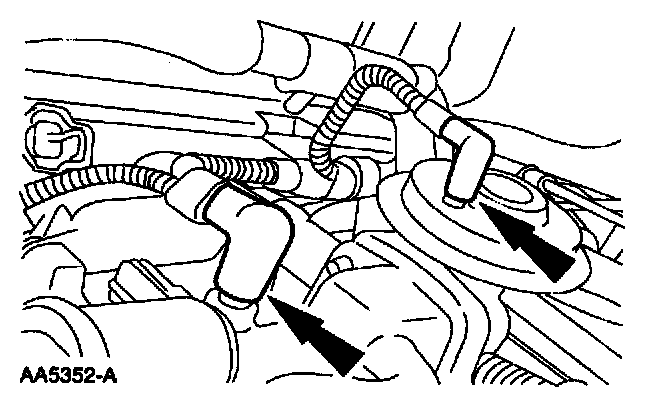

1. Disconnect the vacuum hose.

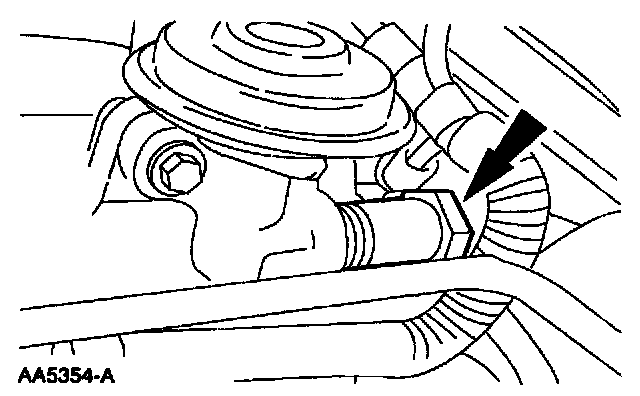

2. Disconnect the Exhaust Gas Recirculation (EGR) tube from the EGR valve.

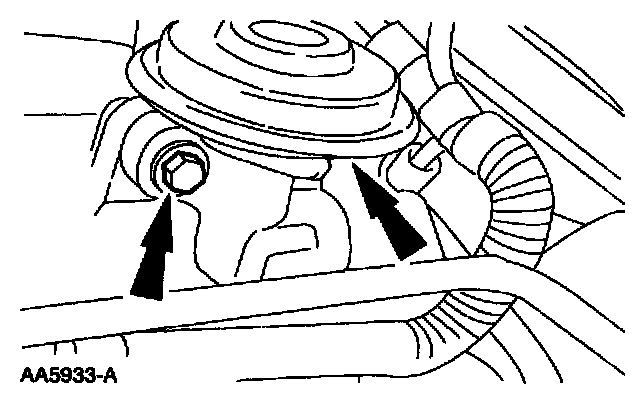

3. Remove two bolts, the EGR valve and gasket.

INSTALLATION

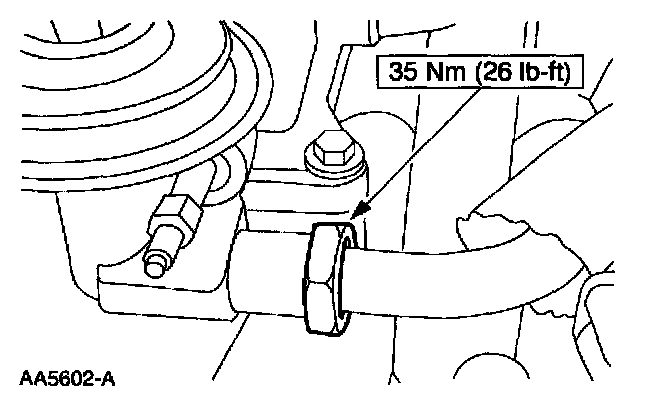

1. To install, reverse the removal procedure.

NOTE:
^ Install a new gasket.
^ The 4.6L, 4V is shown. The 3.8L and the 4.6L, 2V are similar.
