Engine General Specifications

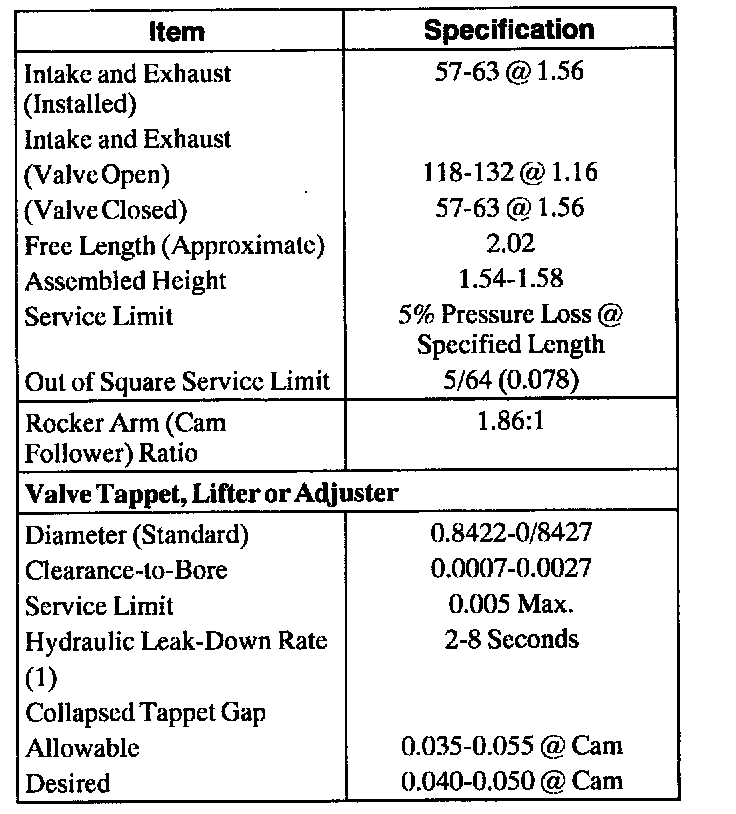

1 of 8

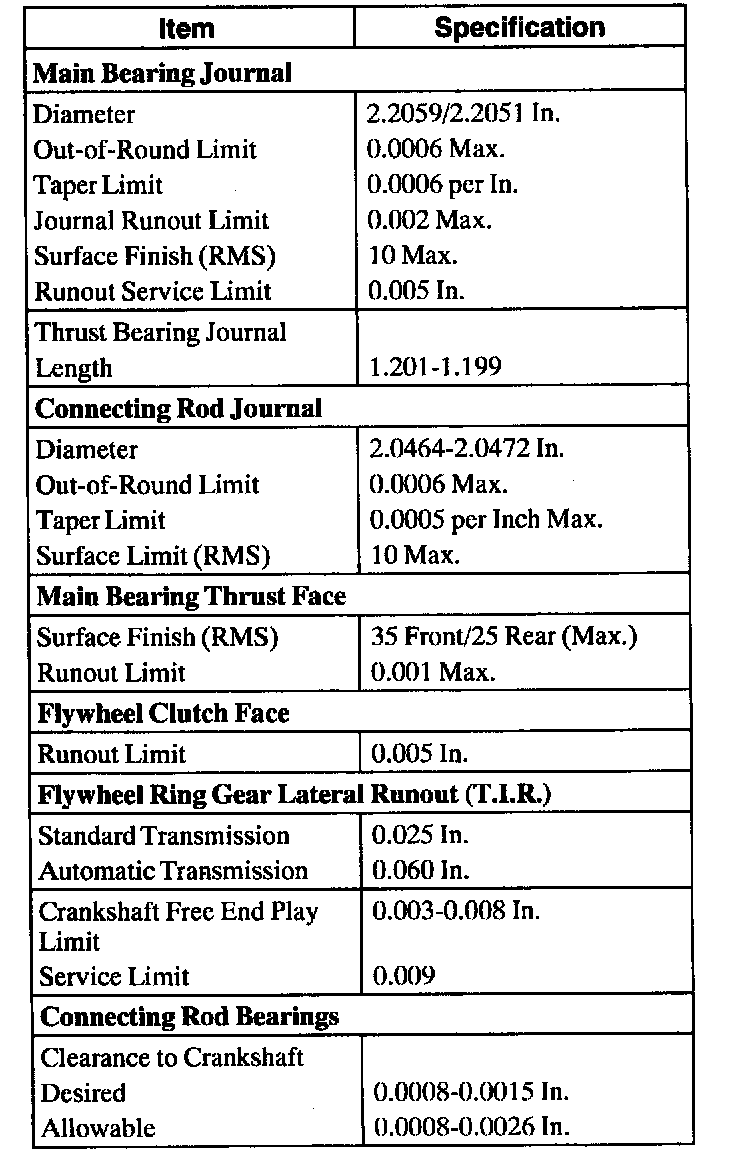

2 of 8

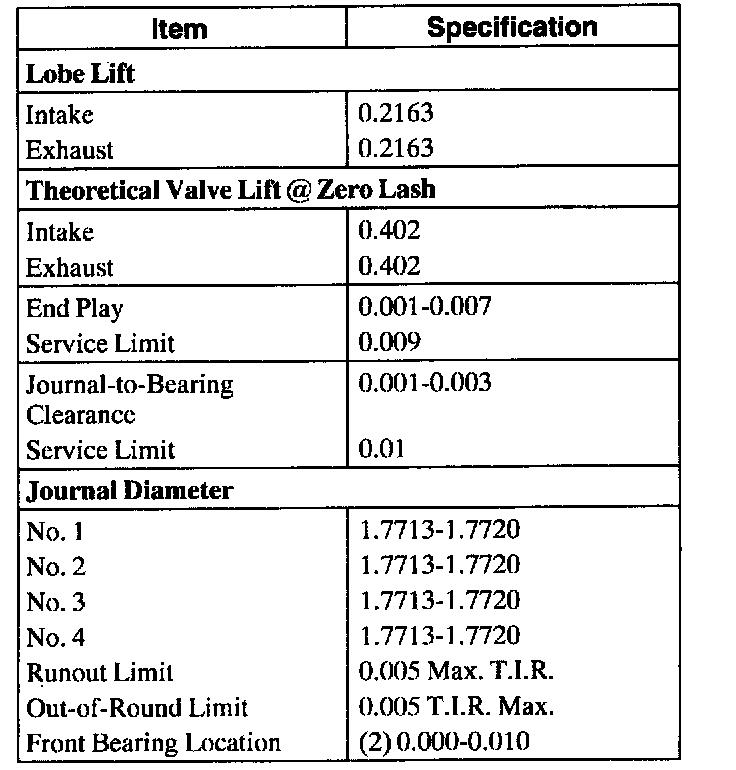

3 of 8

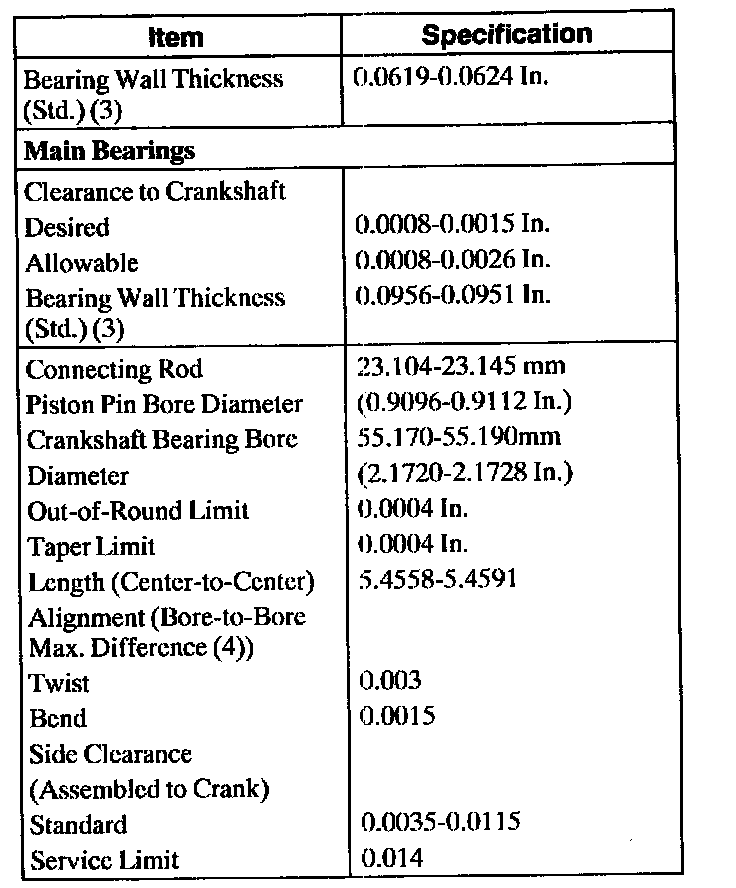

4 of 8





5 of 8





6 of 8





7 of 8





8 of 8

a. Measure on skirt 40mm (1.57 in) down from face of piston dome.
b. Use bore measurement perpendicular to crank centerline.
