Driver Side

REMOVAL
1. Remove the LH instrument panel finish panel; refer to Dash Board.

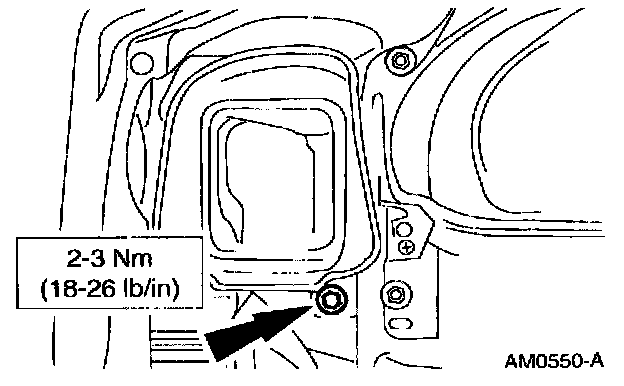

2. Remove the two screws and remove the LH instrument panel register duct.

INSTALLATION







1. Follow the removal procedure in reverse order.
