Coil Bracket

REMOVAL

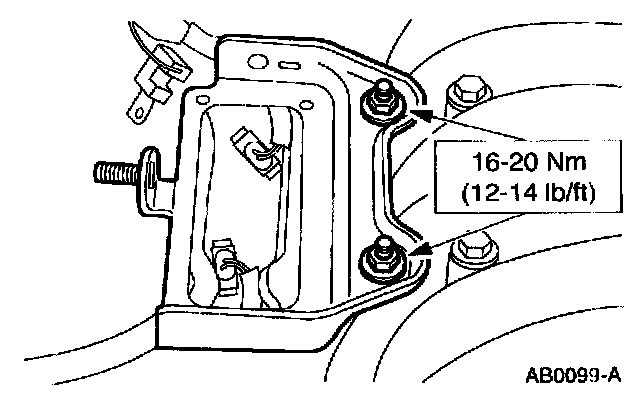

1. Remove the ignition Coil from the bracket. For additional information, refer to Coil-Pack.

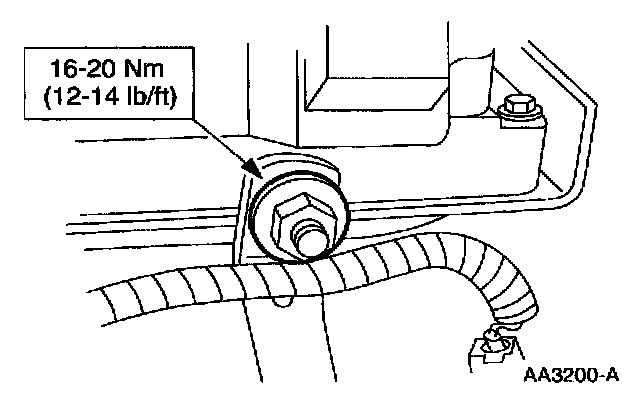

2. Remove the nut.

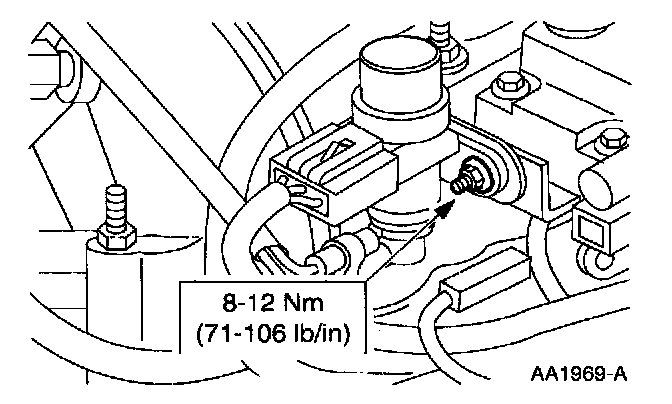

3. Remove the nut and position the EGR vacuum regulator solenoid out of the way.

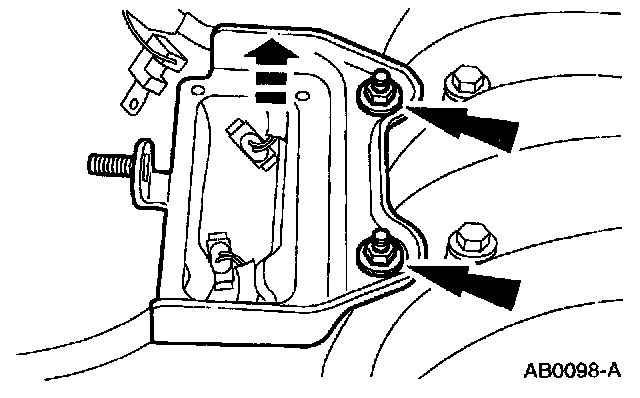

4. Remove the nuts and remove the ignition coil mounting bracket from the upper intake manifold.

INSTALLATION

















1. Follow the removal procedure in reverse order.
