Home >> Ford >> 2000 >> Ranger 2WD V6-3.0L VIN U >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Rear Suspension

Rear Suspension

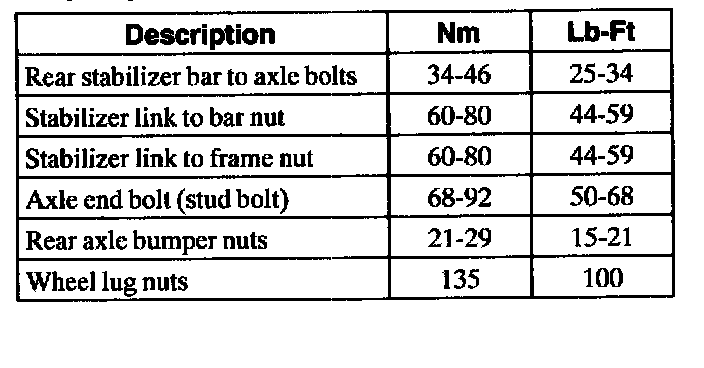

1 Of 2:

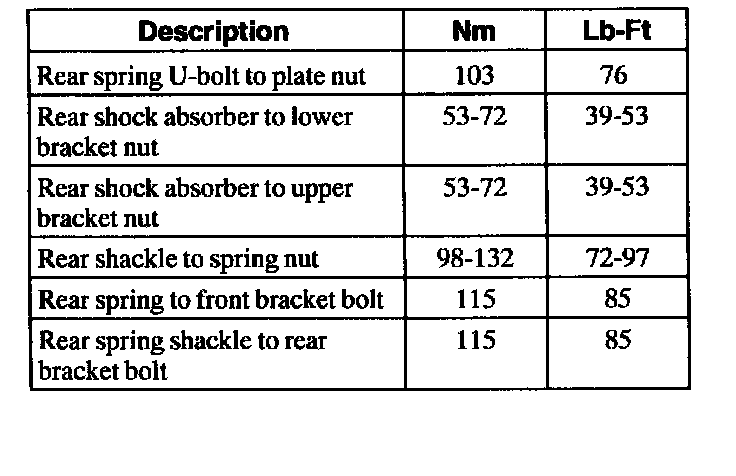

2 Of 2:





Torque Specifications
