Test T: An Indicator Is Inoperative - Red Brake Warning
Test T: An Indicator Is Inoperative - Red Brake Warning
T1 - T2:

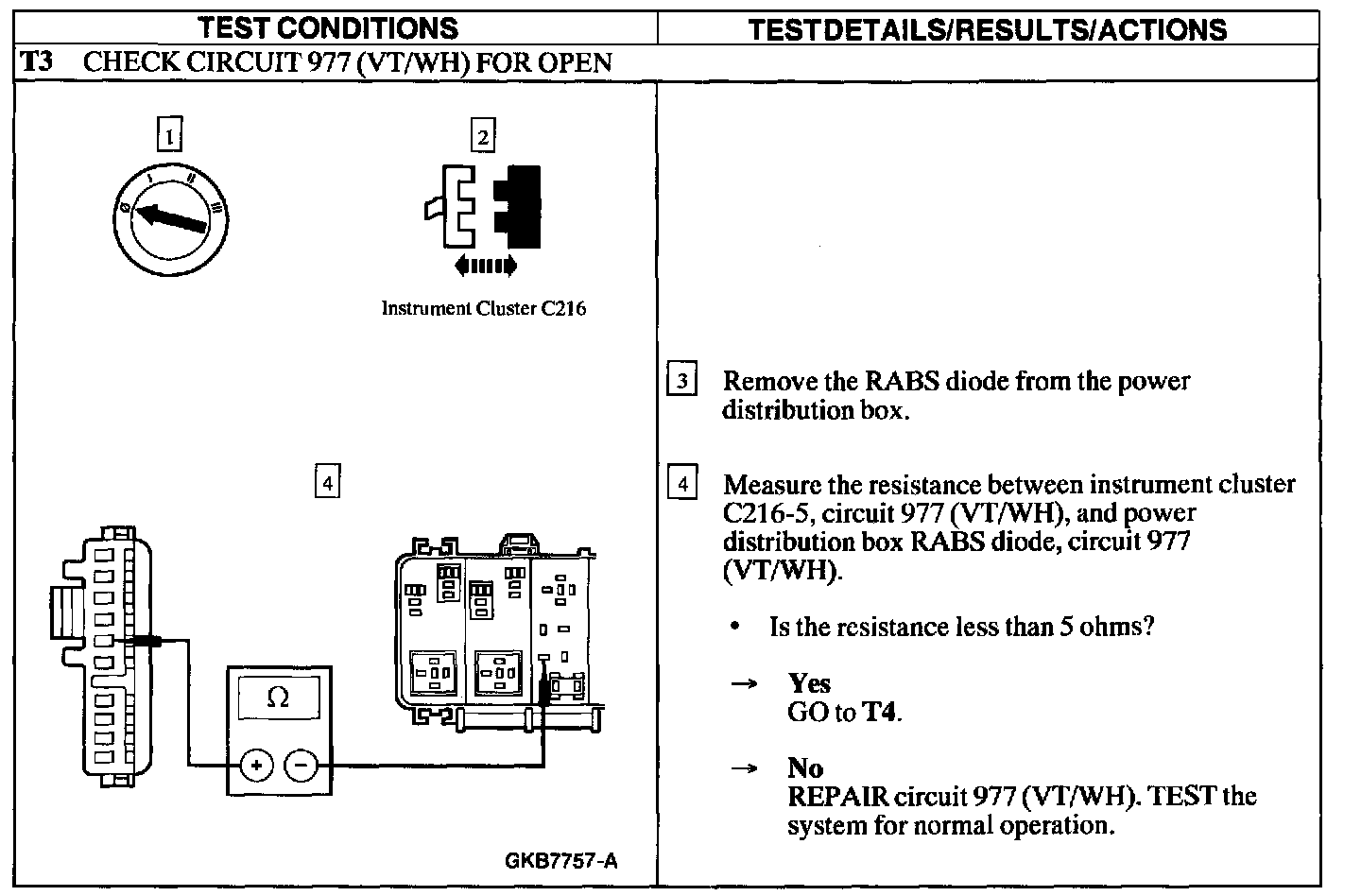

T3:
T4 - T5:

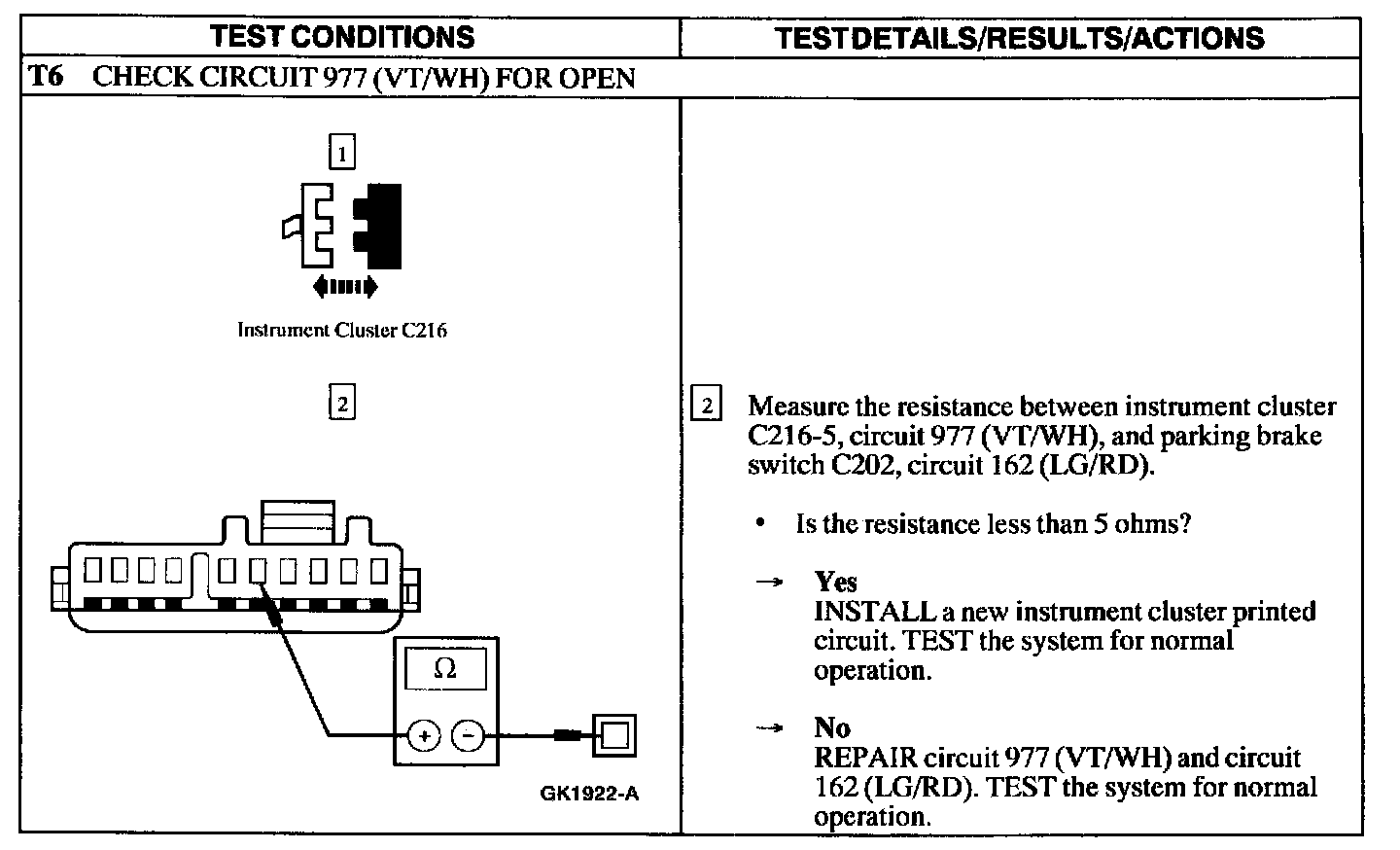

T6:
