Window Track: Service and Repair

Heavy Duty Riverter:

SPECIAL SERVICE TOOL(s)

REMOVAL
1. Remove the Front Door Window Glass; refer to Window Glass-Front Door.

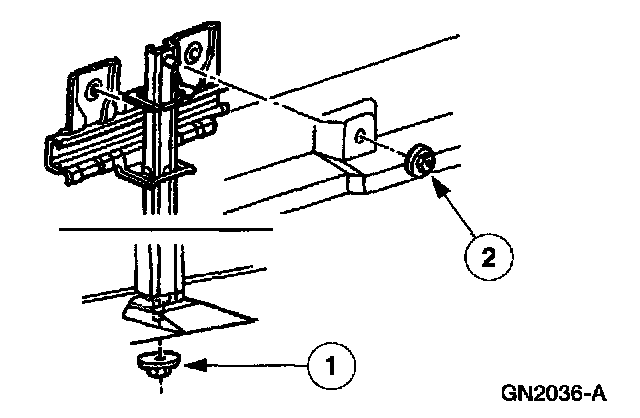

2. Remove the door glass center run retainer nuts.
1 Remove the bottom nut.
2 Remove the top nut.







3. Remove the door glass center run retainer.

INSTALLATION







1. To install, reverse the removal procedure.
^ Use Heavy Duty Riveter to install the new rivets.
