Connector Locations

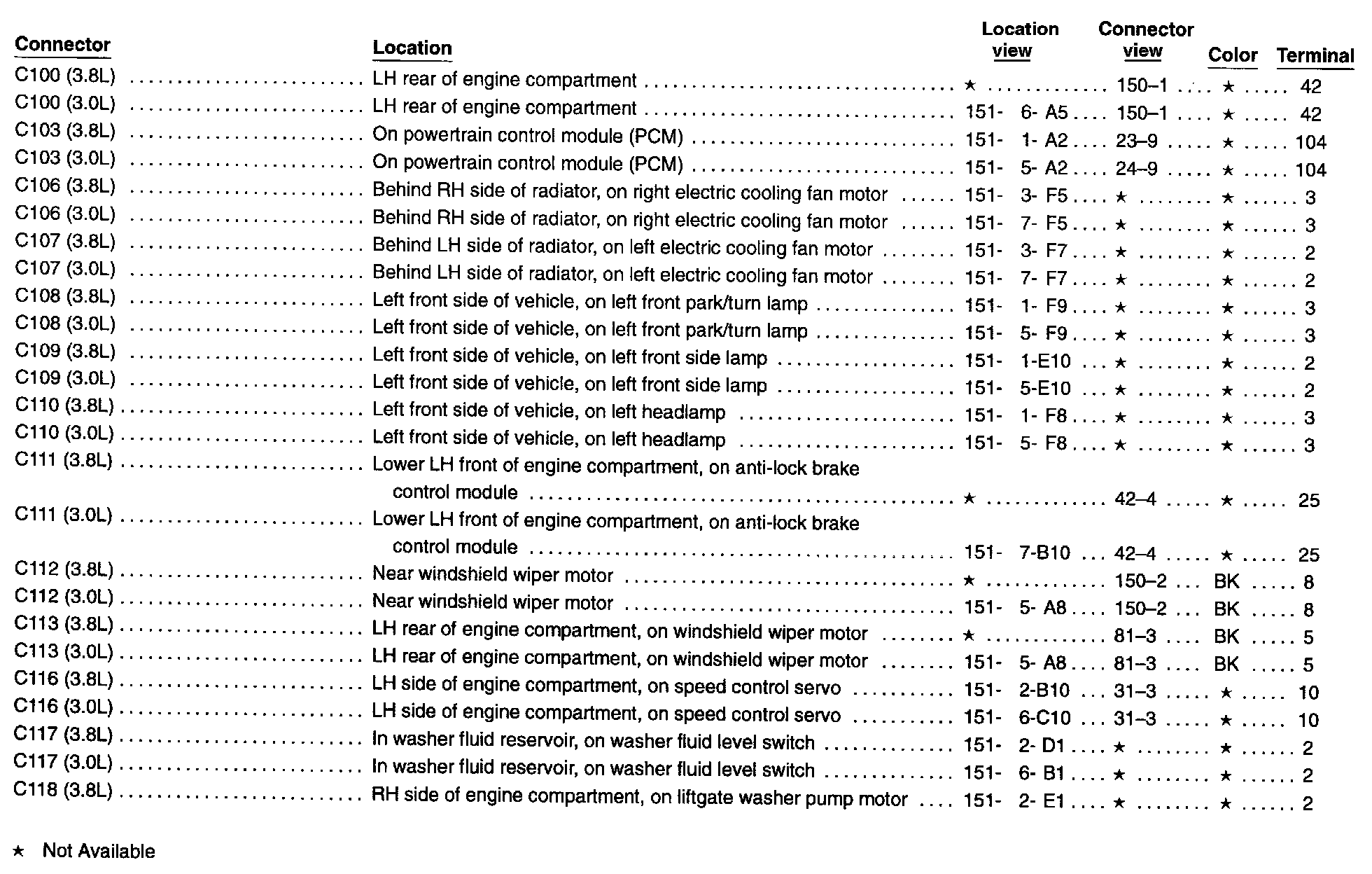

C100-C118:

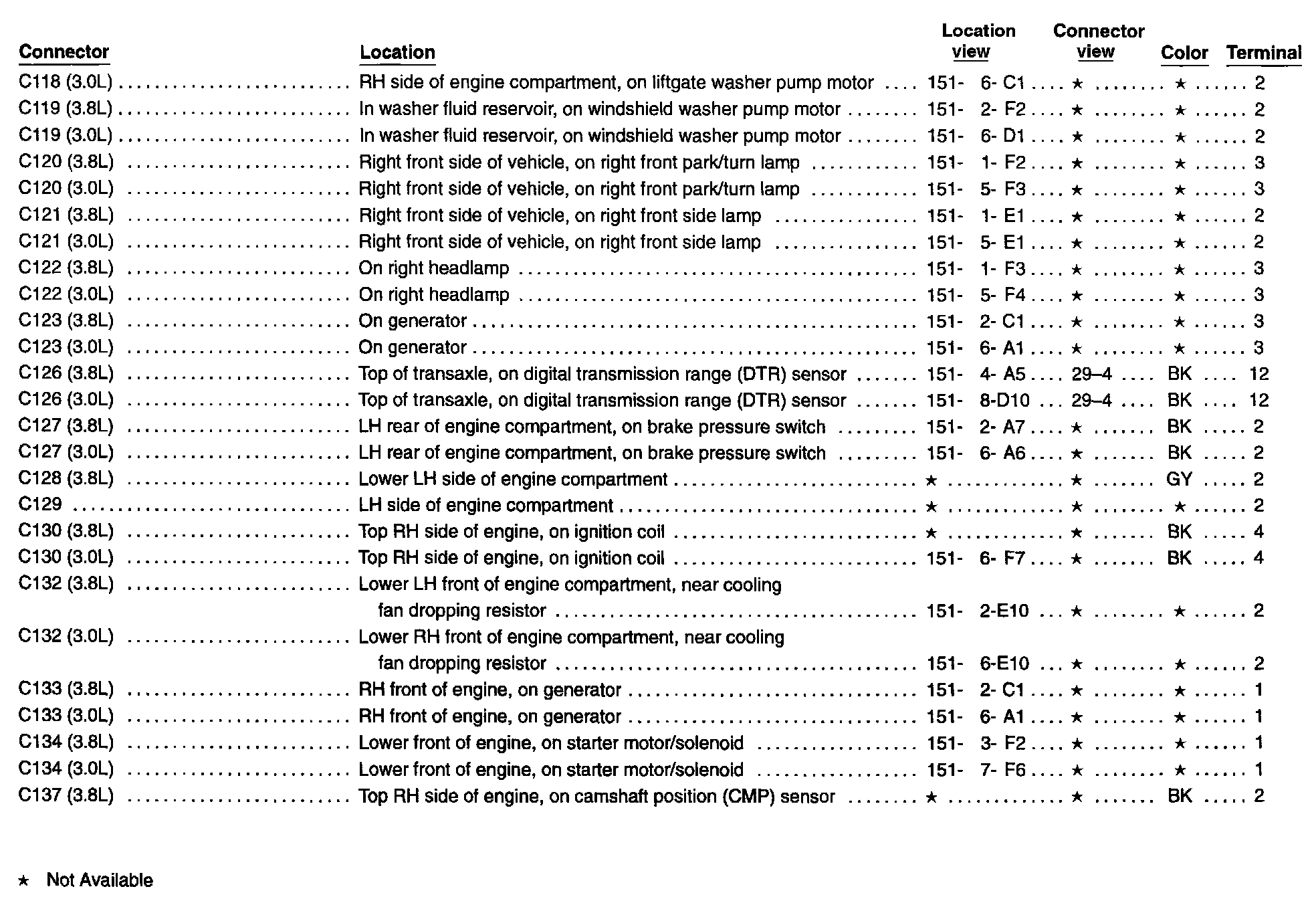

C118-C137:

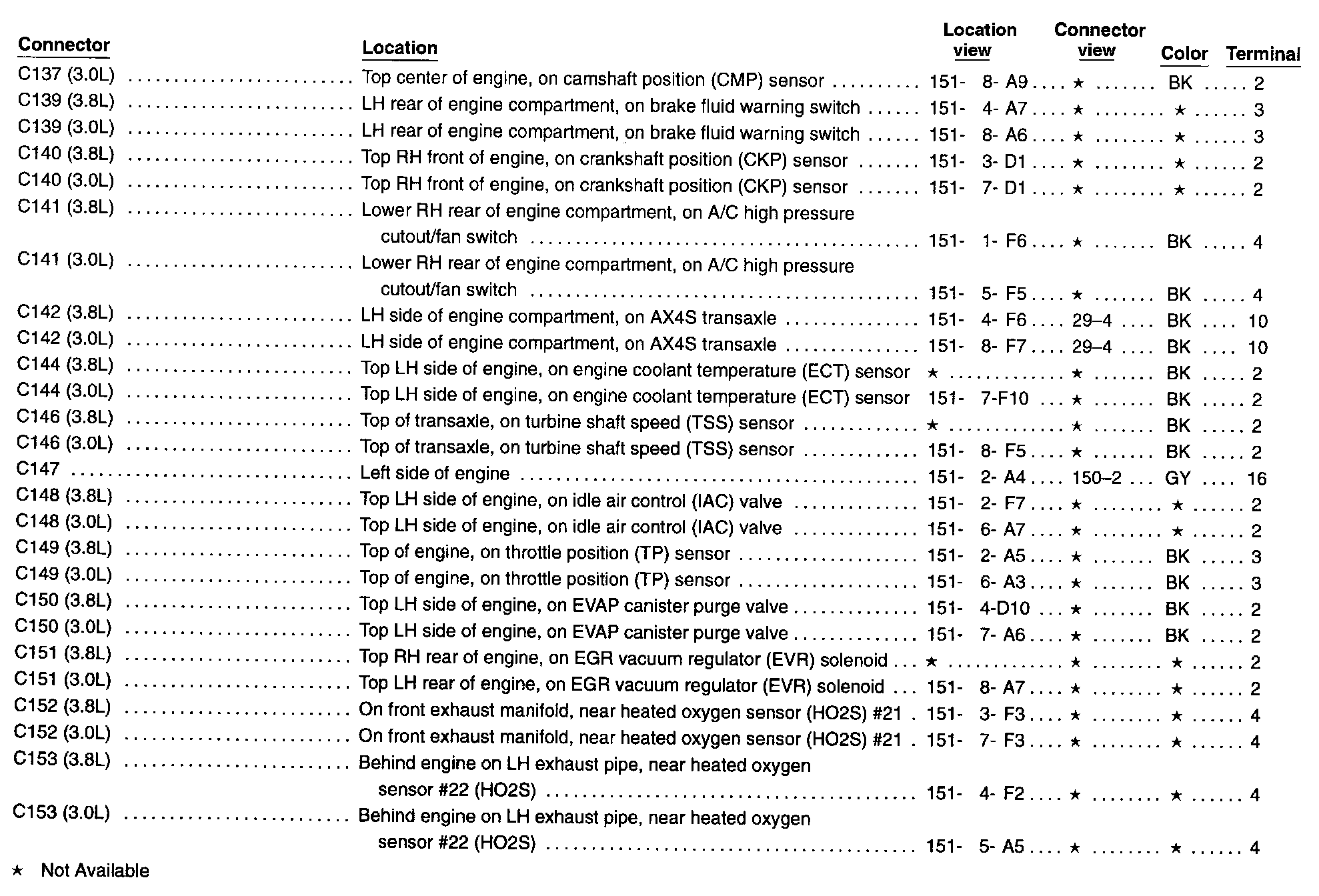

C137-C153:

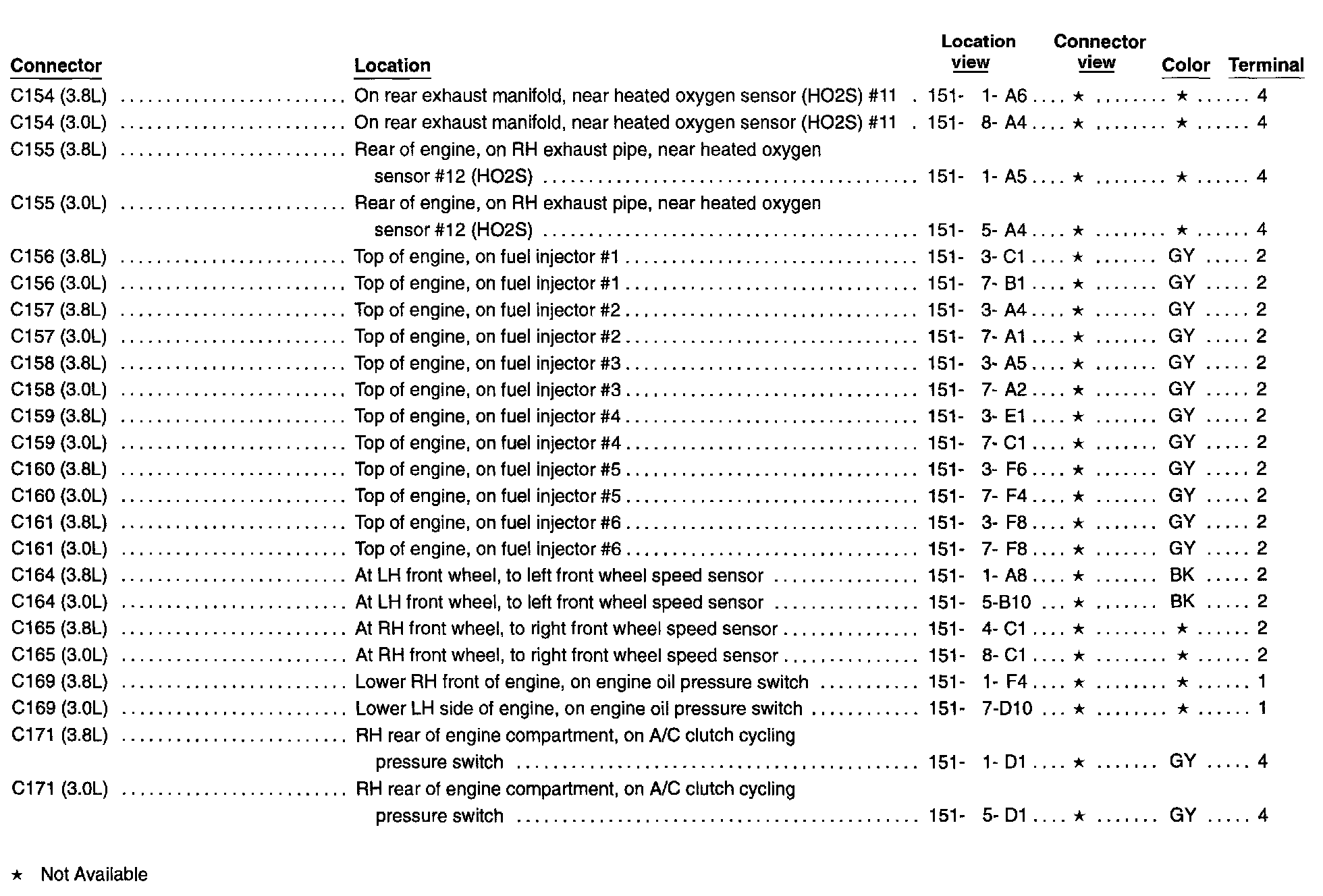

C154-C171:

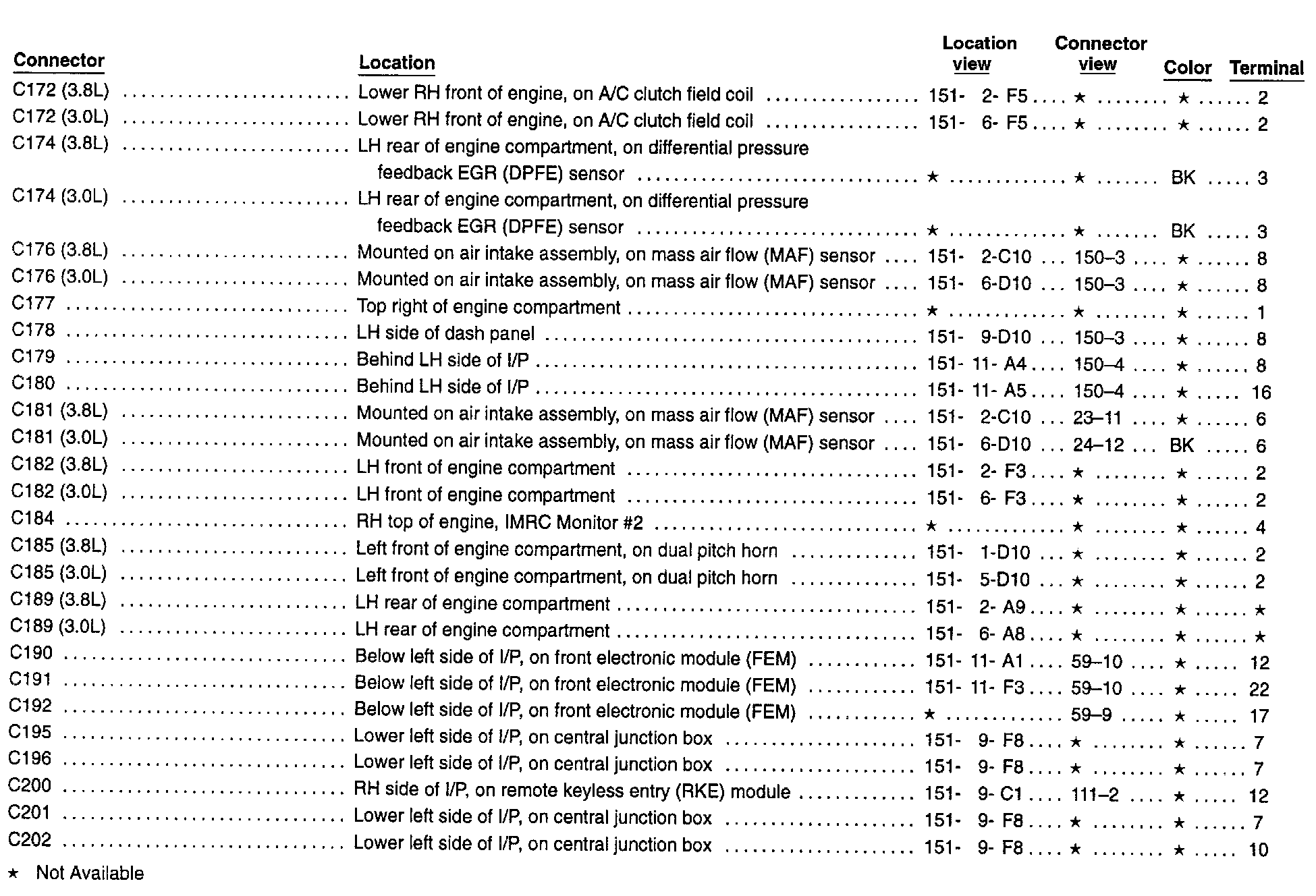

C172-C202:

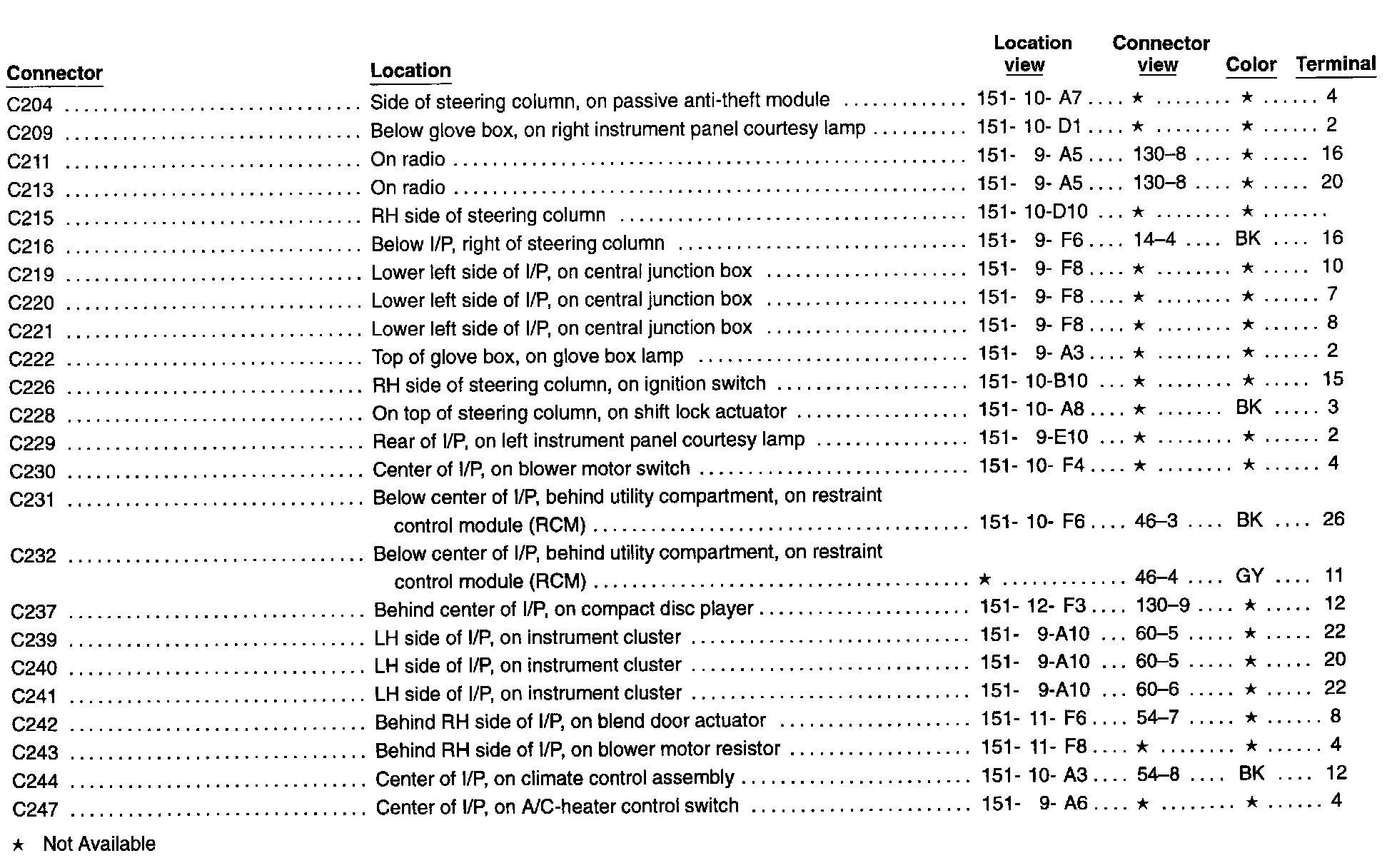

C204-C247:

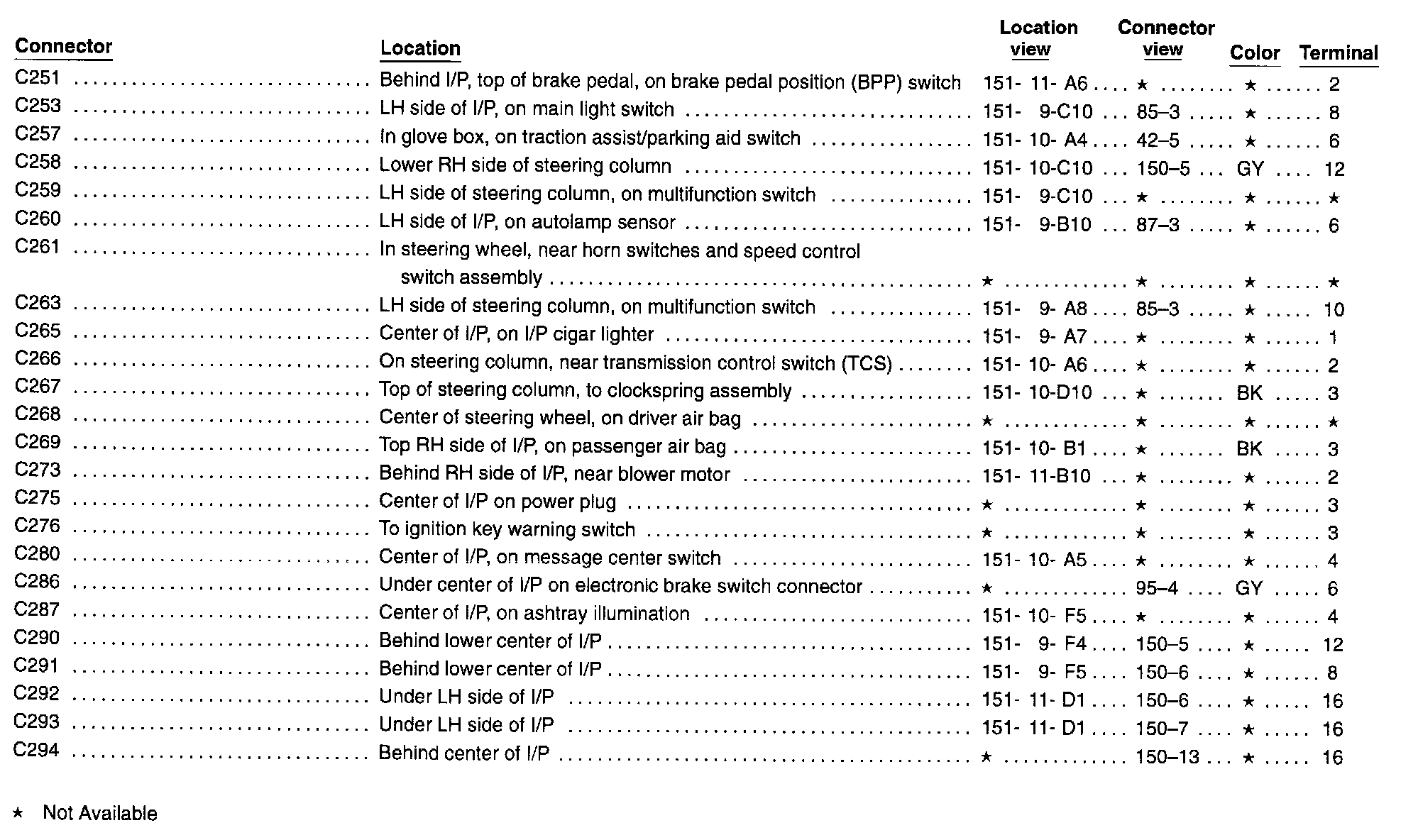

C251-C294:

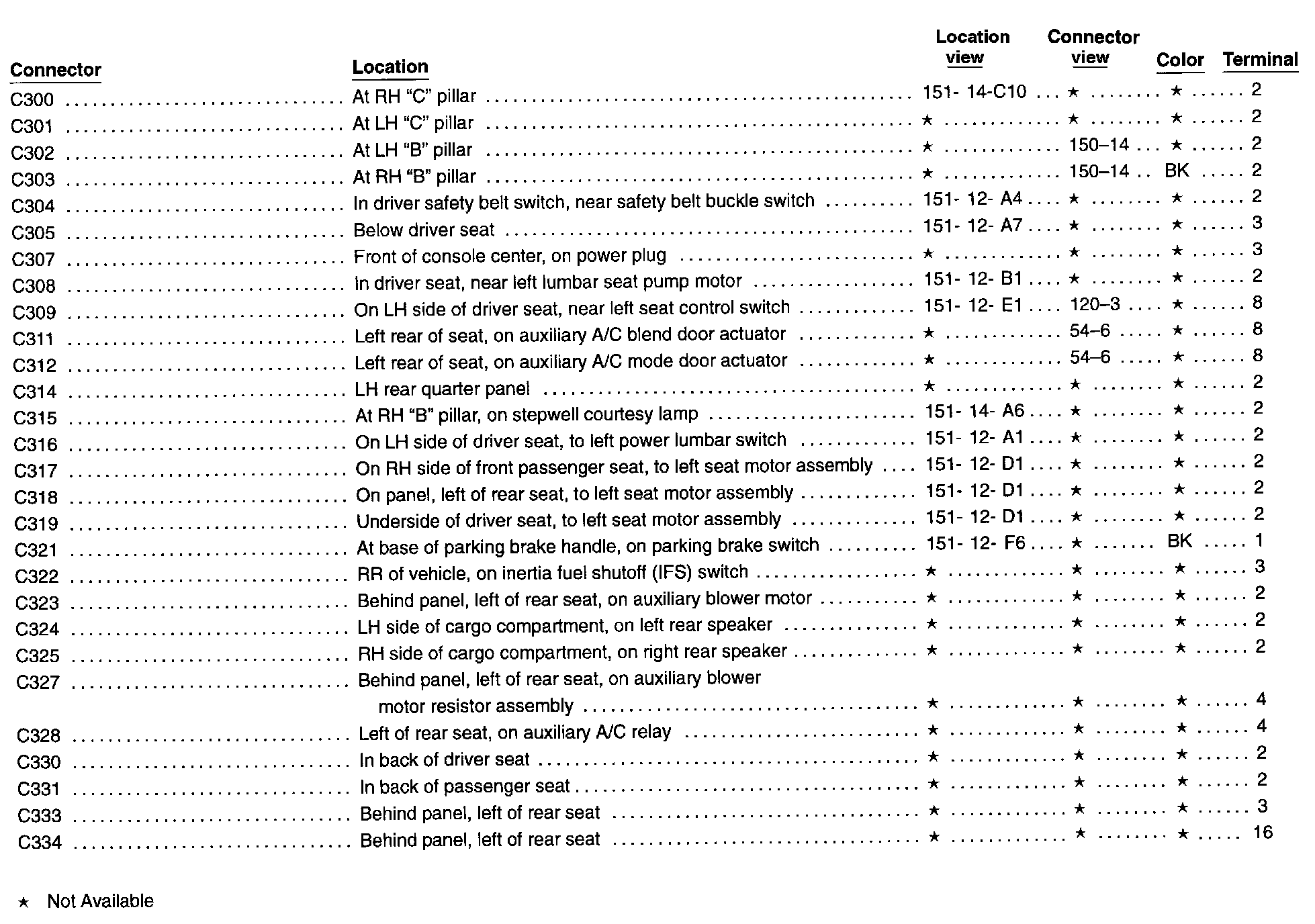

C300-C334:

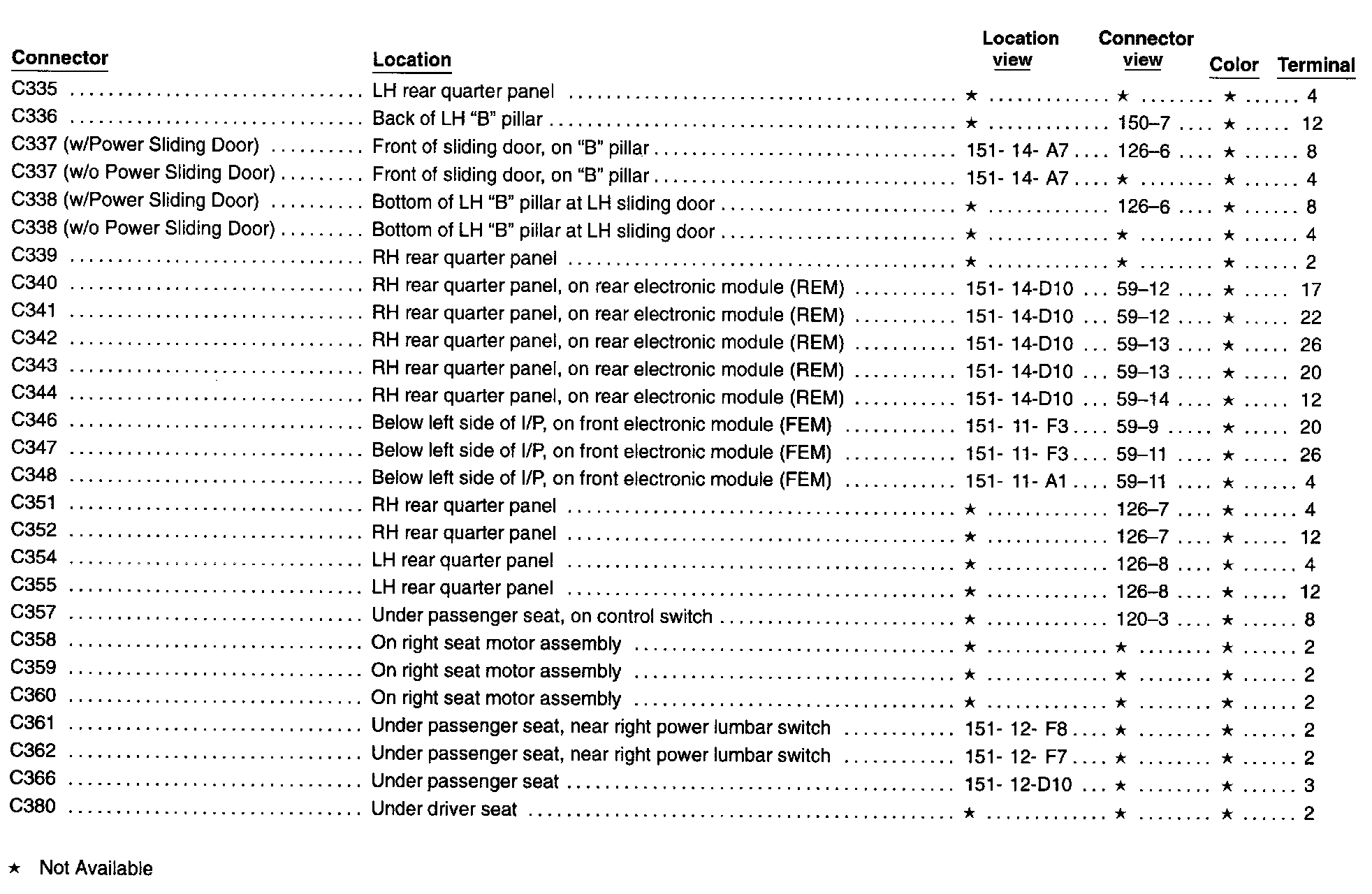

C335-C380:

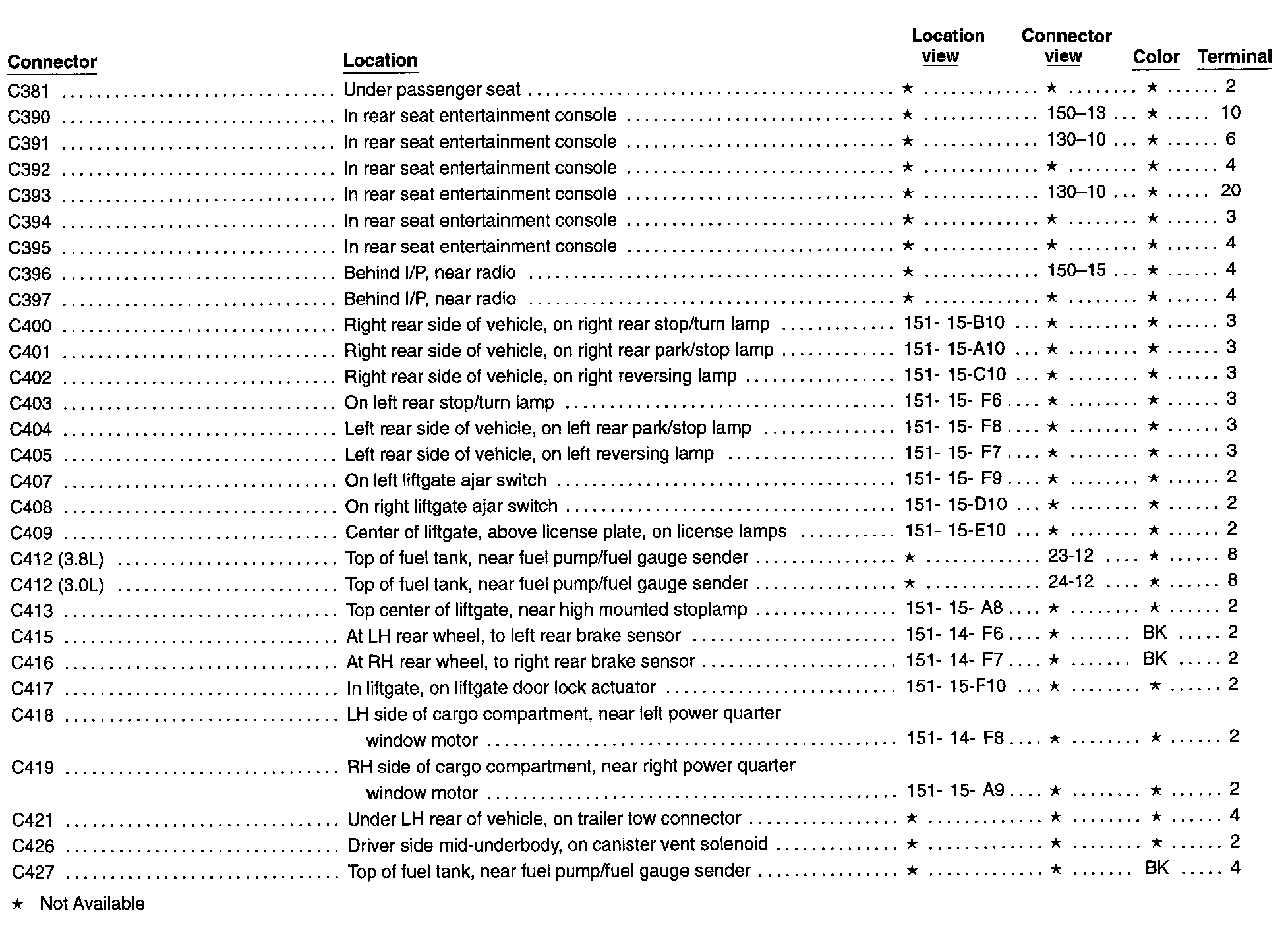

C381-C427:

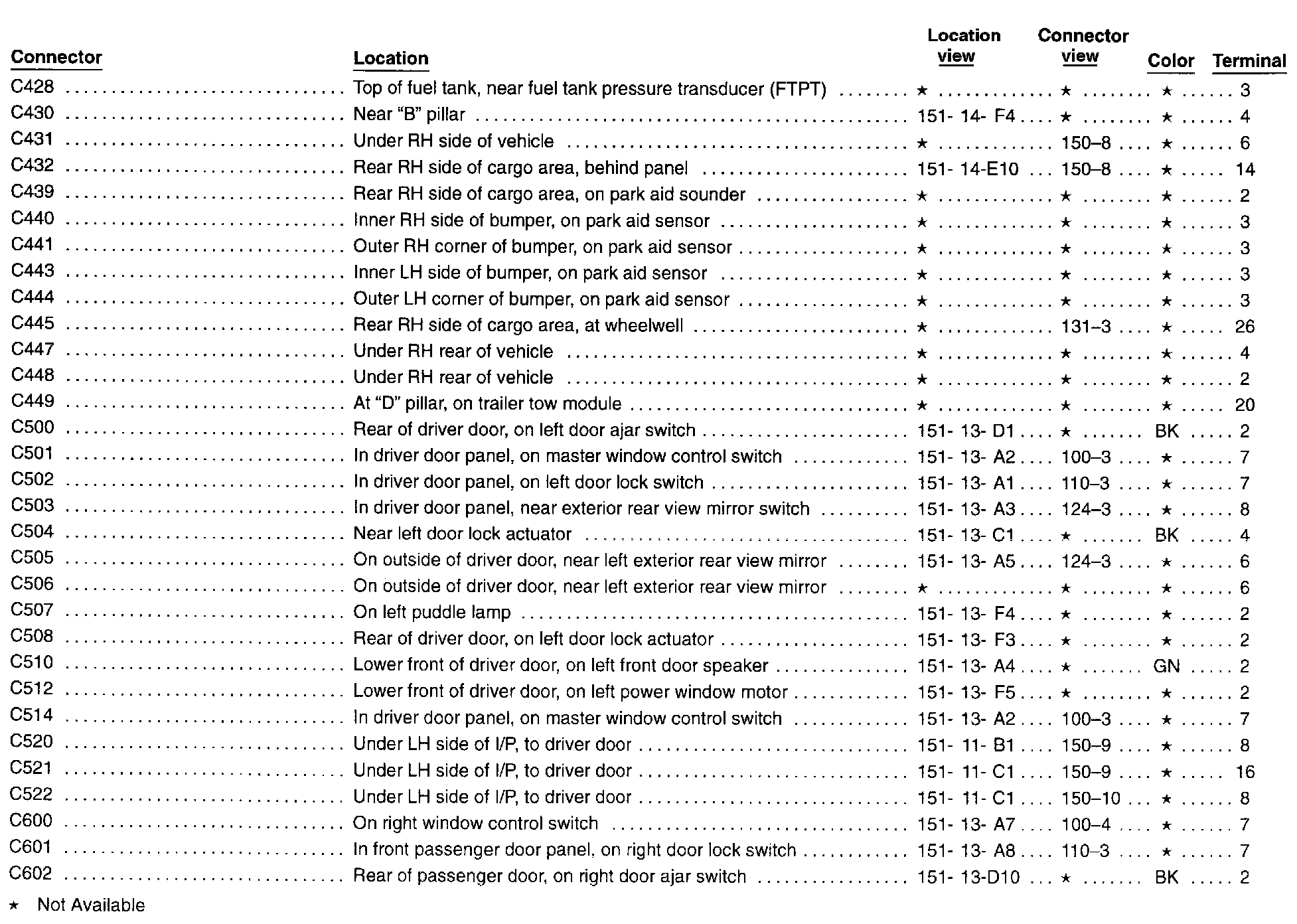

C428-C602:

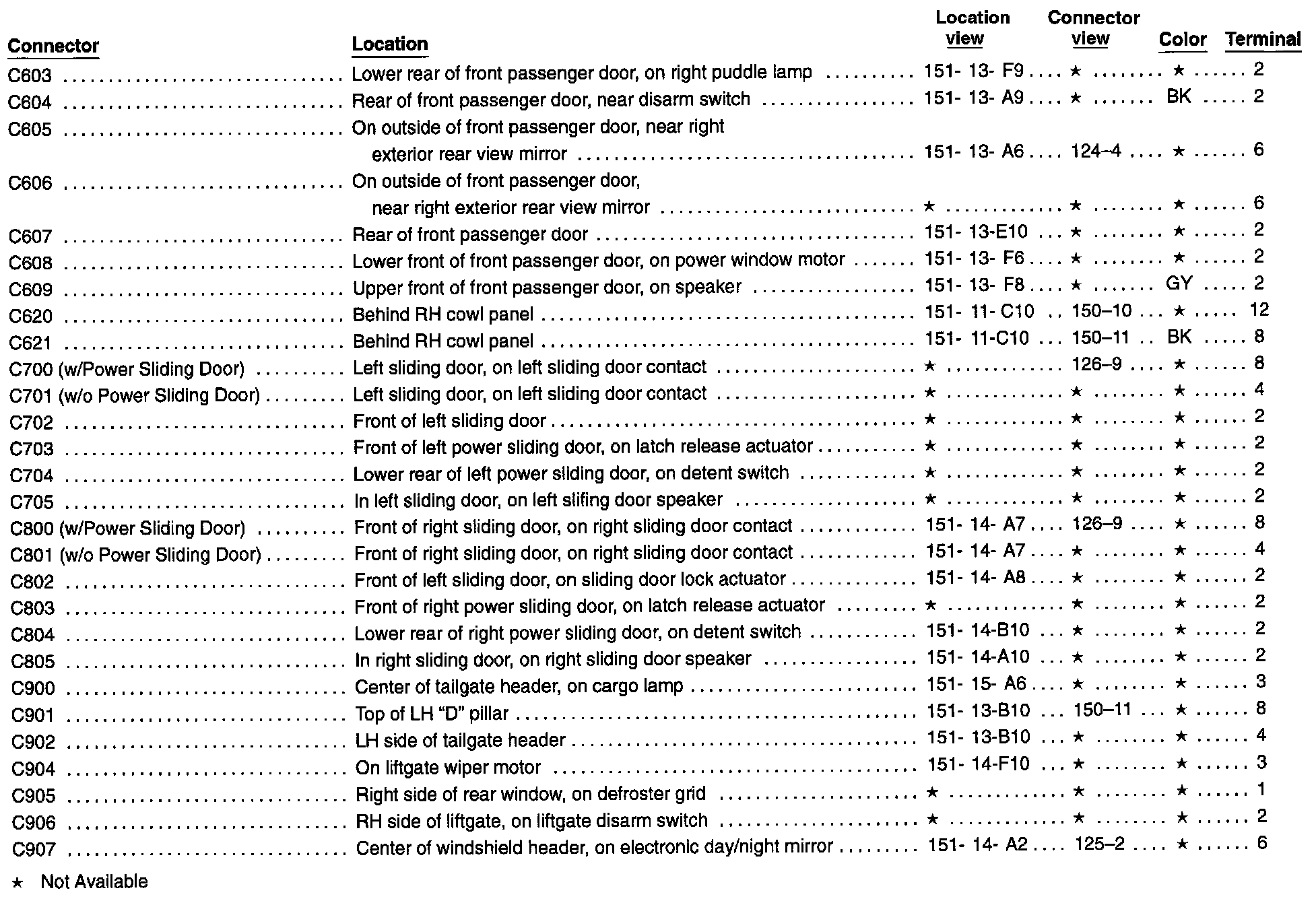

C603-C907:

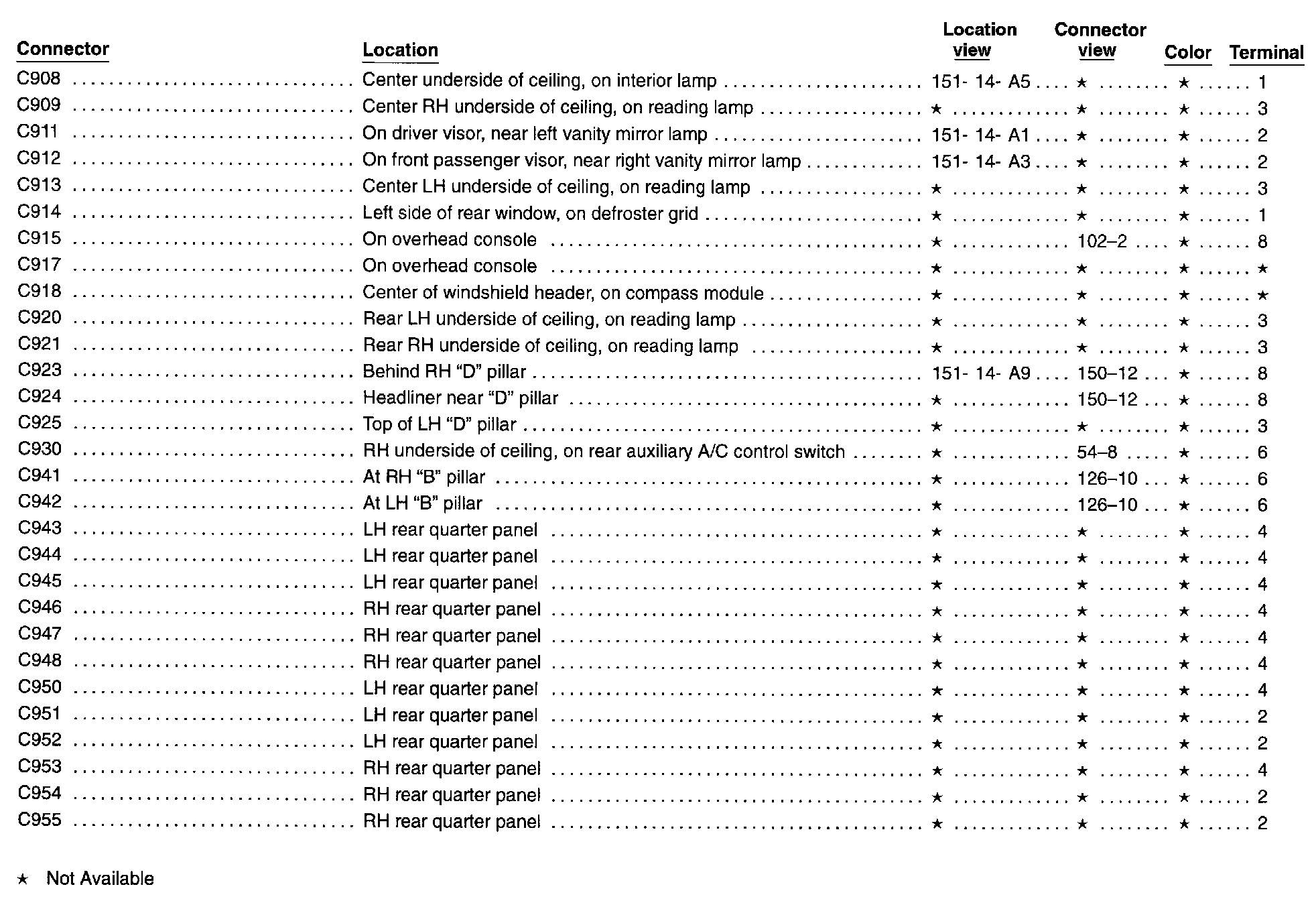

C908-C955:
