Coil Bracket

REMOVAL
1. Remove the ignition coil from the bracket. For additional information, refer to Ignition Coil.

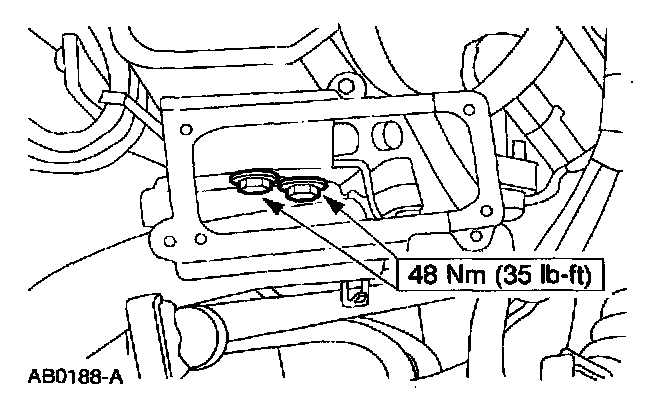

2. Remove the ignition coil mounting bracket.
- Remove the bolts.

INSTALLATION







1. To install, reverse the removal procedure.
