Fluid Line/Hose: Service and Repair

Removal
1. Raise the vehicle on a hoist.

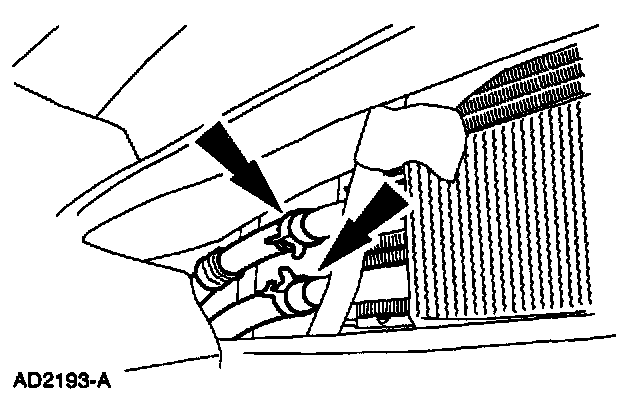

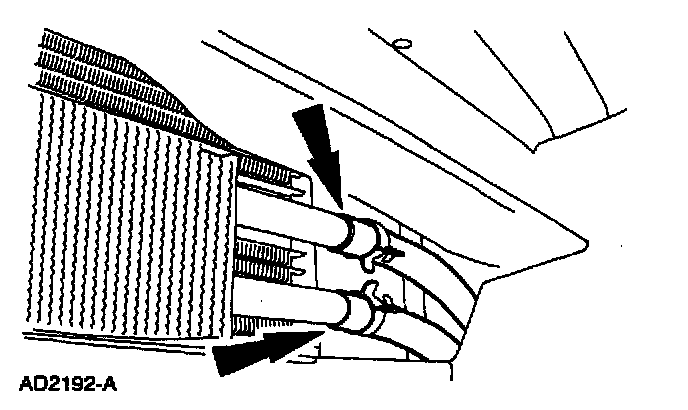

2. Remove the retaining clips.

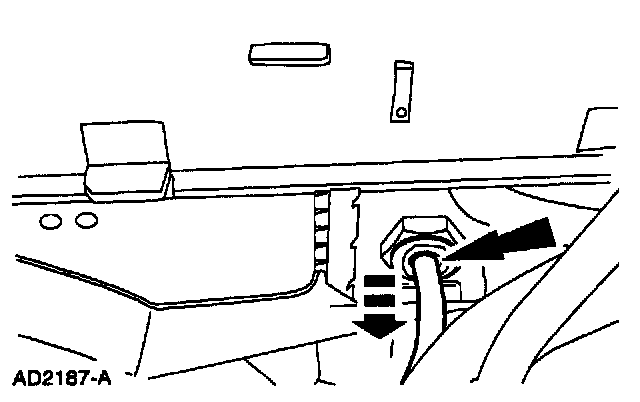

3. Remove the fluid cooler tubes.
- Push in slightly on the fluid cooler tube.
- Squeeze the retaining clip.
- Remove the fluid cooler tube.

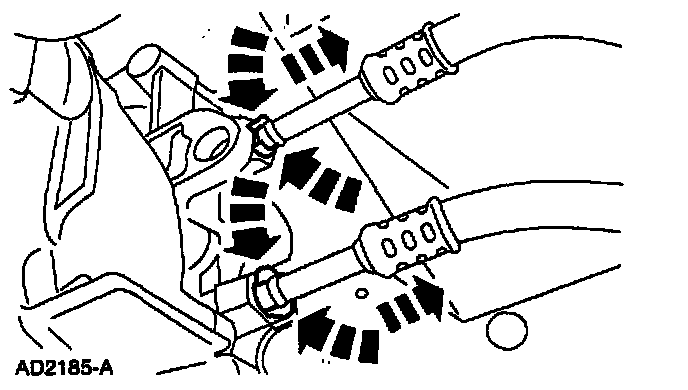

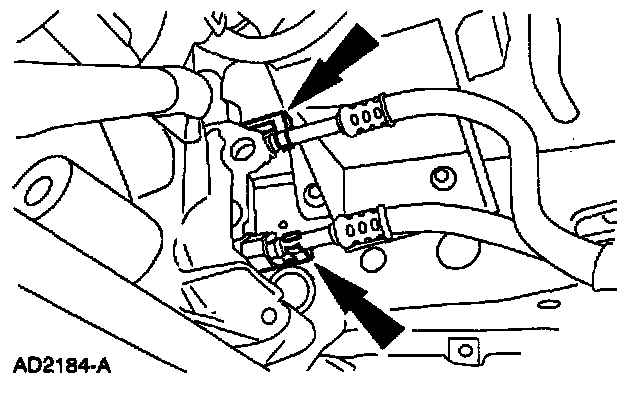

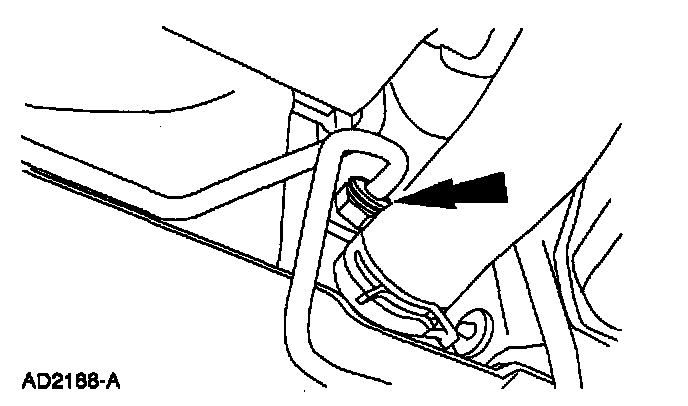

4. Disconnect the transaxle fluid cooler tube.

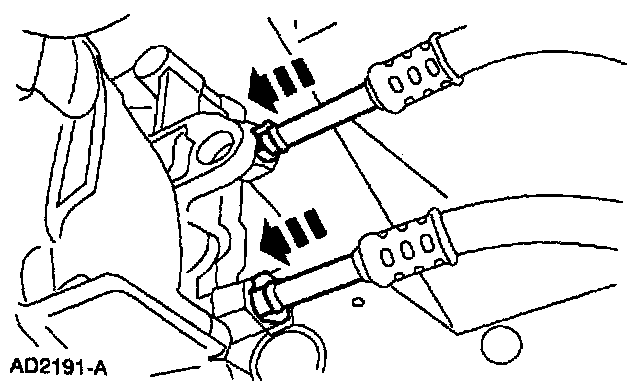

5. Disconnect the transaxle fluid cooler tube.

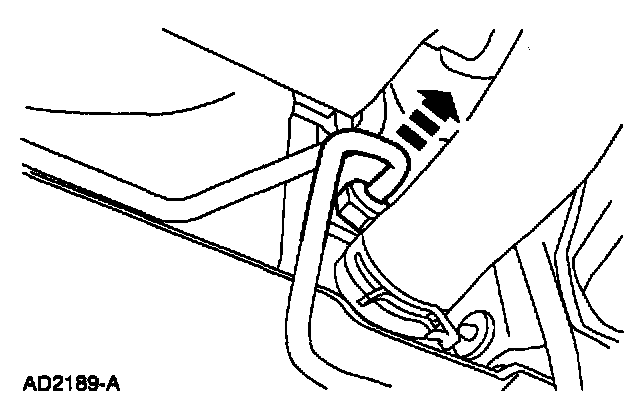

6. Remove the retaining clip

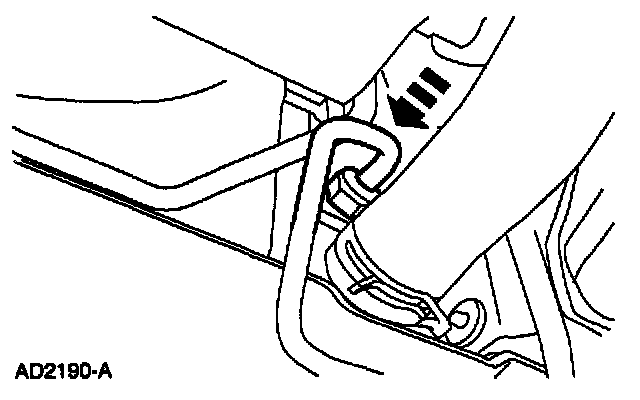

7. Disconnect the fluid cooler tube.

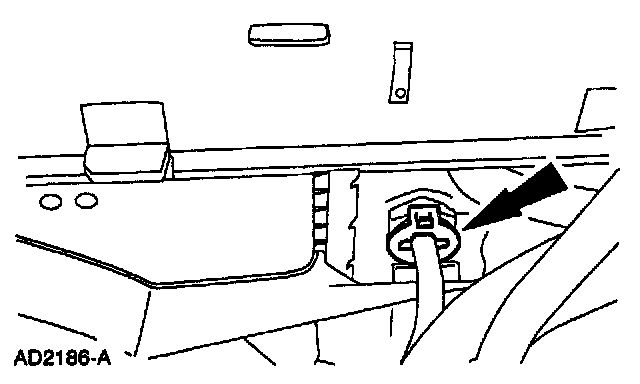

8. Remove the retaining clip.





9. Remove the fluid cooler tube.

Installation





1. Install the fluid cooler tube.





2. Install the retaining clip.





3. Install the fluid cooler tube.





4. Install the retaining clip.





5. Install the fluid cooler tube, Pull out gently to make sure the tube is seated.





6. Install the retaining clip.
7. Lower the vehicle.
8. Fill the transaxle with the specified fluid.
