Home >> Ford >> 2000 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Pinpoint Tests >> Test C: No Communication With the Module - Remote Keyless Entry (RKE)

Test C: No Communication With the Module - Remote Keyless Entry (RKE)

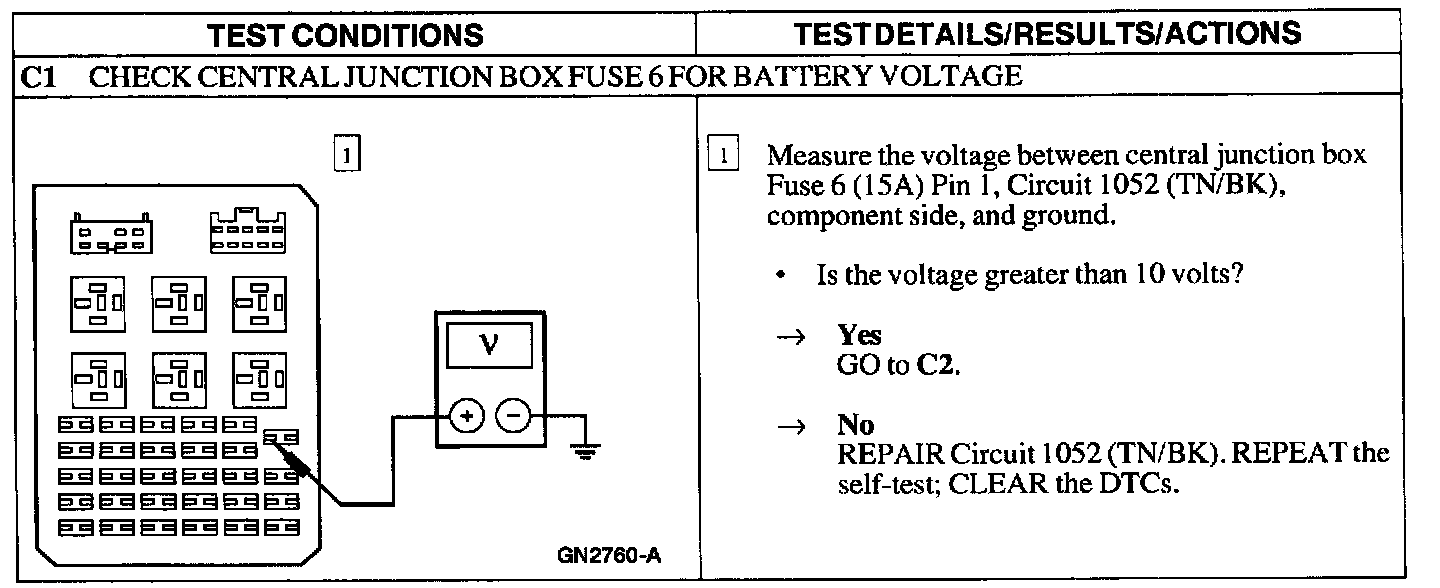

C1:

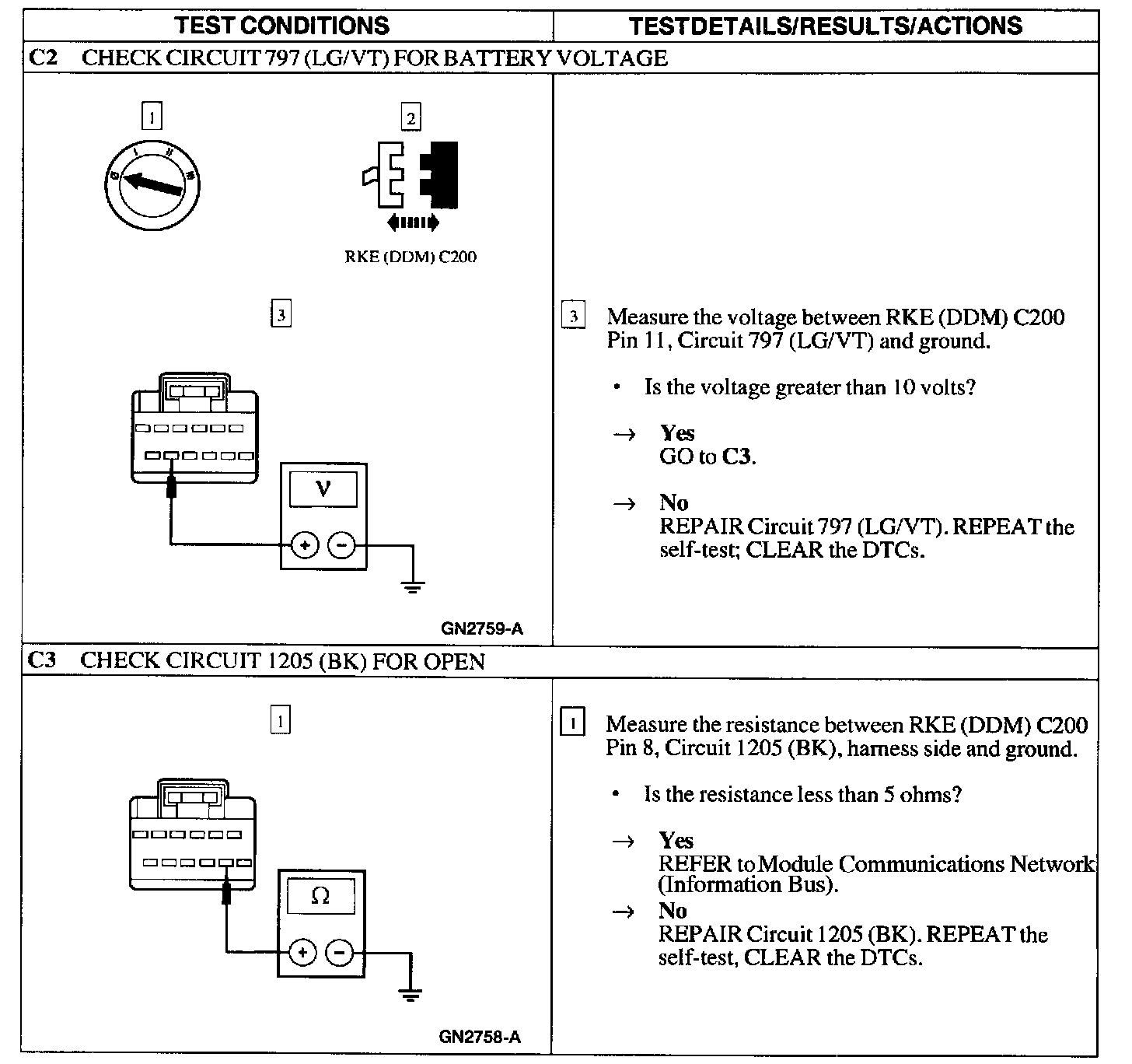

C2 - C3:
