Home
>>
Ford
>>
2000
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Switch
>>
Locations
>>
Left Front Door Lock Switch

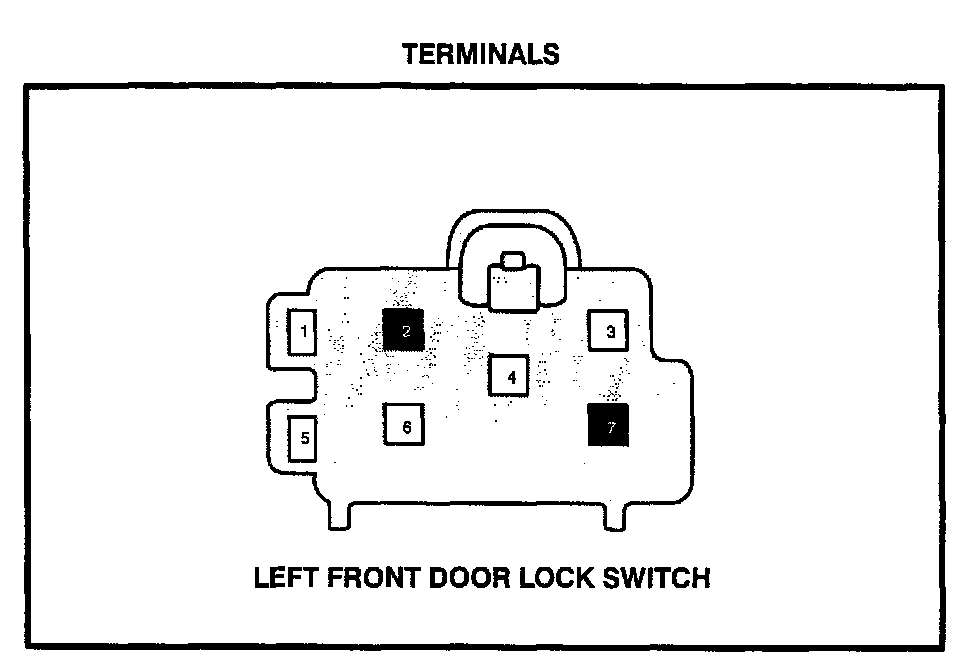

Left Front Door Lock Switch

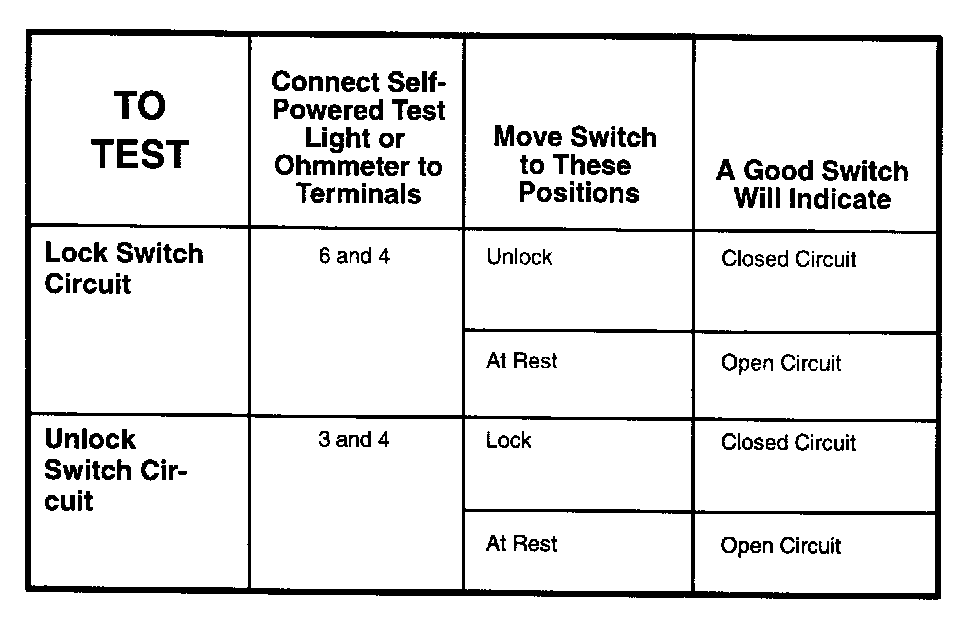

Component Testing Procedure:

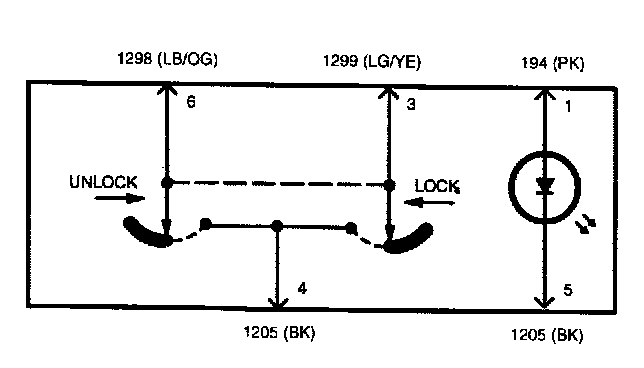

Schematic:
