Right Front Seat Control Switch
Right Front Seat Control Switch

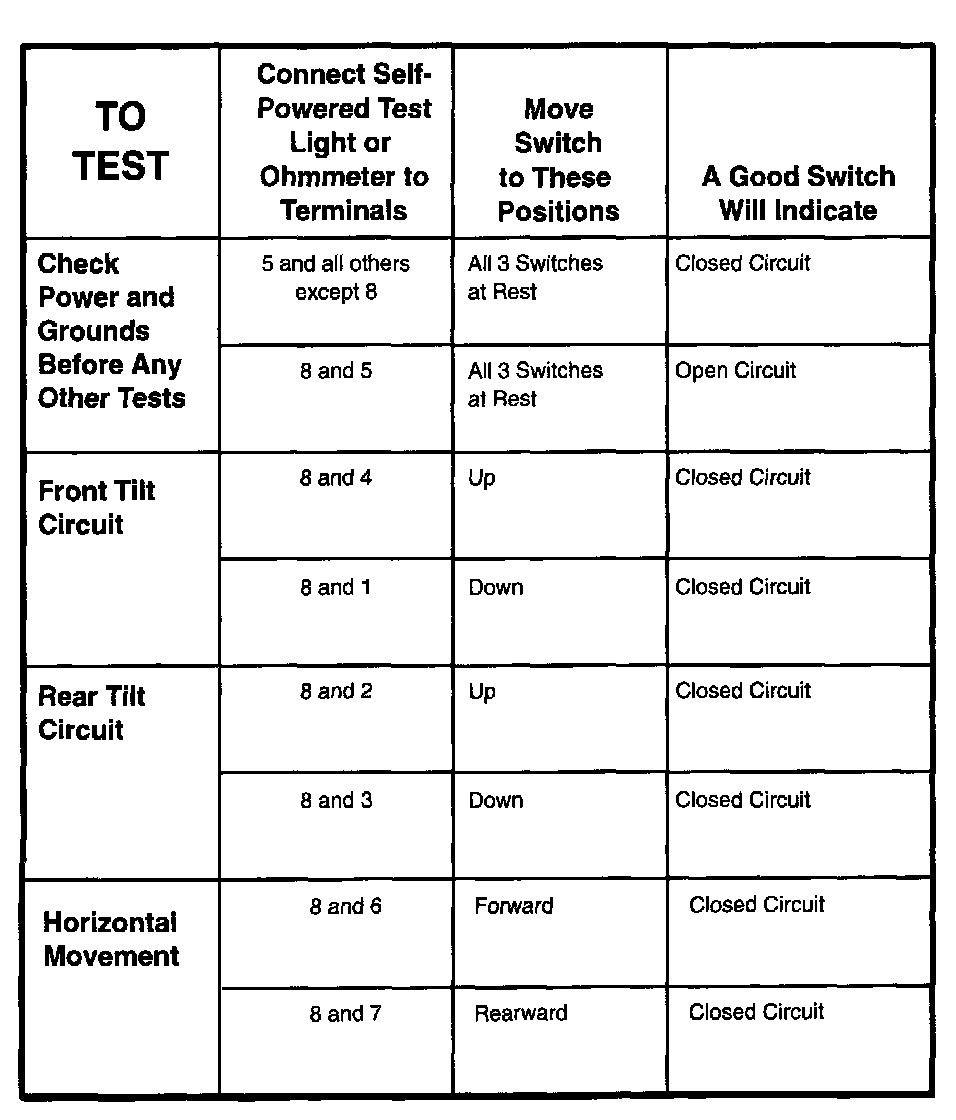

Component Testing Procedure:
Terminals:

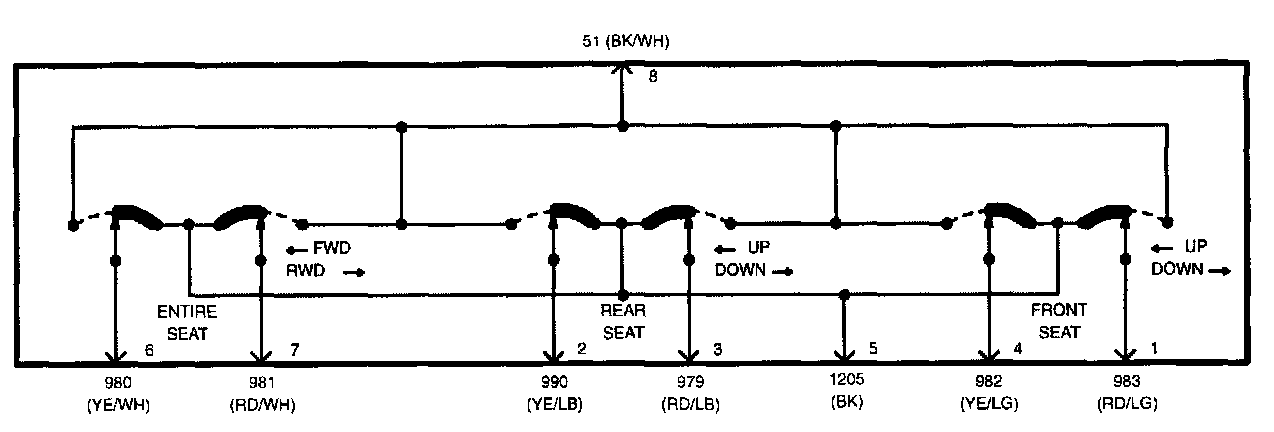

Schematic:
