Brake Disc Shield

Removal
1. Remove the front brake disc.

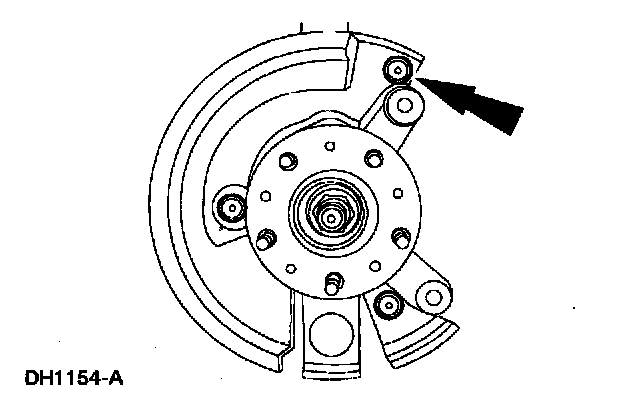

2. Drill out three front brake disc shield rivets and remove the brake disc shield.

Installation





1. Install the front brake disc shield with three rivets.
2. Install the front brake disc.
