Home >> Ford >> 2000 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Locations

Disc Brake System: Locations

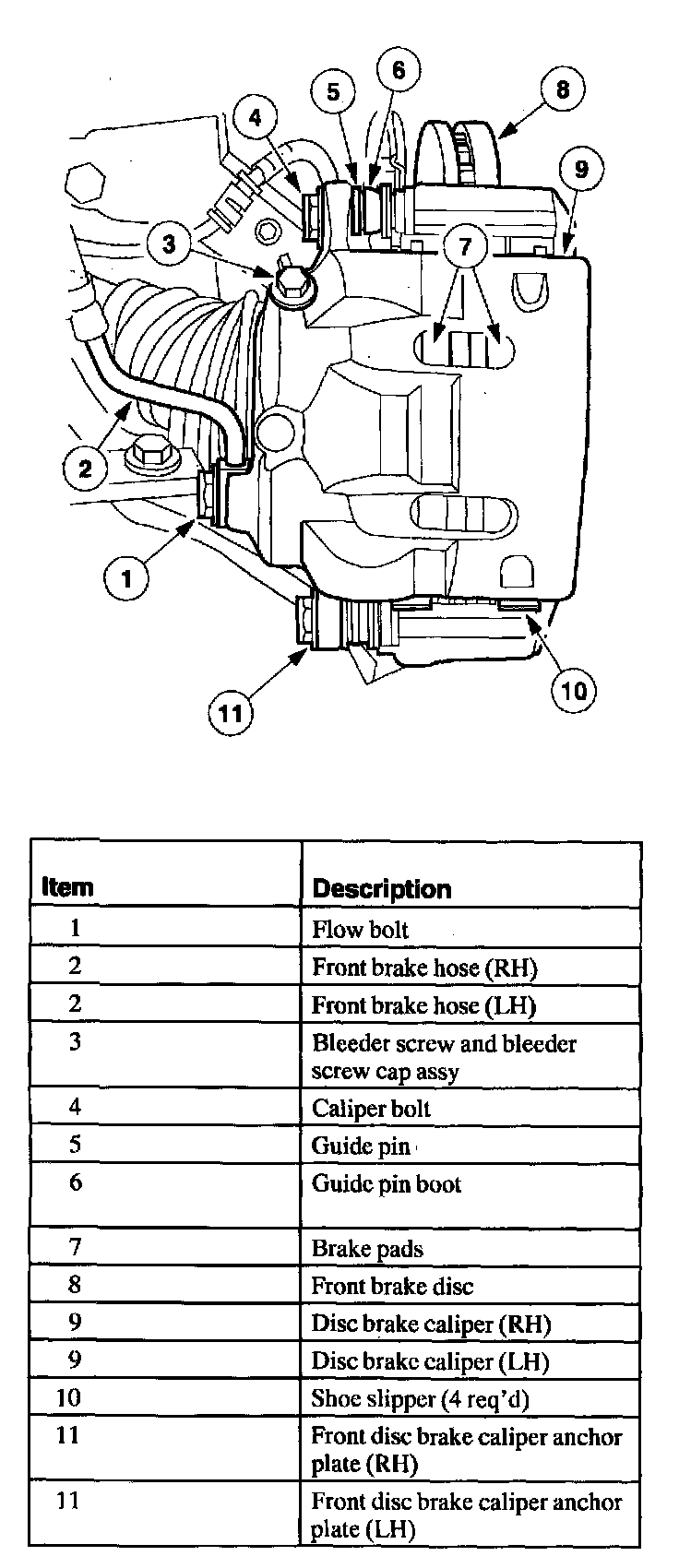

Front Disc Brake Components

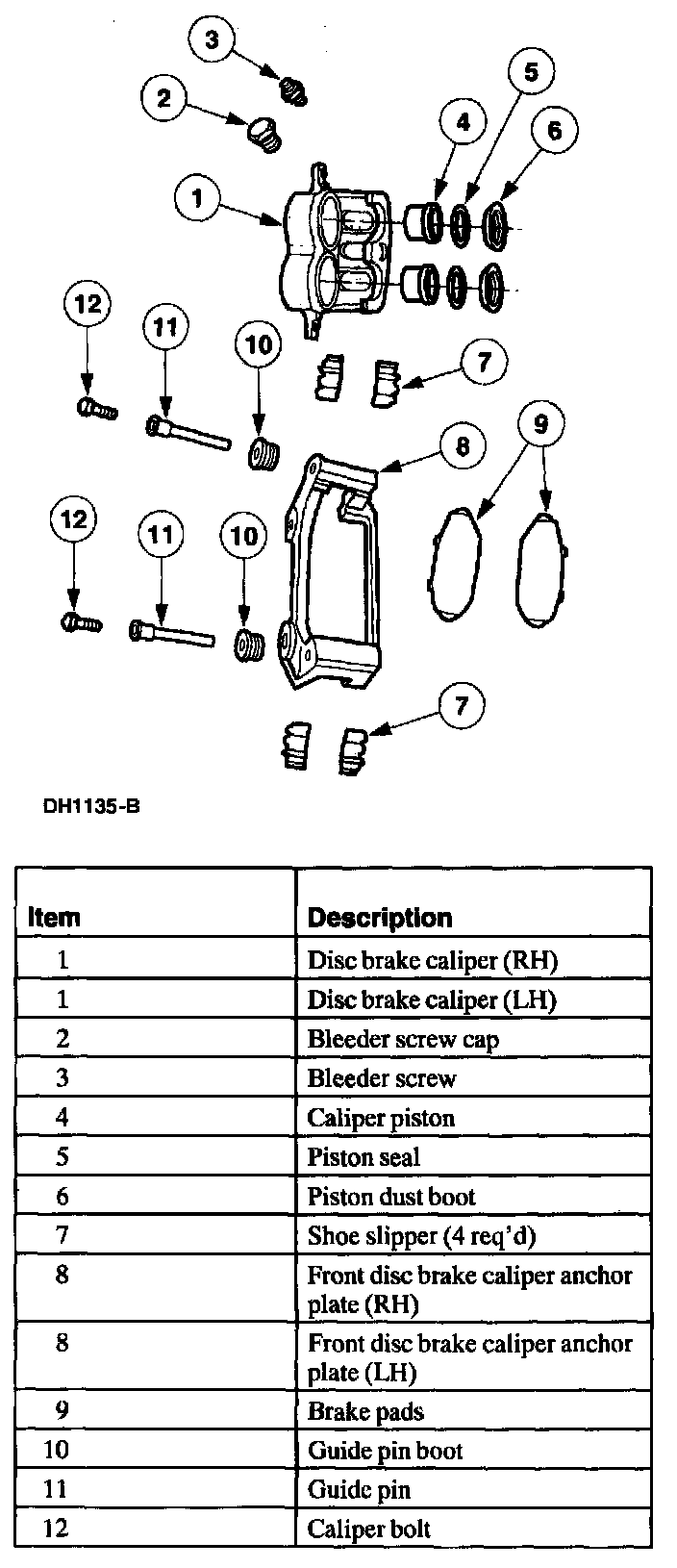

Disc Brake Caliper Components
