Valve Spring: Service and Repair

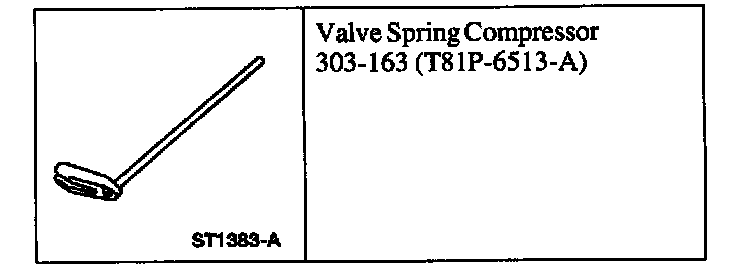

Special Tools:

Removal
1. Remove the valve cover.
2. Rotate the crankshaft until the piston for the valve being worked on is at the top of its stroke with both the intake valve and the exhaust valve closed.

CAUTION: If the components are to be reinstalled, they must be installed in the same position. Mark the components for location.

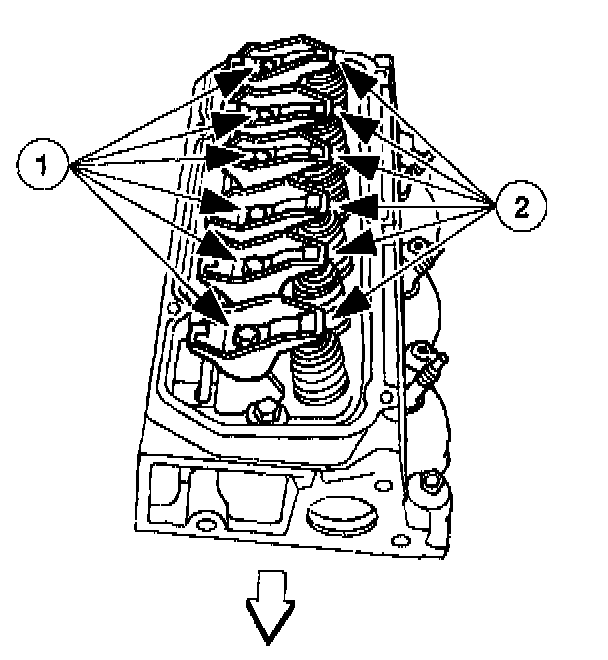

3. Remove the rocker arms.
1 Remove the bolts.
2 Remove the rocker arms.

4. CAUTION: If a valve drops into the cylinder, remove the cylinder head.

Hold the valve in the cylinder head.
- Remove the spark plug.
- Apply a minimum of 689 kPa (100 psi) of compressed air to the cylinder.

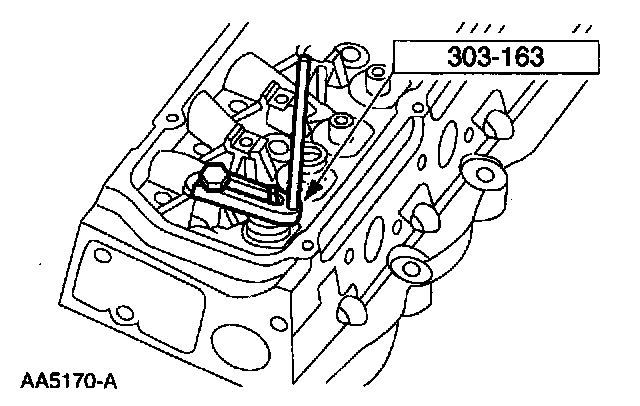

5. Using the special tool, compress the valve springs.

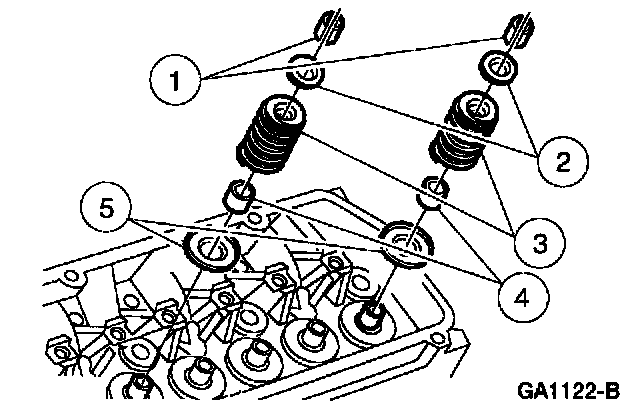

6. Remove the following:
1 Remove the valve spring retainer key.
2 Remove the valve spring retainer.
3 Remove the valve spring.
4 Remove and discard the valve stem seal.
5 Remove the valve spring seat.
7. Inspect the components.

Installation





1. Note: Lubricate the parts with Super Premium SAE 5W-30 Motor Oil X0-5W30-QSP or equivalent meeting Ford specification WSS-M2C153-6 prior to assembly.

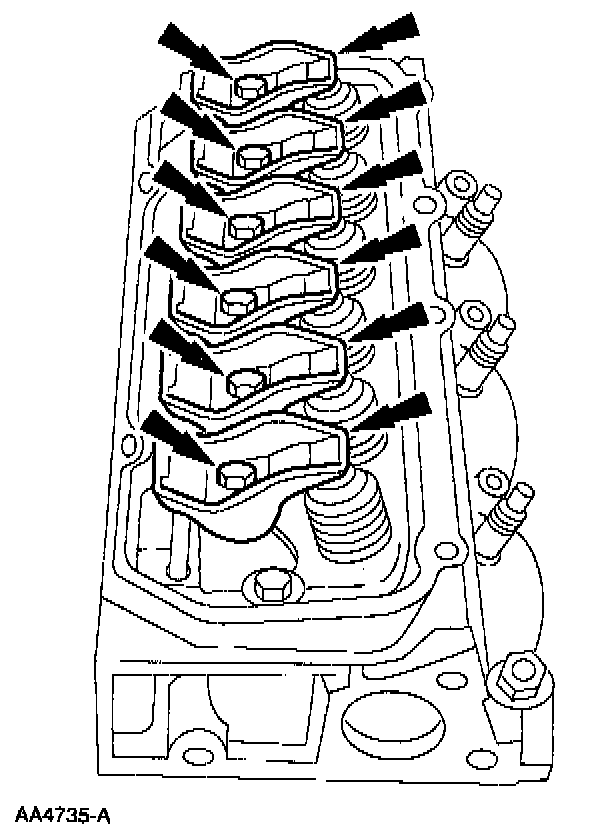

To install, reverse the removal procedure. Tighten the bolts in two stages.
- Stage 1: Tighten to 5 Nm (44 inch lbs.).
- Stage 2: Tighten to 32 Nm (24 ft. lbs.).
