Accumulator HVAC: Service and Repair
REMOVAL 1.
Disconnect the battery. For additional information, refer to Battery.
2.
Perform the Refrigerant Discharging and Recovery Procedure.
Refrigerant Discharging and Recovery procedure 3.

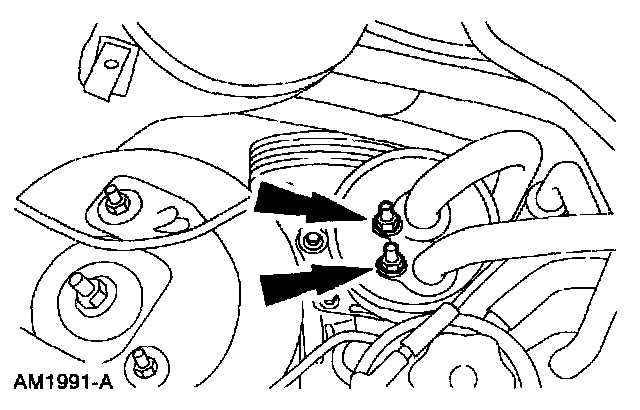

Disconnect the fittings.
4.
Remove the bolts.
INSTALLATION 1.
To install, reverse the removal procedure.
^
Perform the Refrigerant Oil Addition procedure.
Refrigerant Oil Addition
