Air Conditioning Switch: Service and Repair

REMOVAL
1. Remove the control assembly. For additional information, refer to Control Assembly.

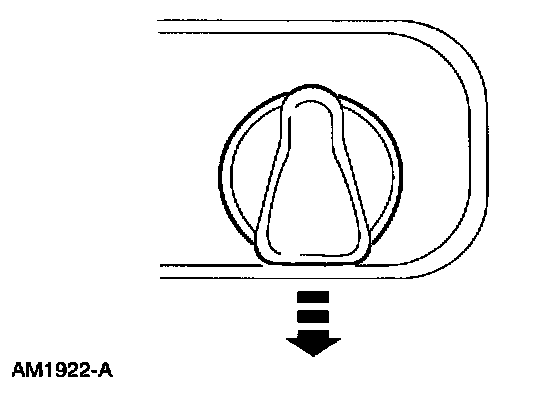

2. Remove the knob.

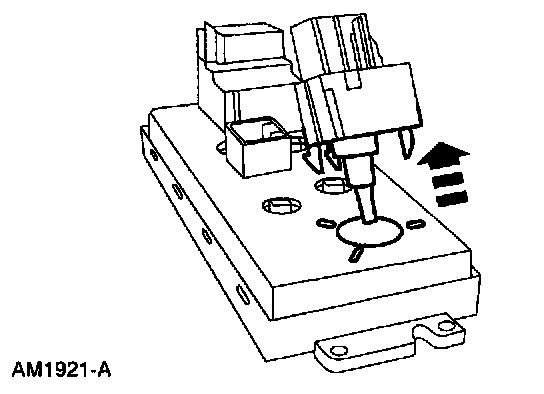

3. Unsnap the switch.

INSTALLATION
1. To install, reverse the removal procedure.
