Blower Motor Relay: Service and Repair
REMOVAL 1.
Remove the trim panels.
2.

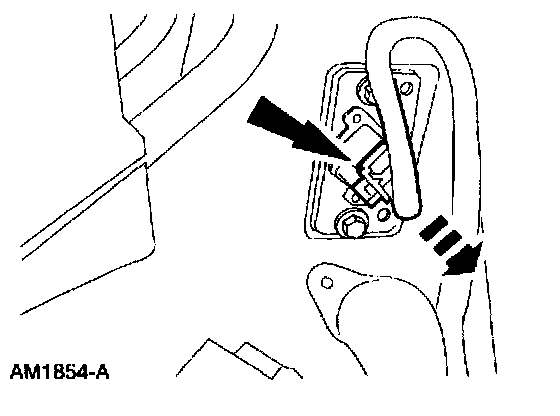

Disconnect the heater blower motor switch resistor connector.
3.
Remove the heater blower motor switch resistor.
1

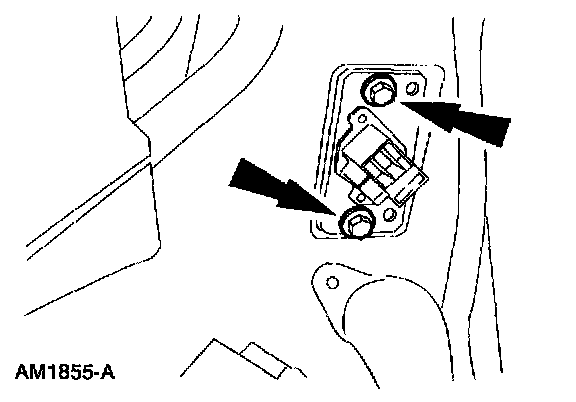

Remove the screws.
2
Remove the heater blower motor switch resistor.
INSTALLATION 1.
To install, reverse the removal procedure.
