Blower Motor Resistor: Service and Repair

REMOVAL

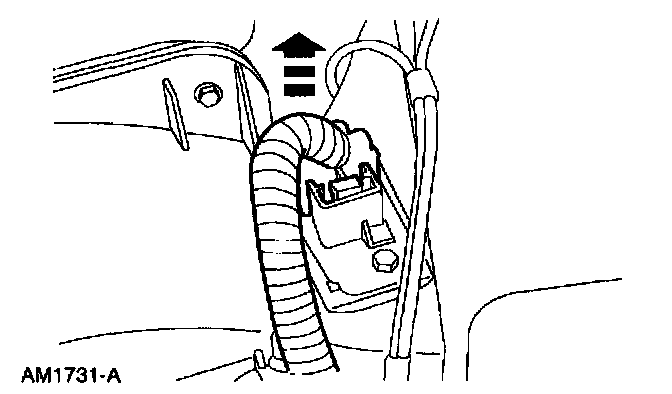

1. Disconnect the wiring harness connector.







2. Remove the resistor.

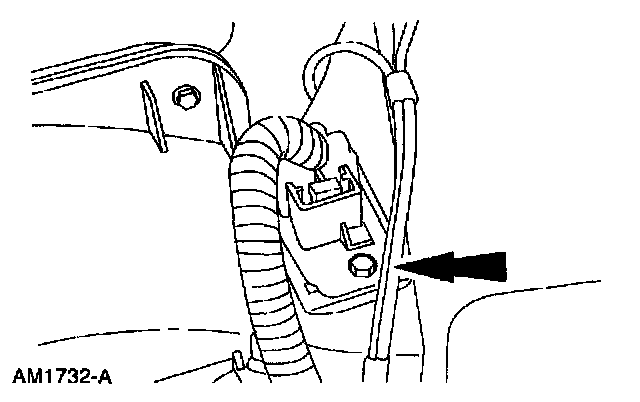

^ Remove the screws.
3. Remove the resistor.

INSTALLATION
1. To install, reverse the removal procedure.
