Auxiliary Climate Control
REMOVAL 1.
Remove the trim panels.
2.

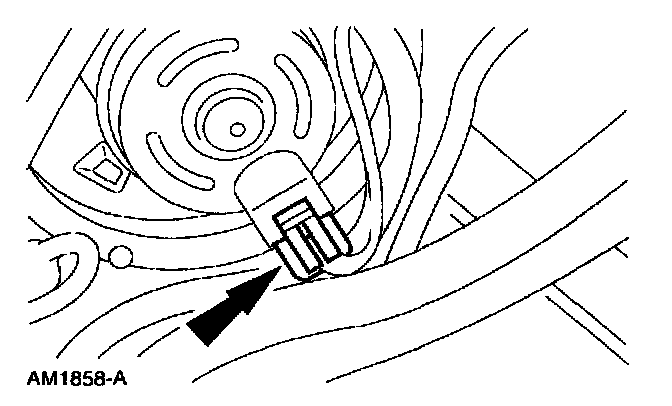

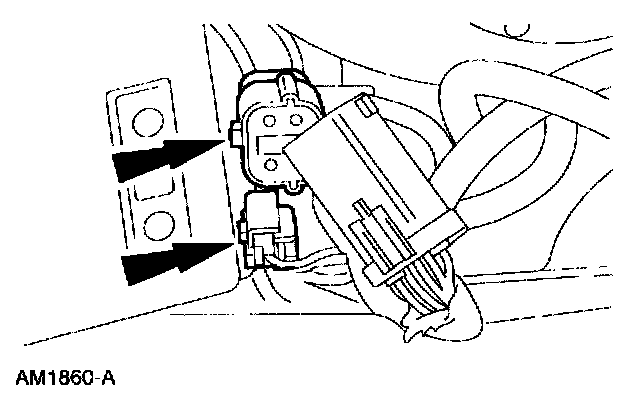

Disconnect the connectors.
3.
Disconnect the rear blower motor.
4.

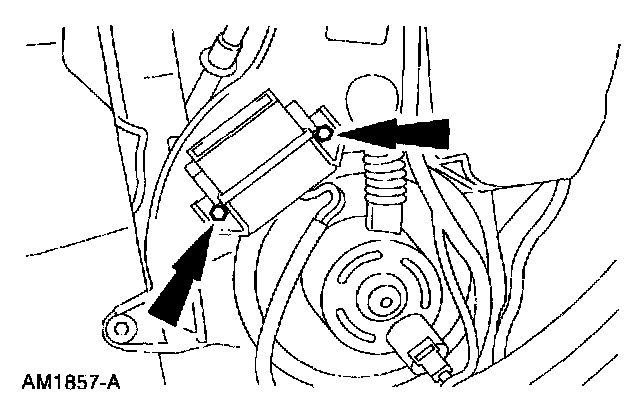

Remove the screws.
5.

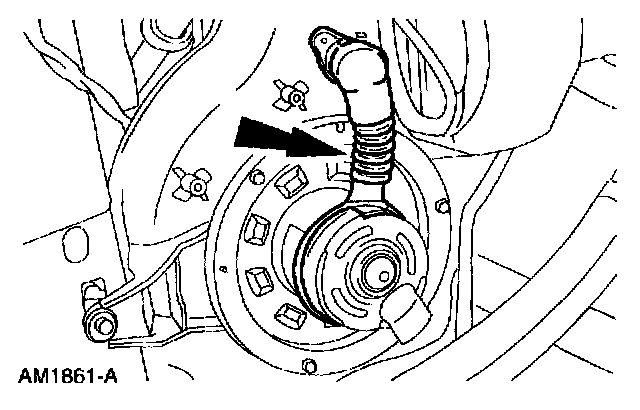

Remove the vent tube.
6.
Remove the rear blower motor.
^
Remove the screws.
INSTALLATION 1.
To install, reverse the removal procedure.
