A/C Pressure Switch
REMOVAL 1.
Disconnect the A/C cycling pressure switch electrical connector.
2.

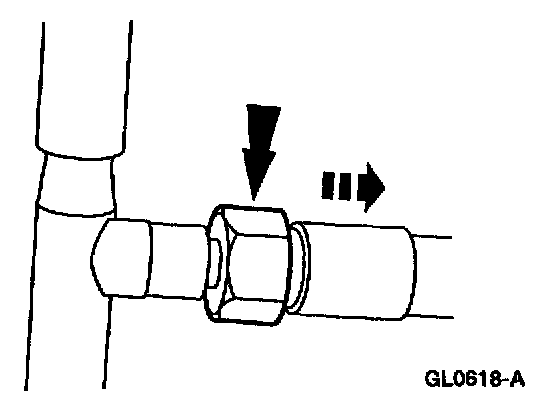

Remove the
A/C cycling switch.

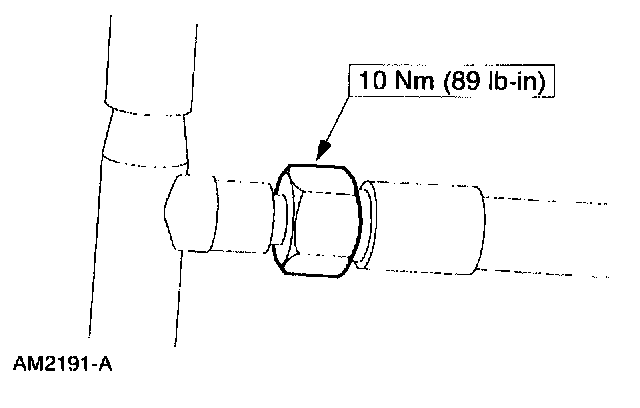

INSTALLATION 1.
To install, reverse the removal procedure.
^
Lubricate the O-ring seal with PAG Compressor Oil YN-12-C, F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
^
CARRY OUT refrigerant system Leak Detection.
