Test F: A/C Does Not Operate or Does Not Operate Correctly
Test F: A/C Does Not Operate or Does Not Operate Correctly

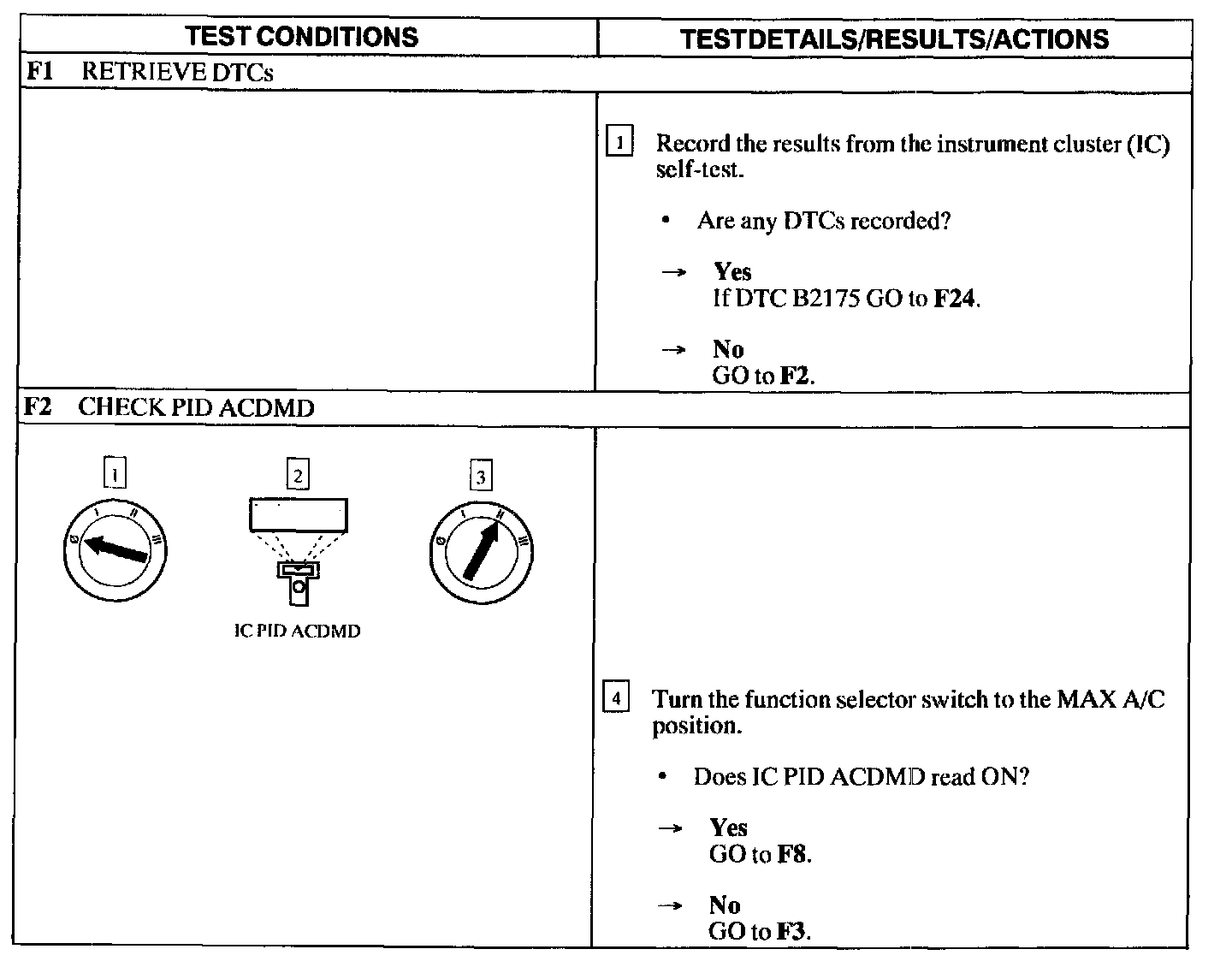

F1 - F2:

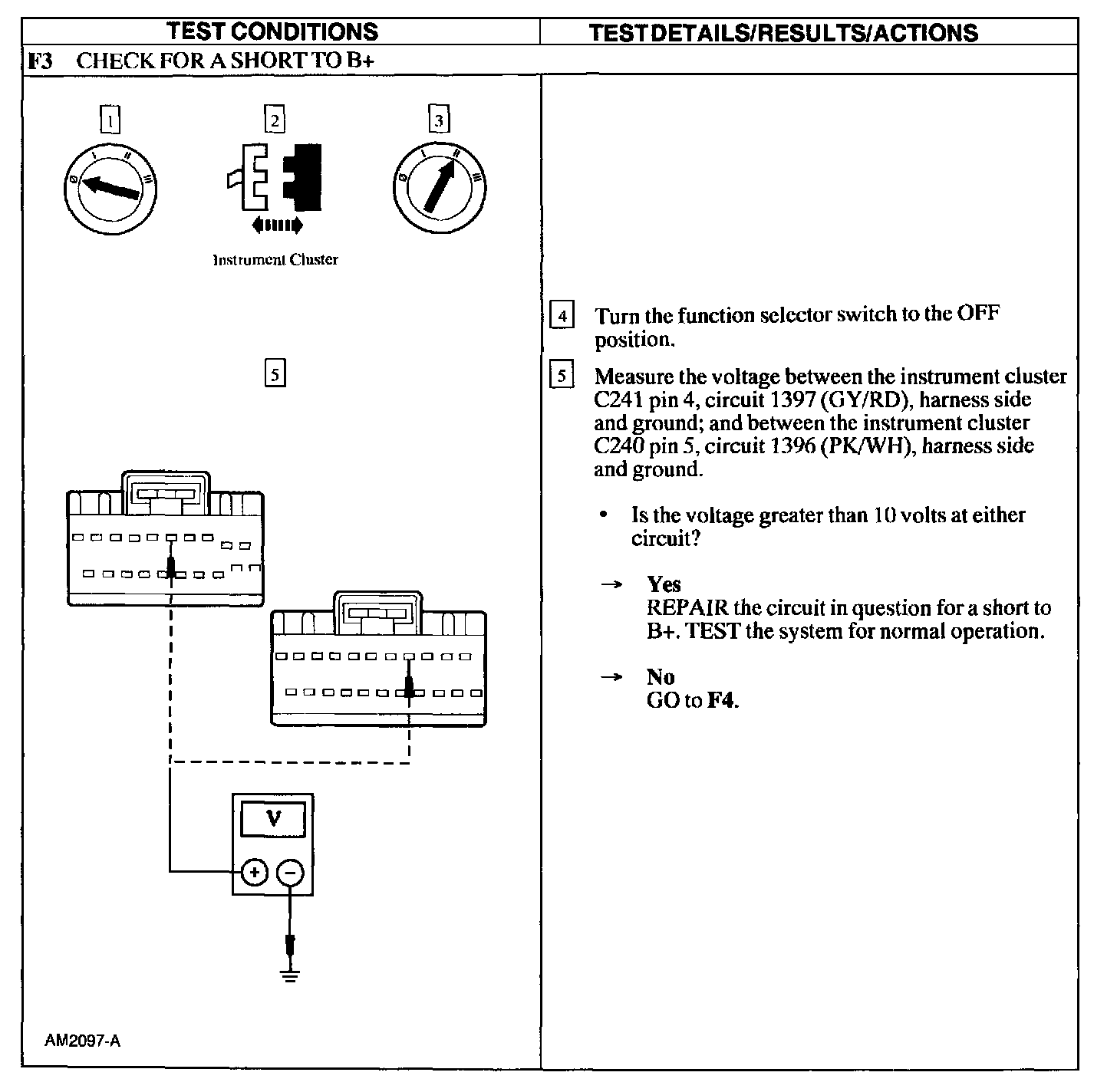

F3:

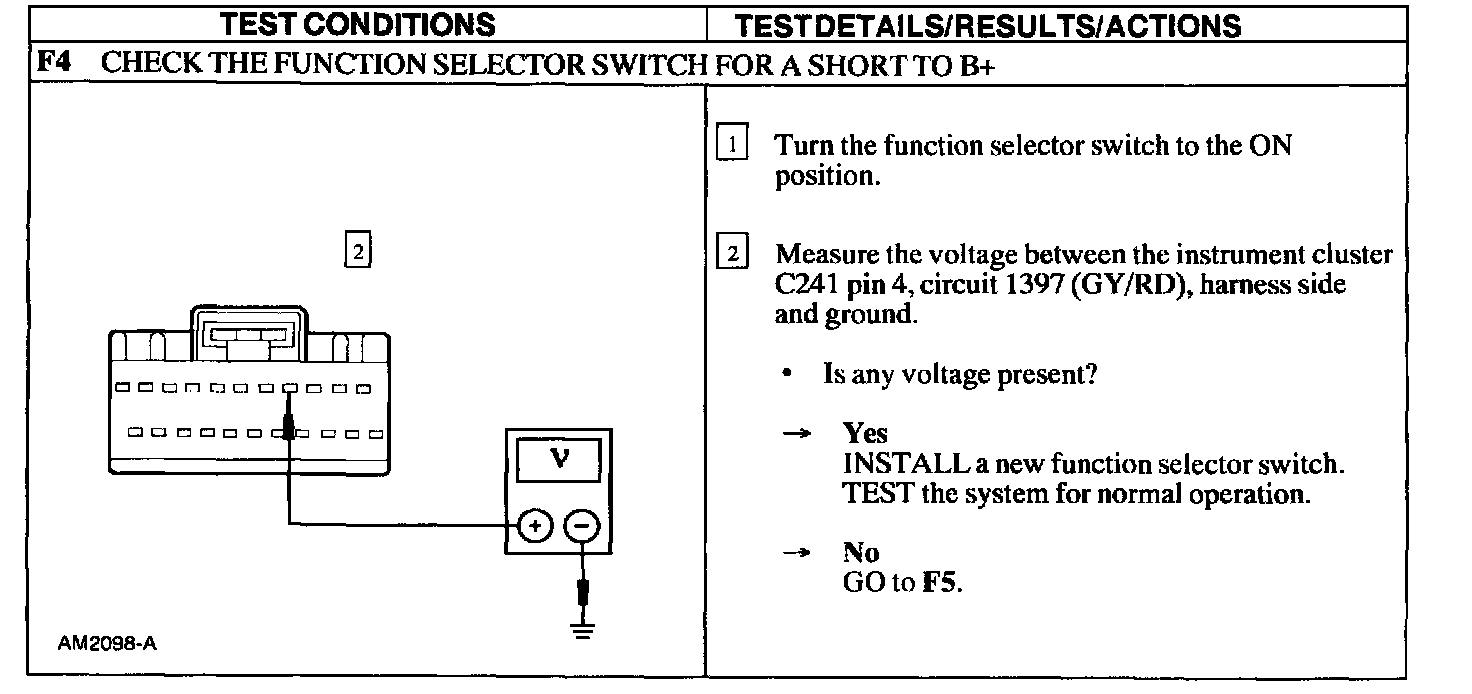

F4:

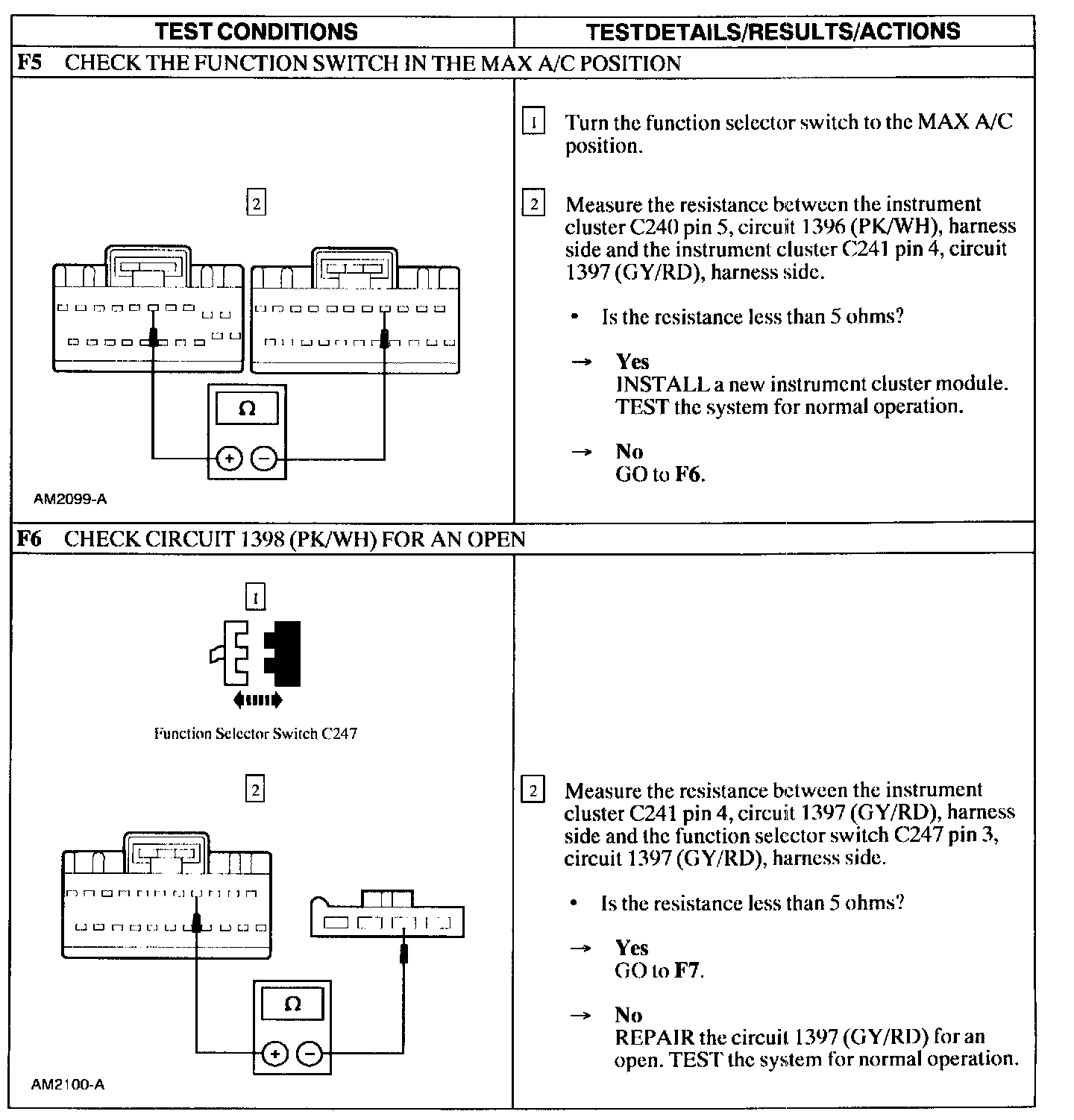

F5 - F6:

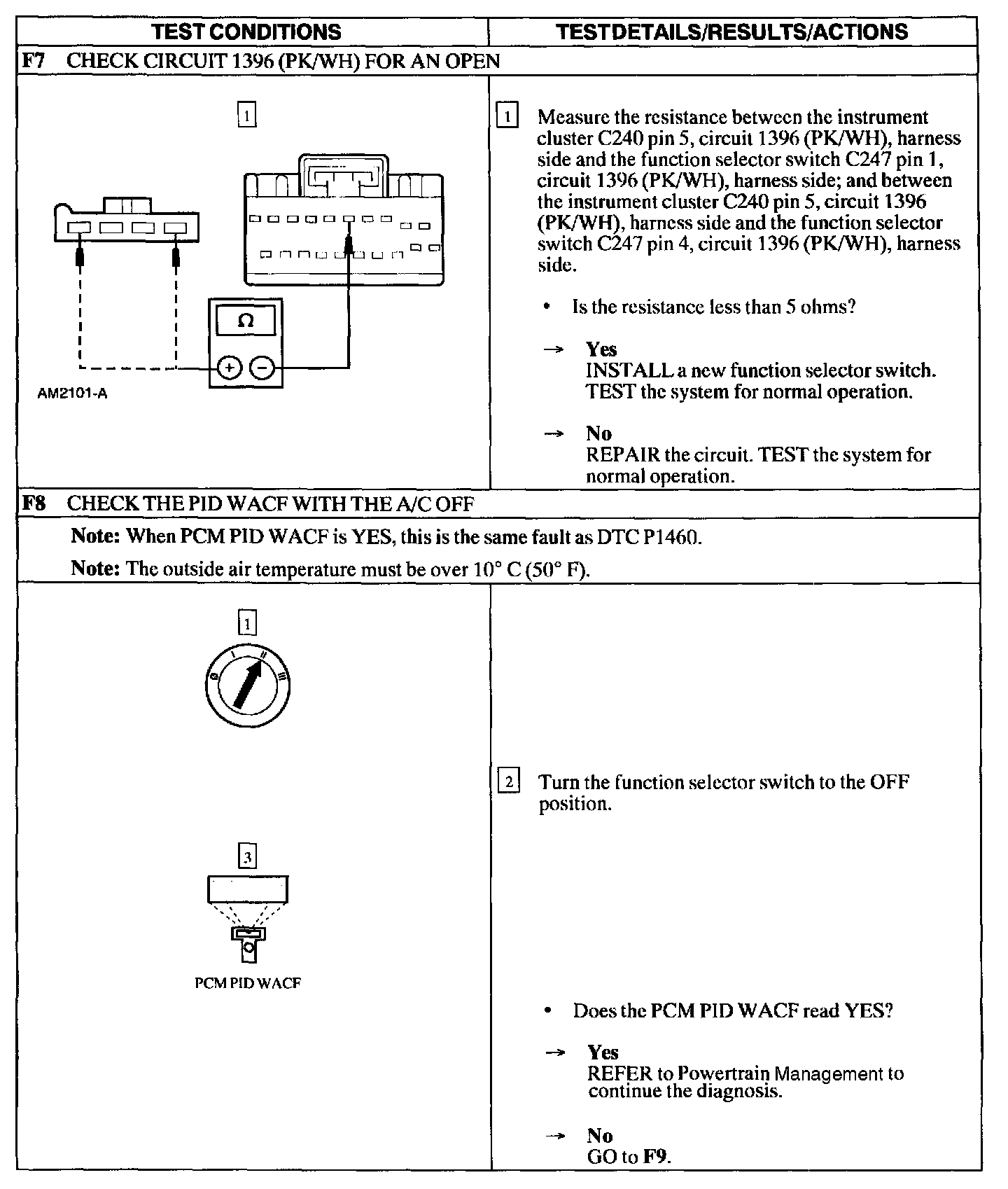

F7 - F8:

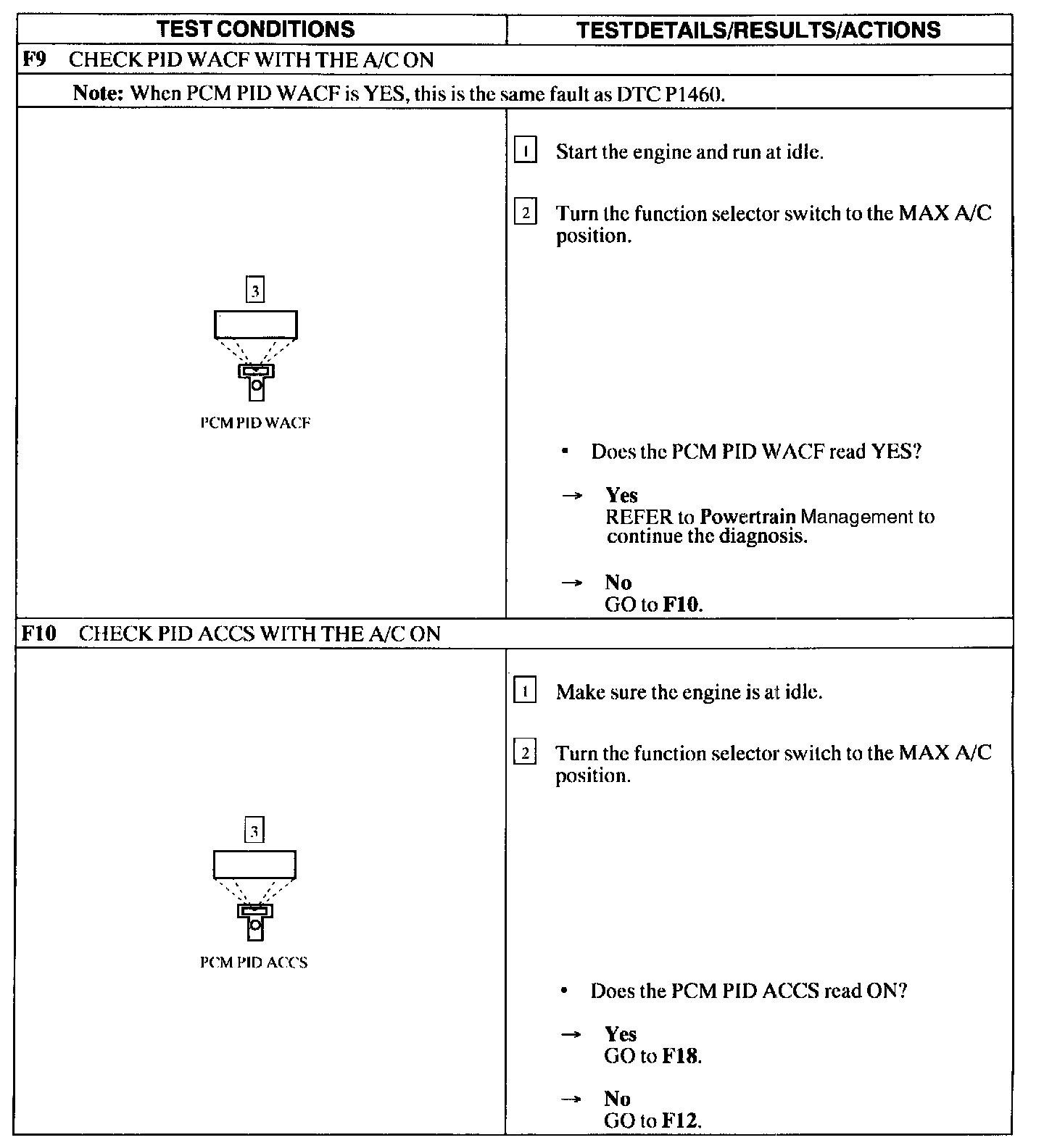

F9 - F10:

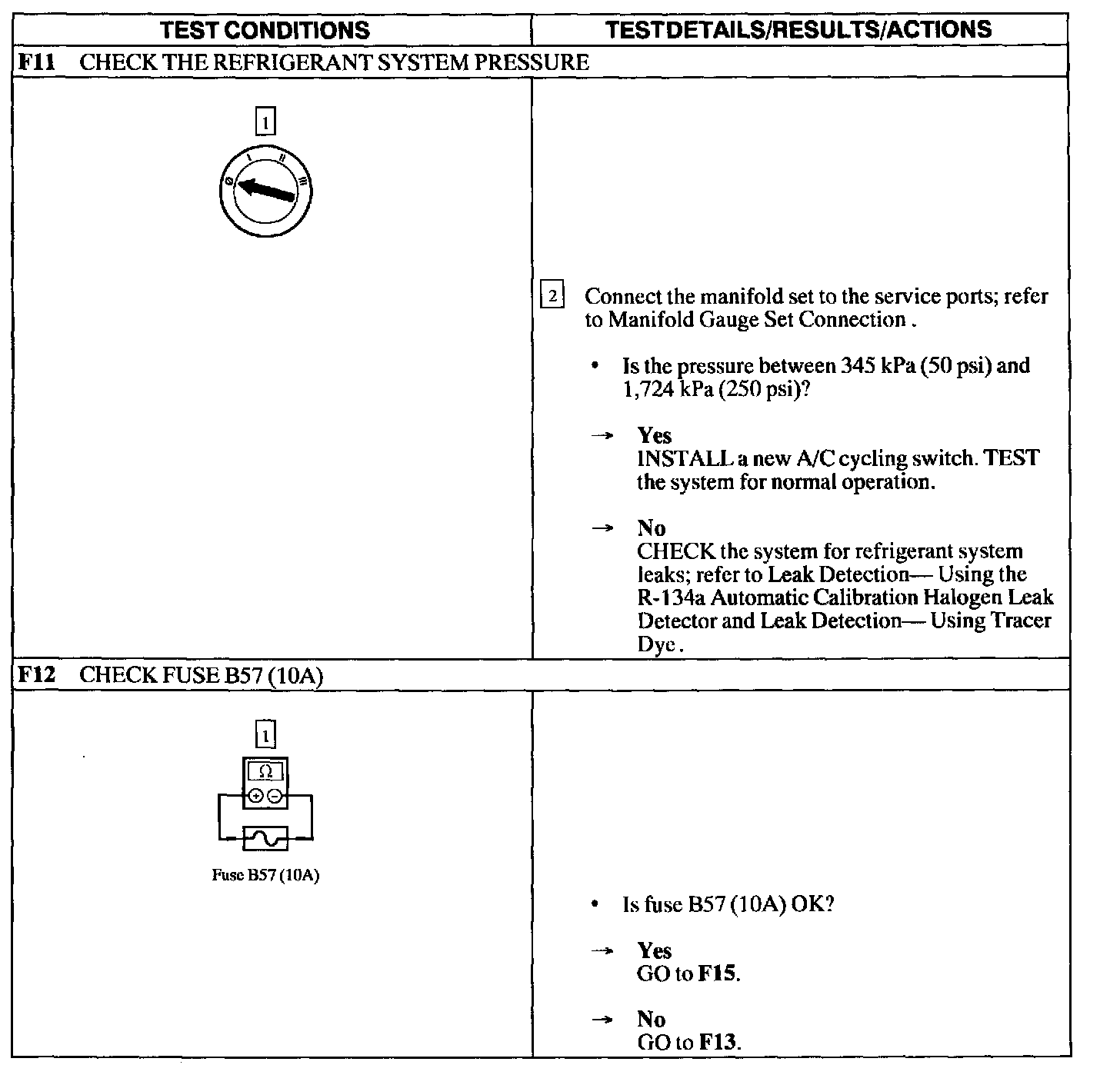

F11 - F12:
F13 - F14:

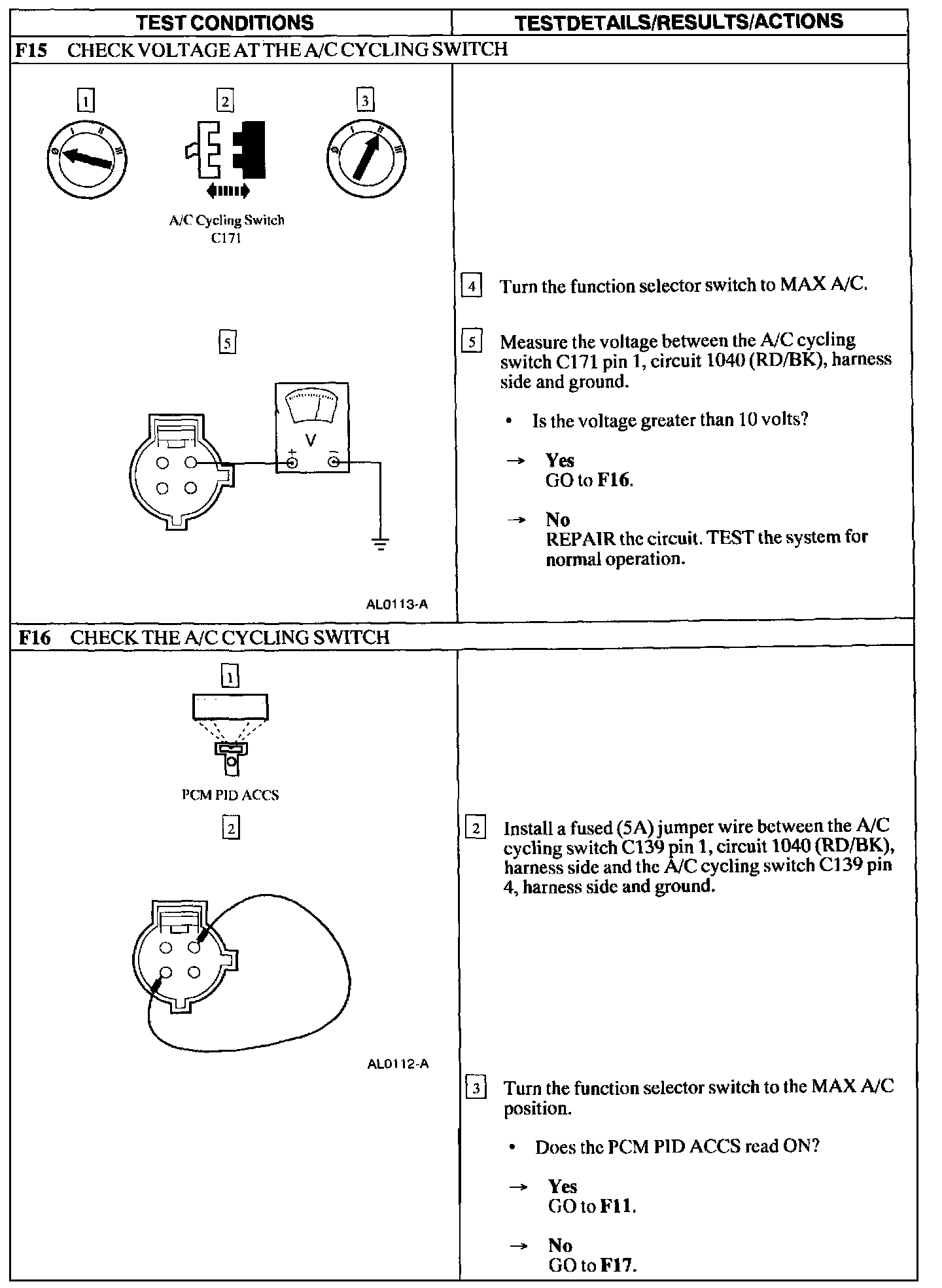

F15 - F16:

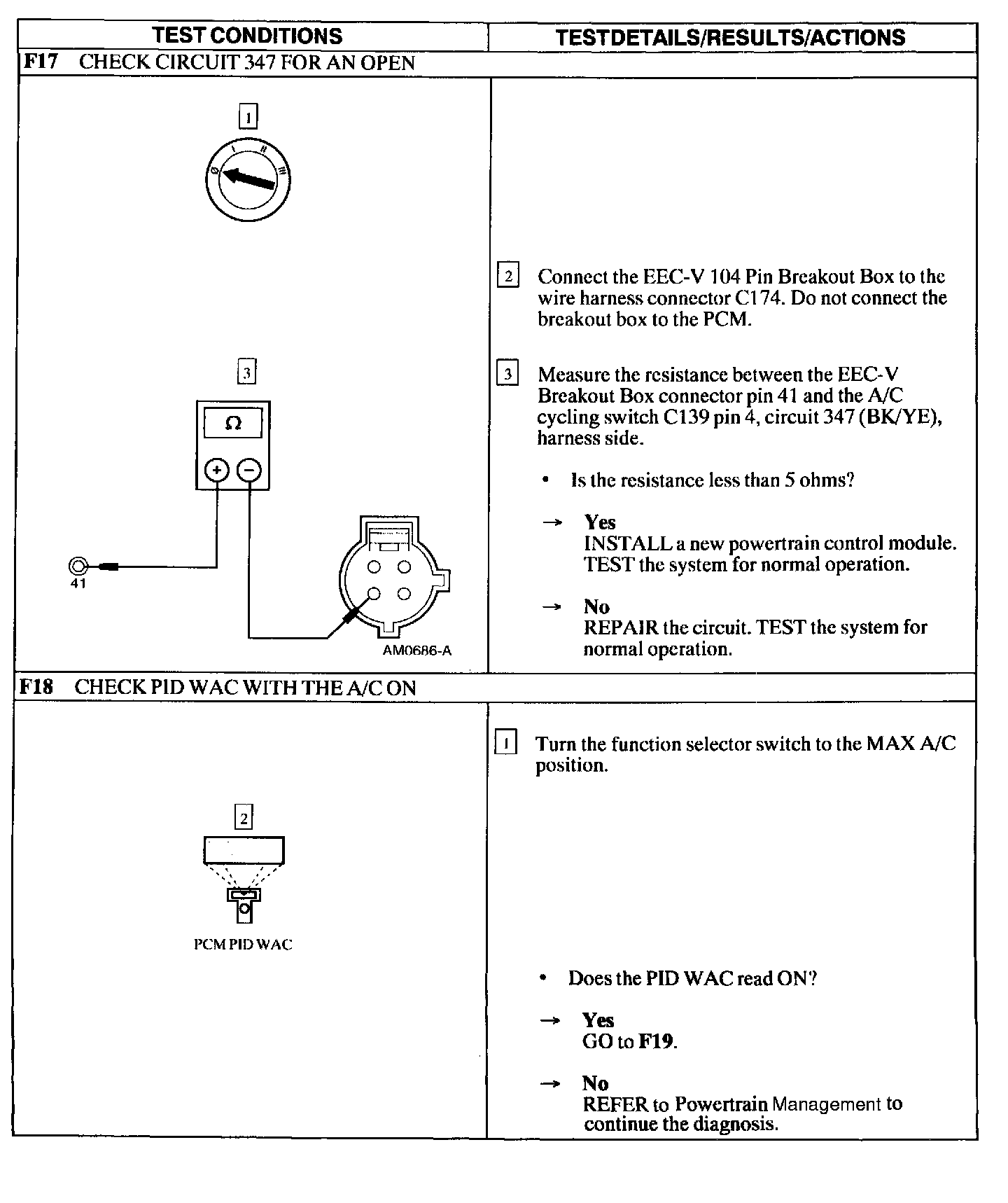

F17 - F18:

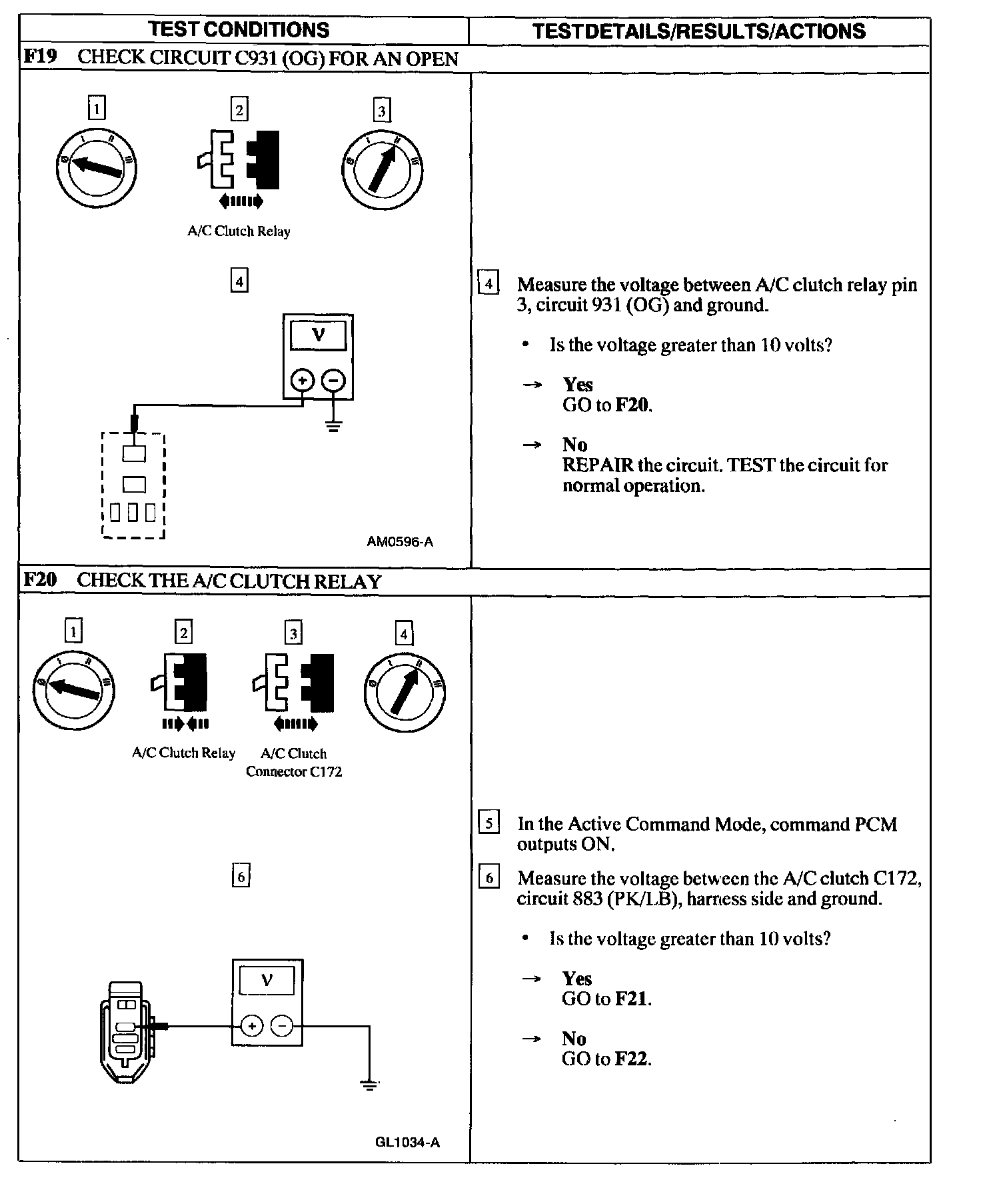

F19 - F20:

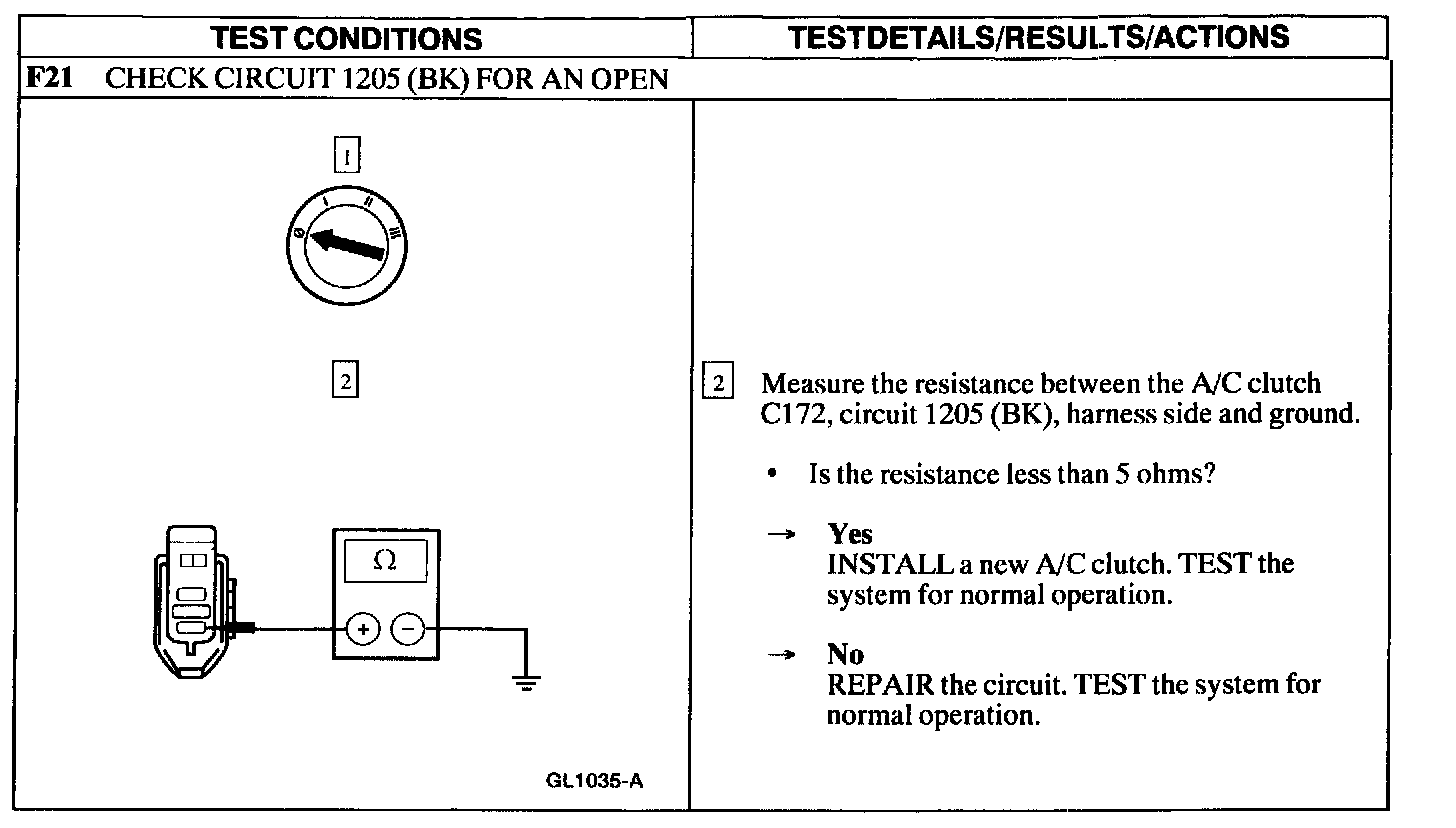

F21:

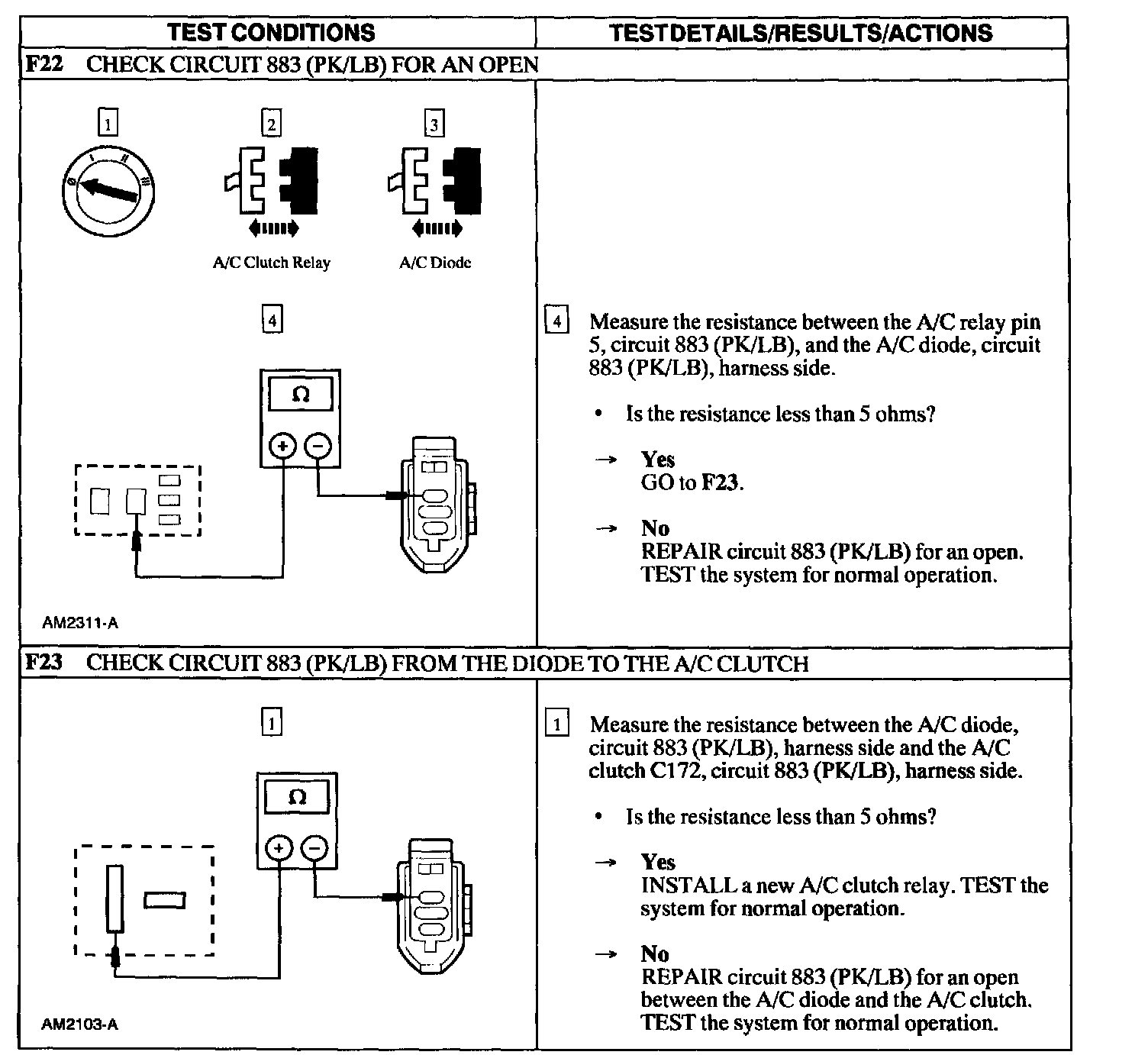

F22 - F23:

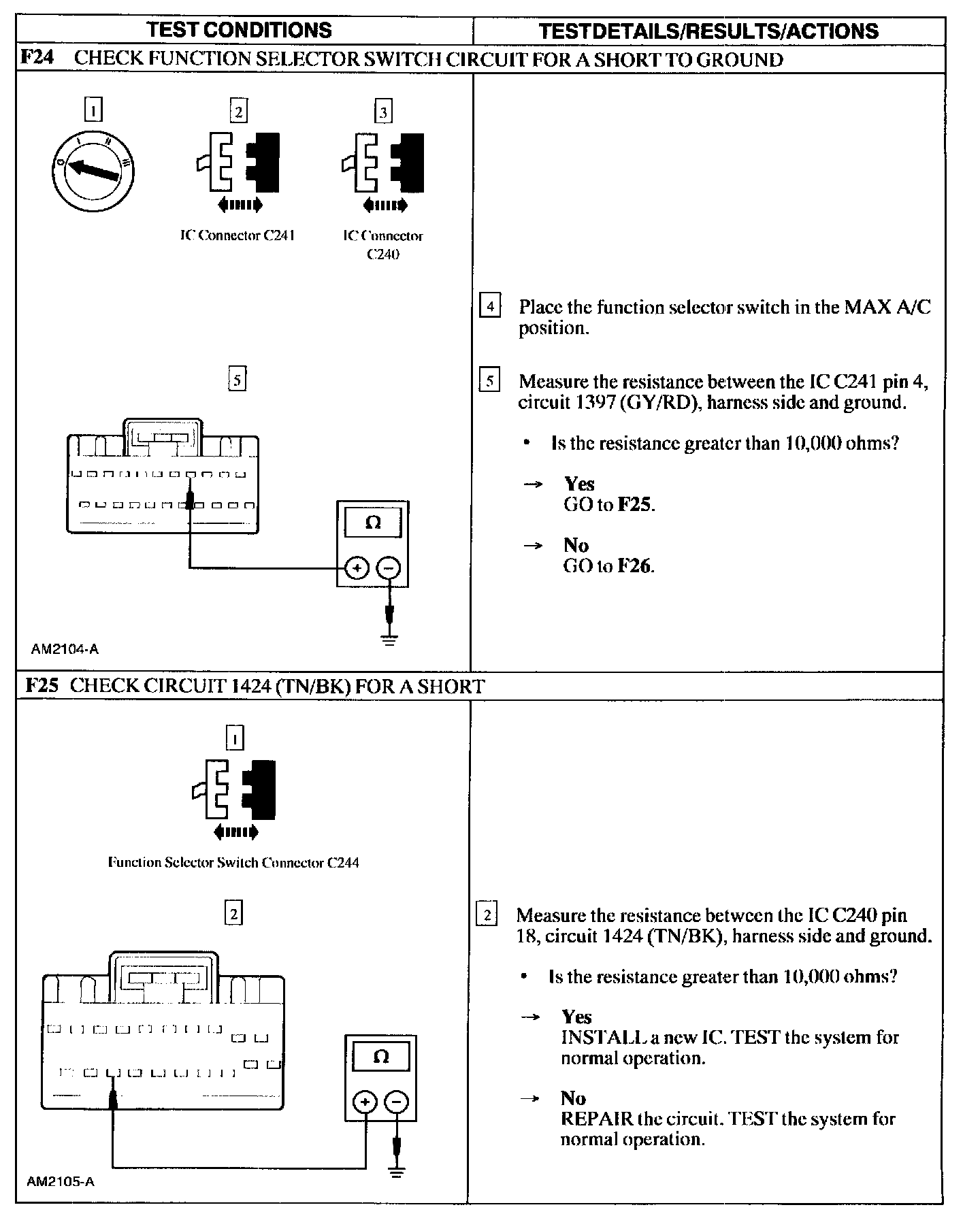

F24 - F25:
F26 - F27:
