Test P: Panel/Floor Controls Do Not Operate Using The Front/Rear Auxiliary Climate Controls
Test P: Panel/Floor Controls Do Not Operate Using The Front/Rear Auxiliary Climate Controls

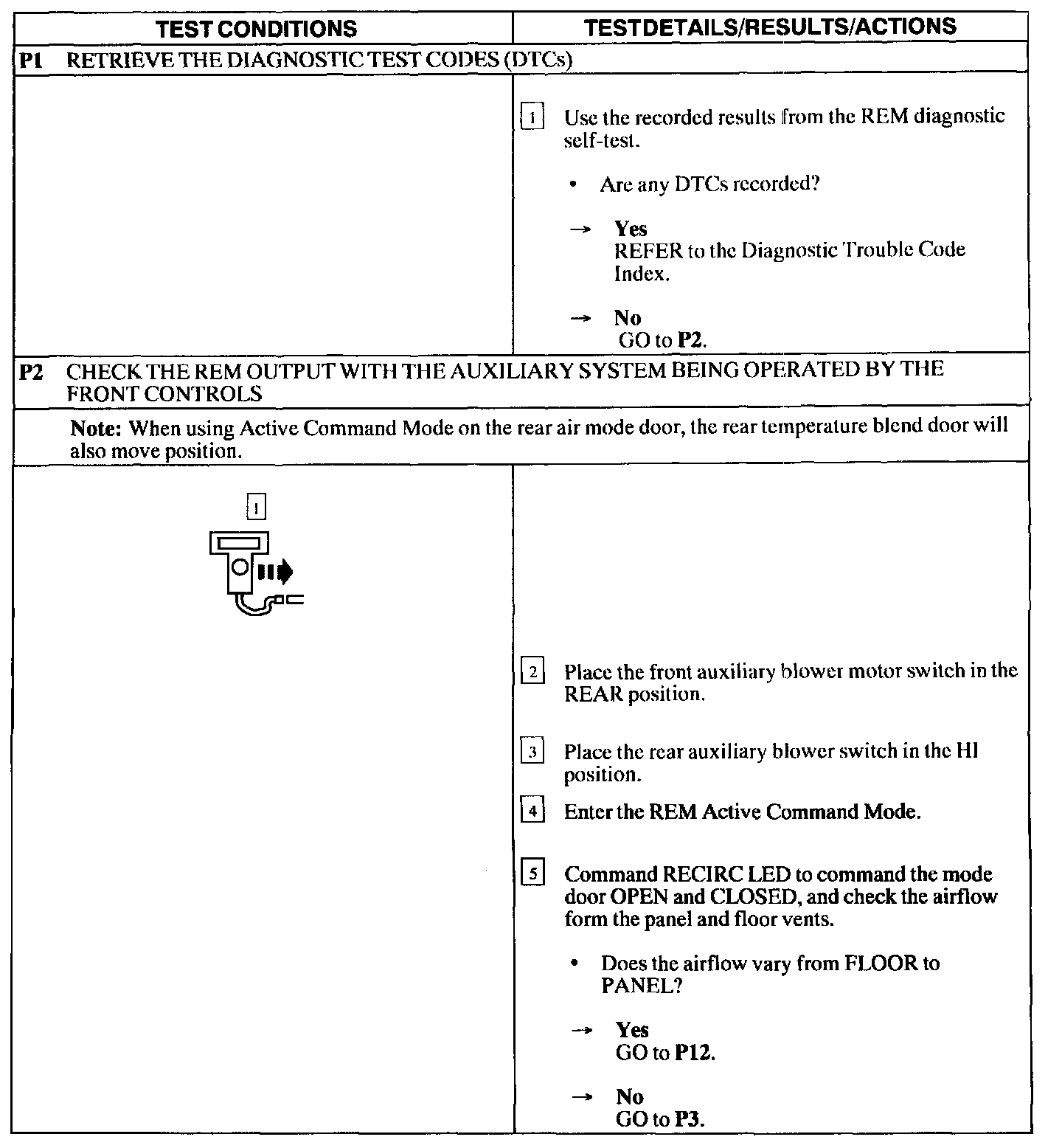

P1 - P2:
P3:

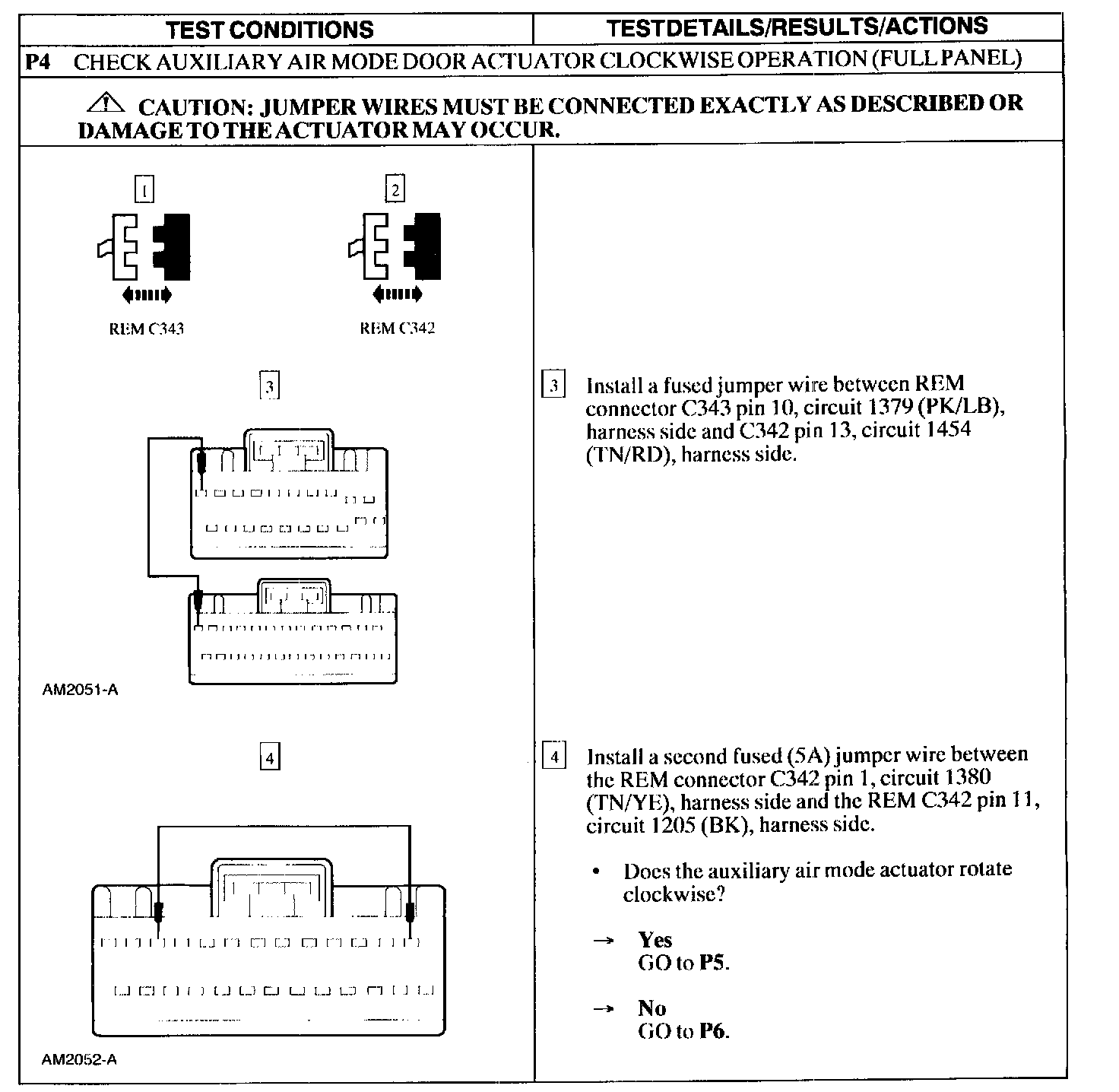

P4:

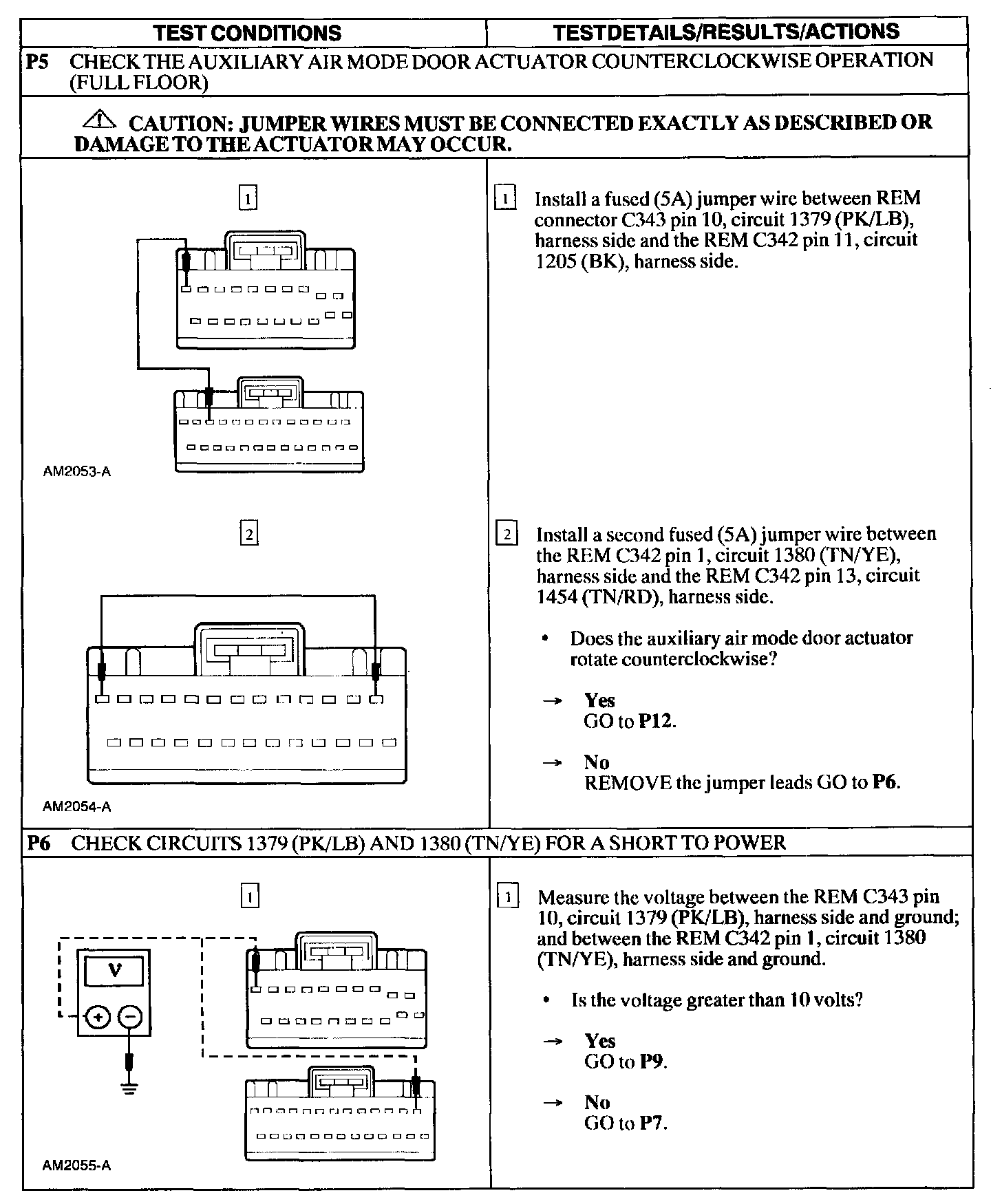

P5 - P6:

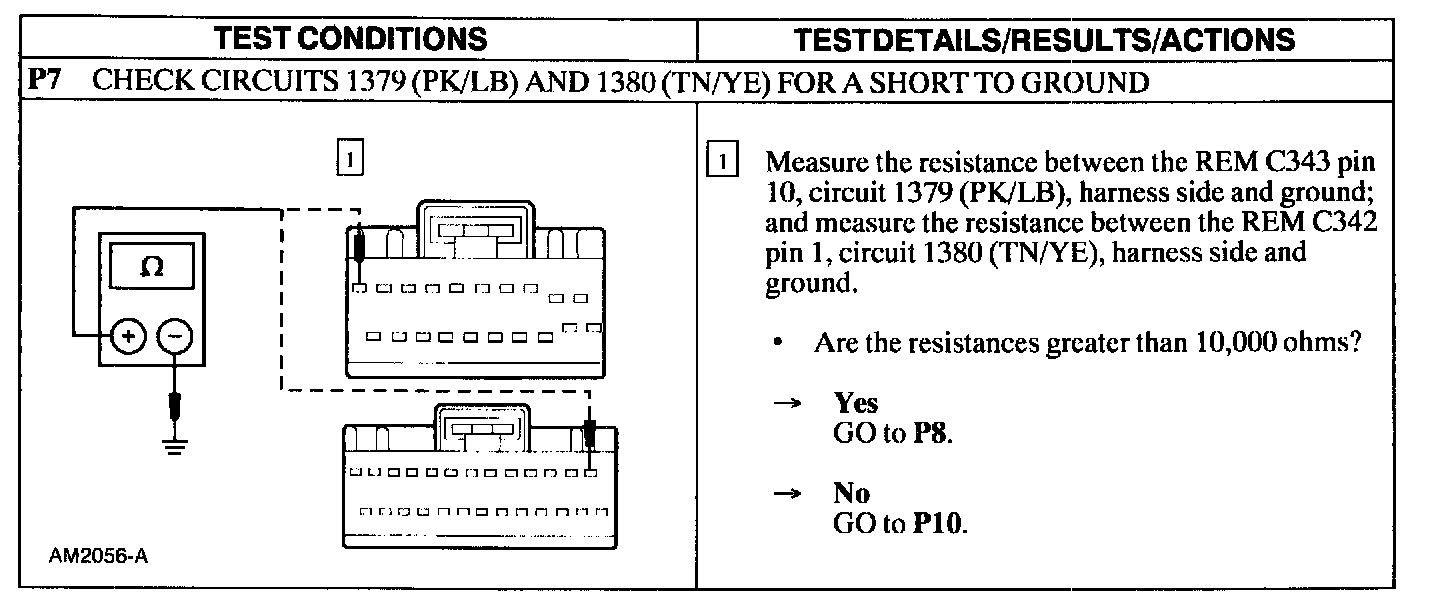

P7:

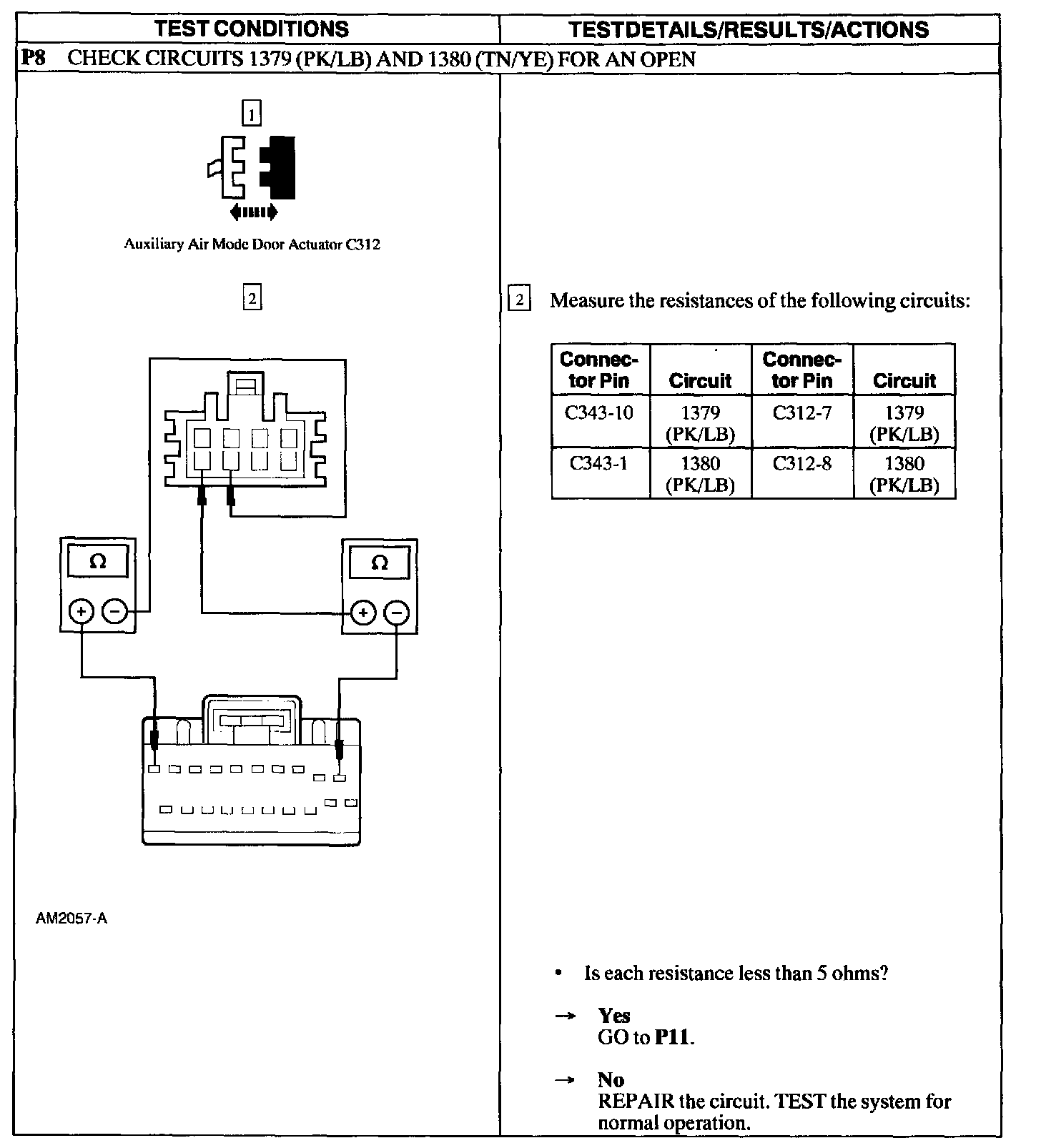

P8:
P9 - P11:

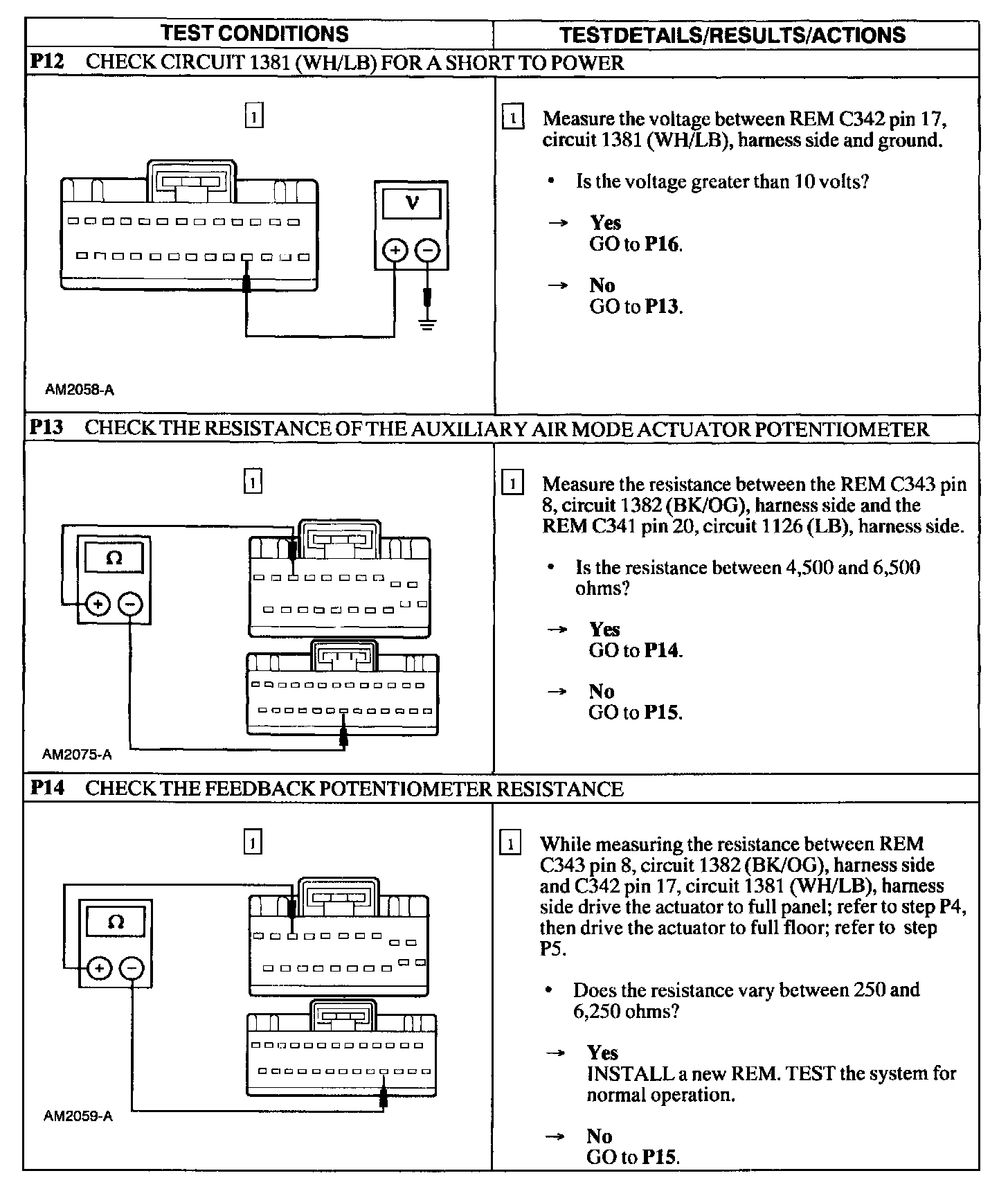

P12 - P14:

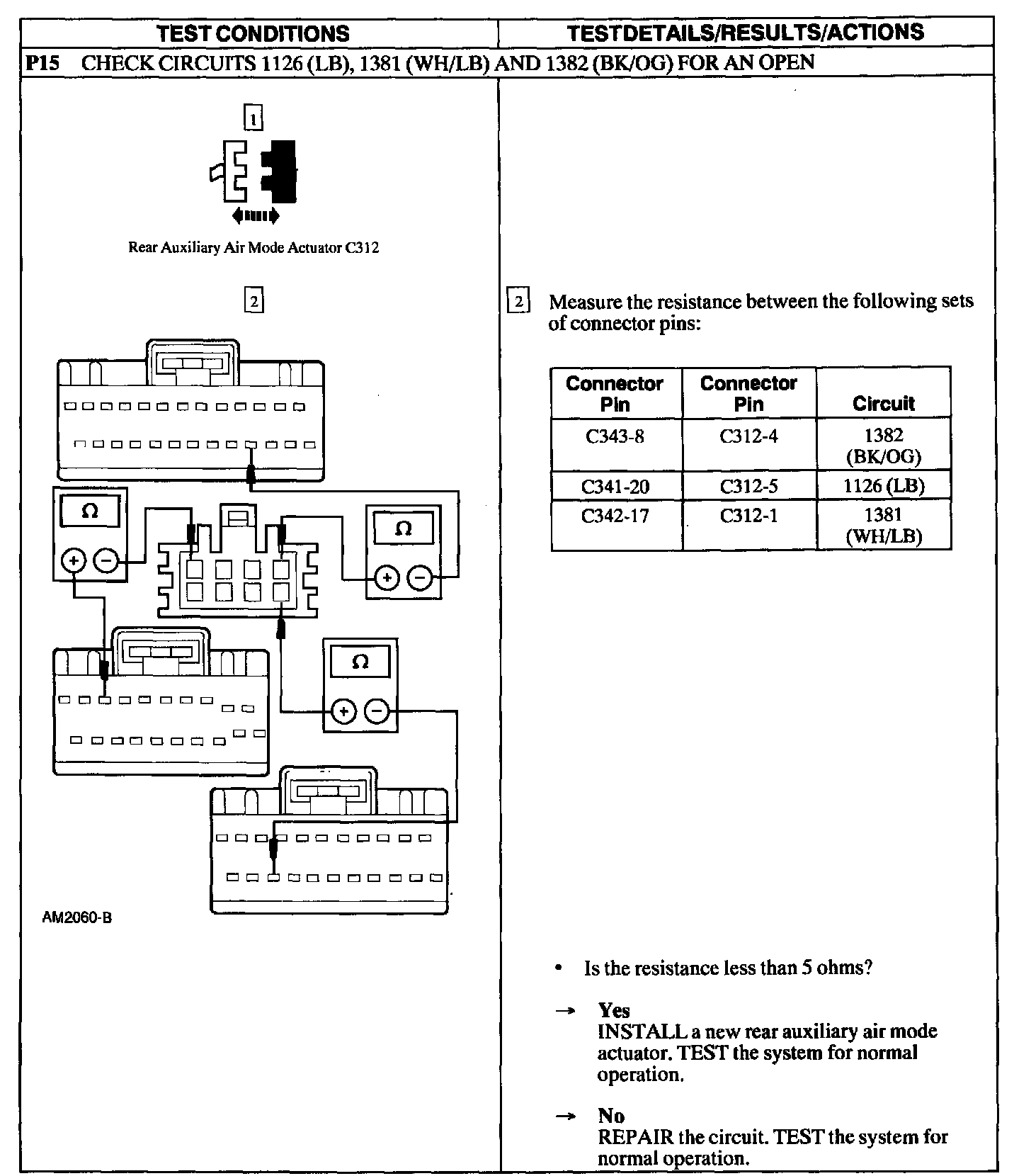

P15:

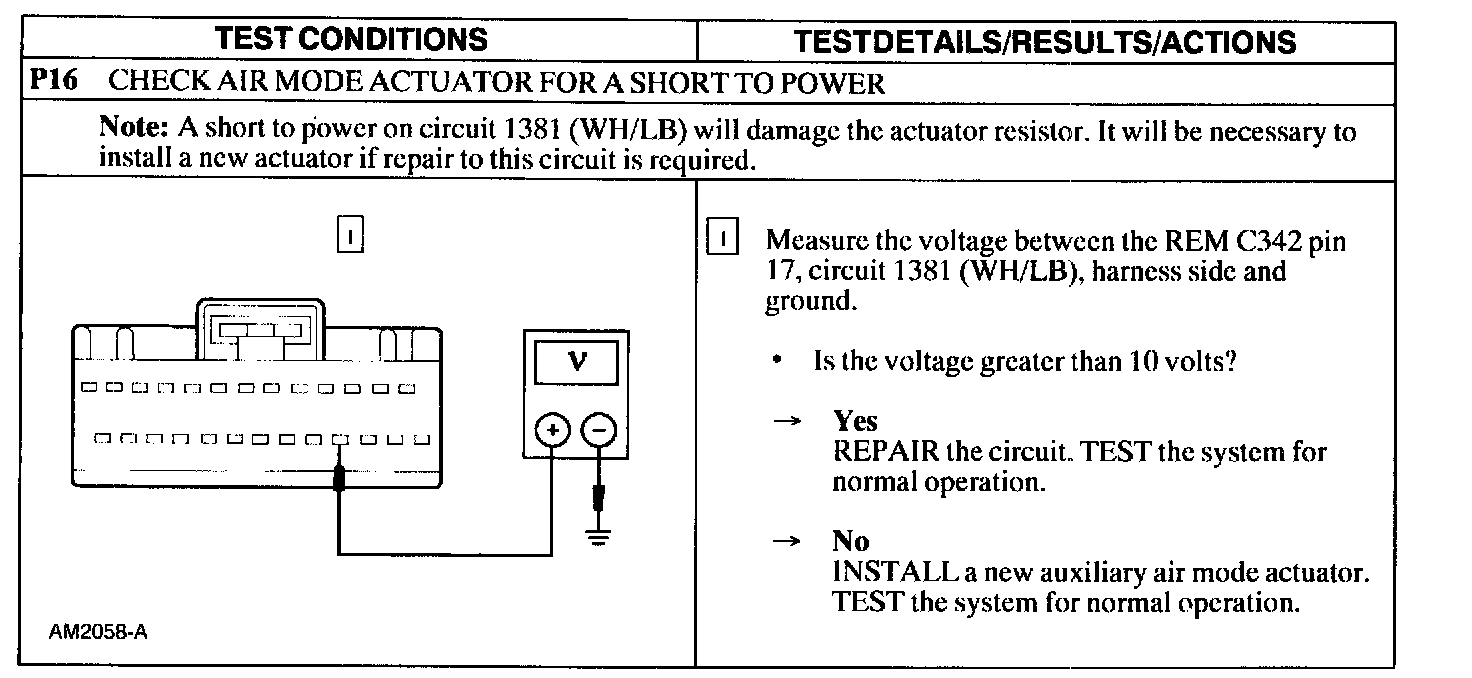

P16:
