Test Q: Temperature Controls Inop W/Front/Rear Aux Controls

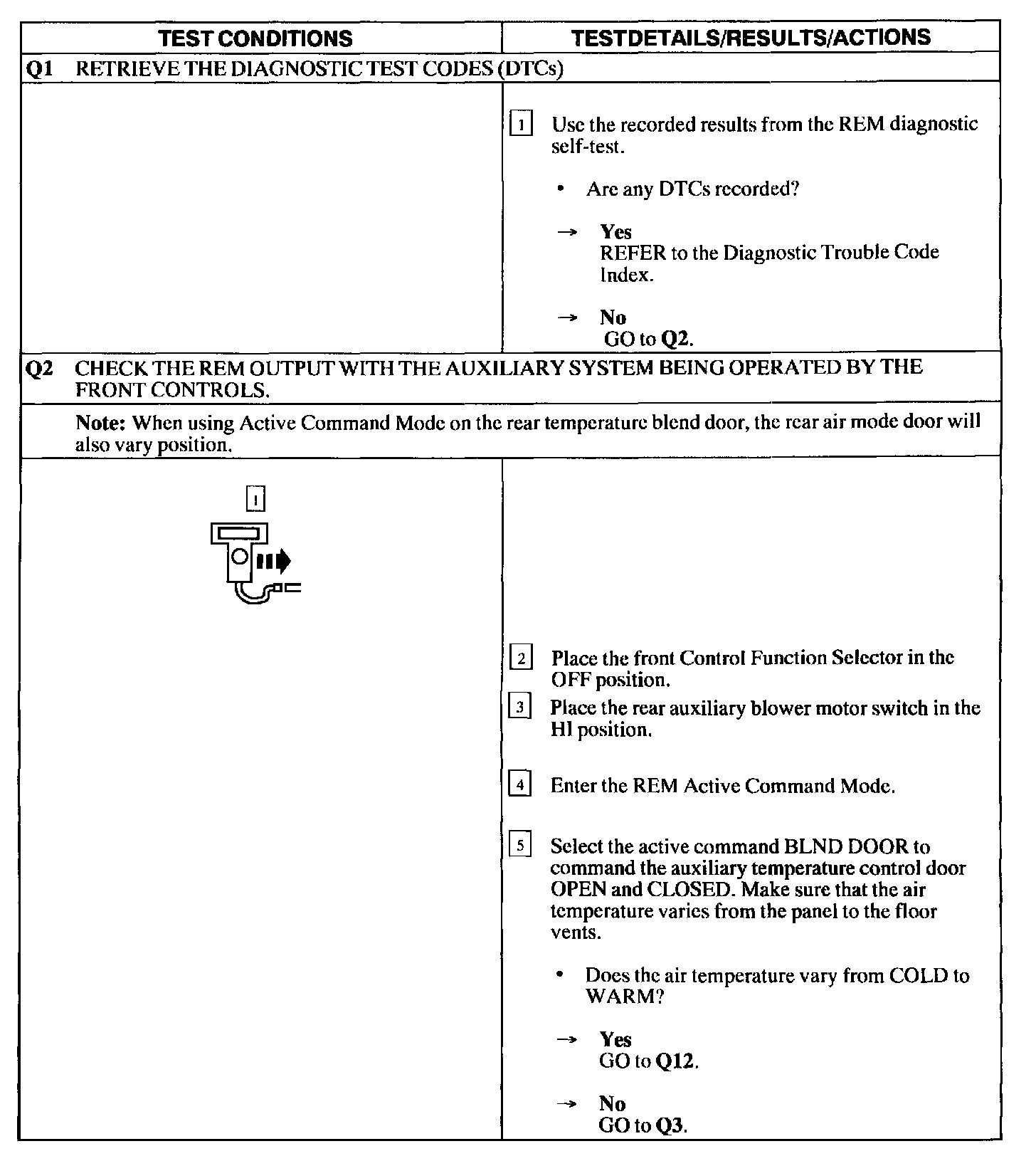

Q1 - Q2:

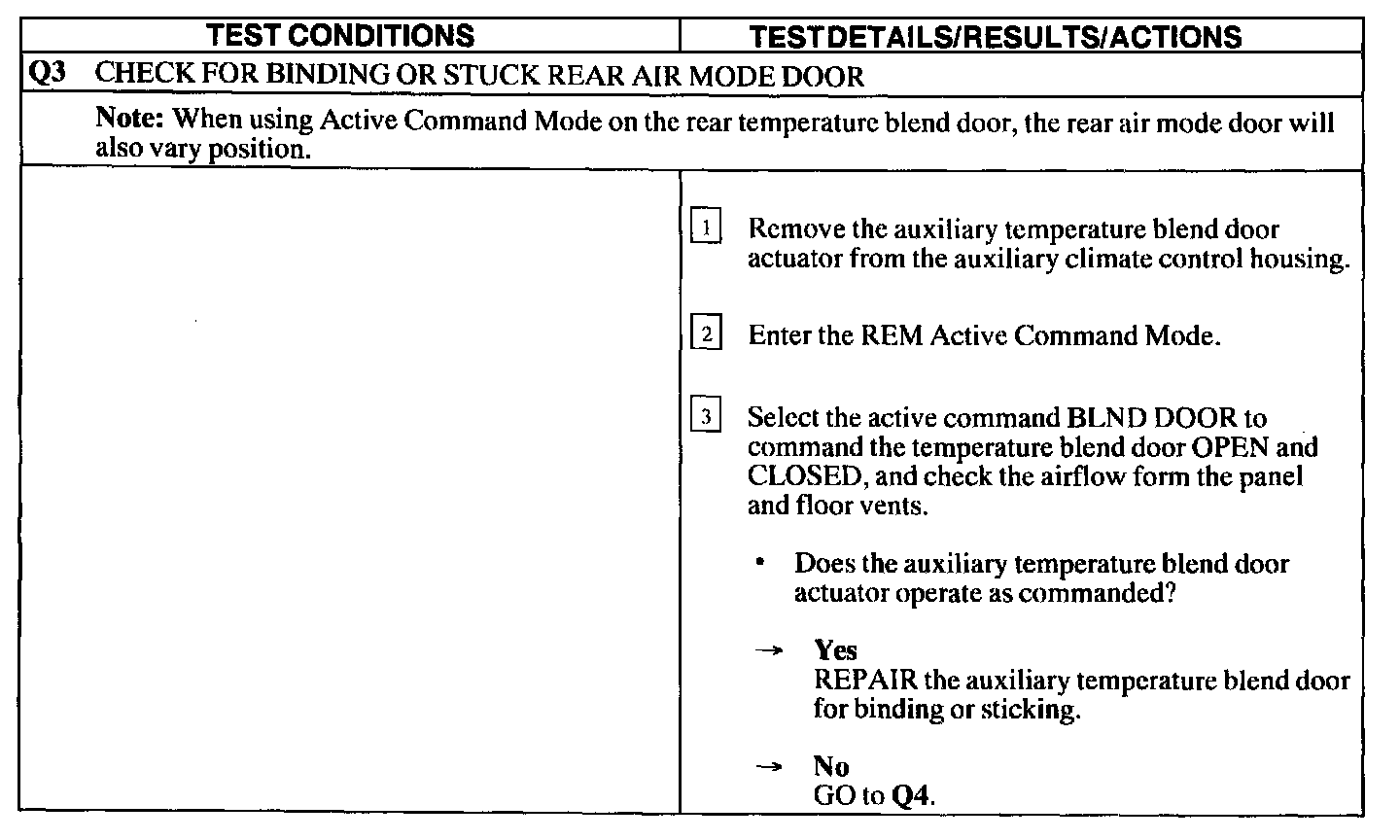

Q3:

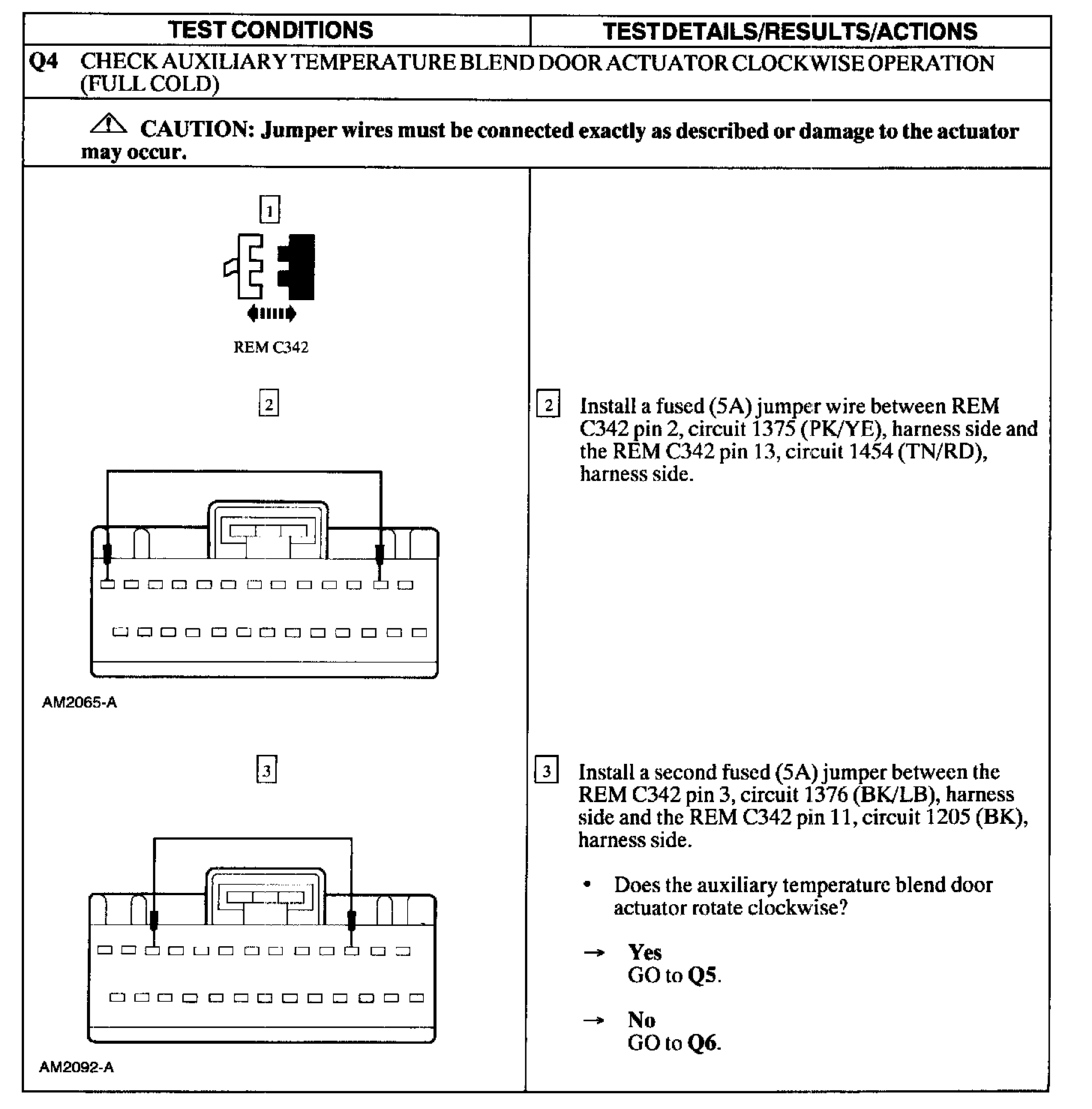

Q4:






Q5 - Q6:






Q7:

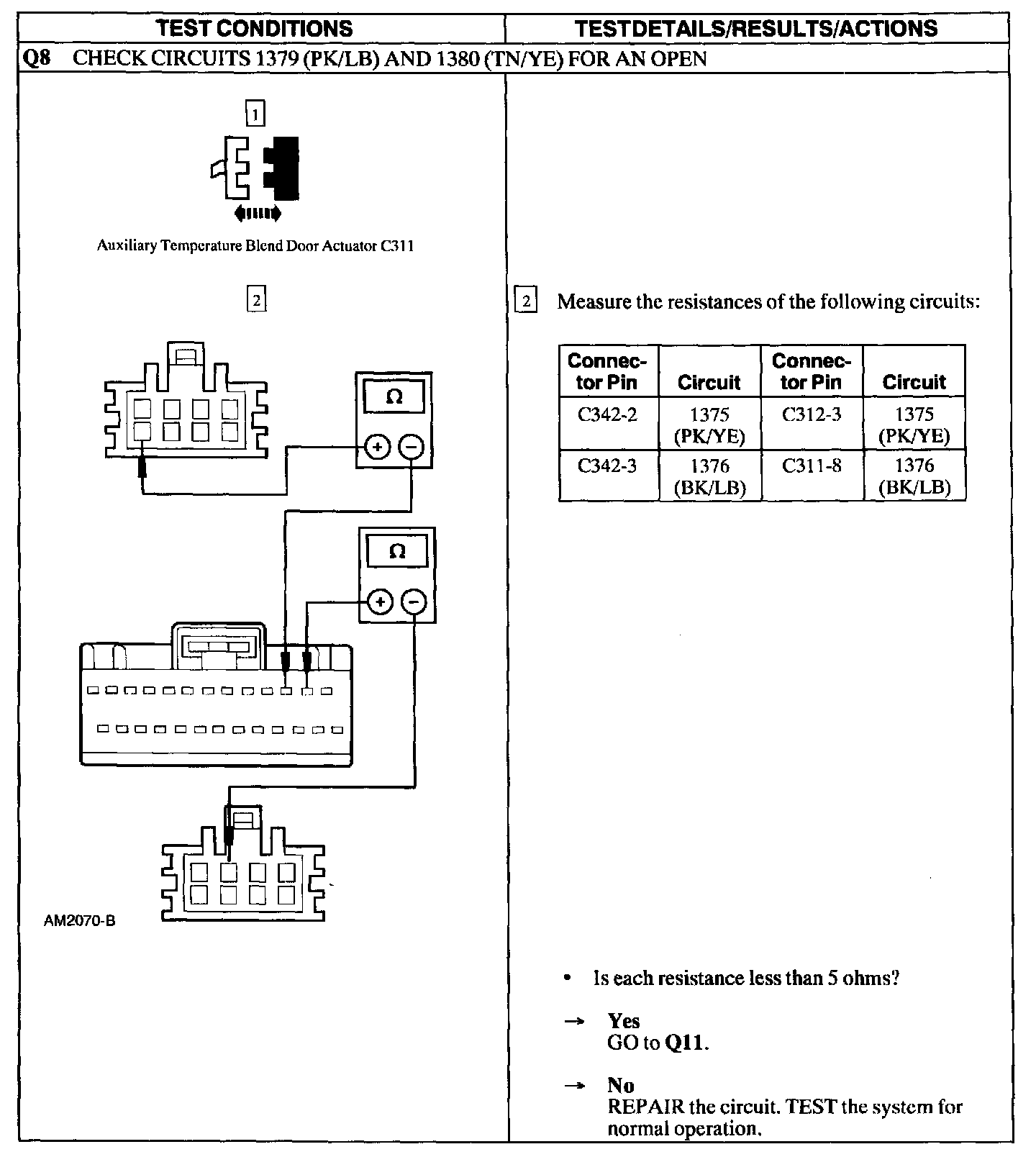

Q8:






Q9 - Q11:






Q12:






Q13 - Q14:

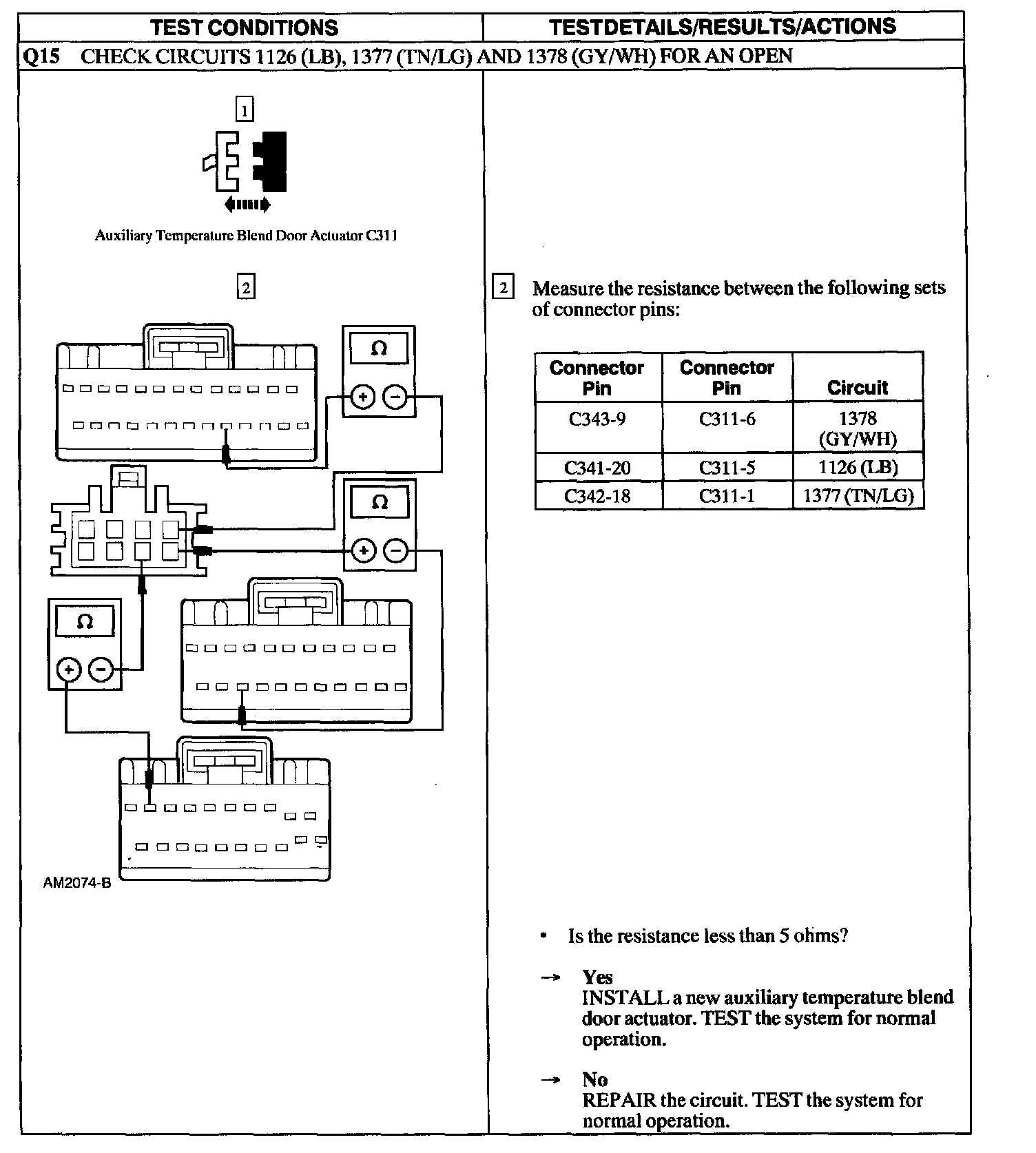

Q15:

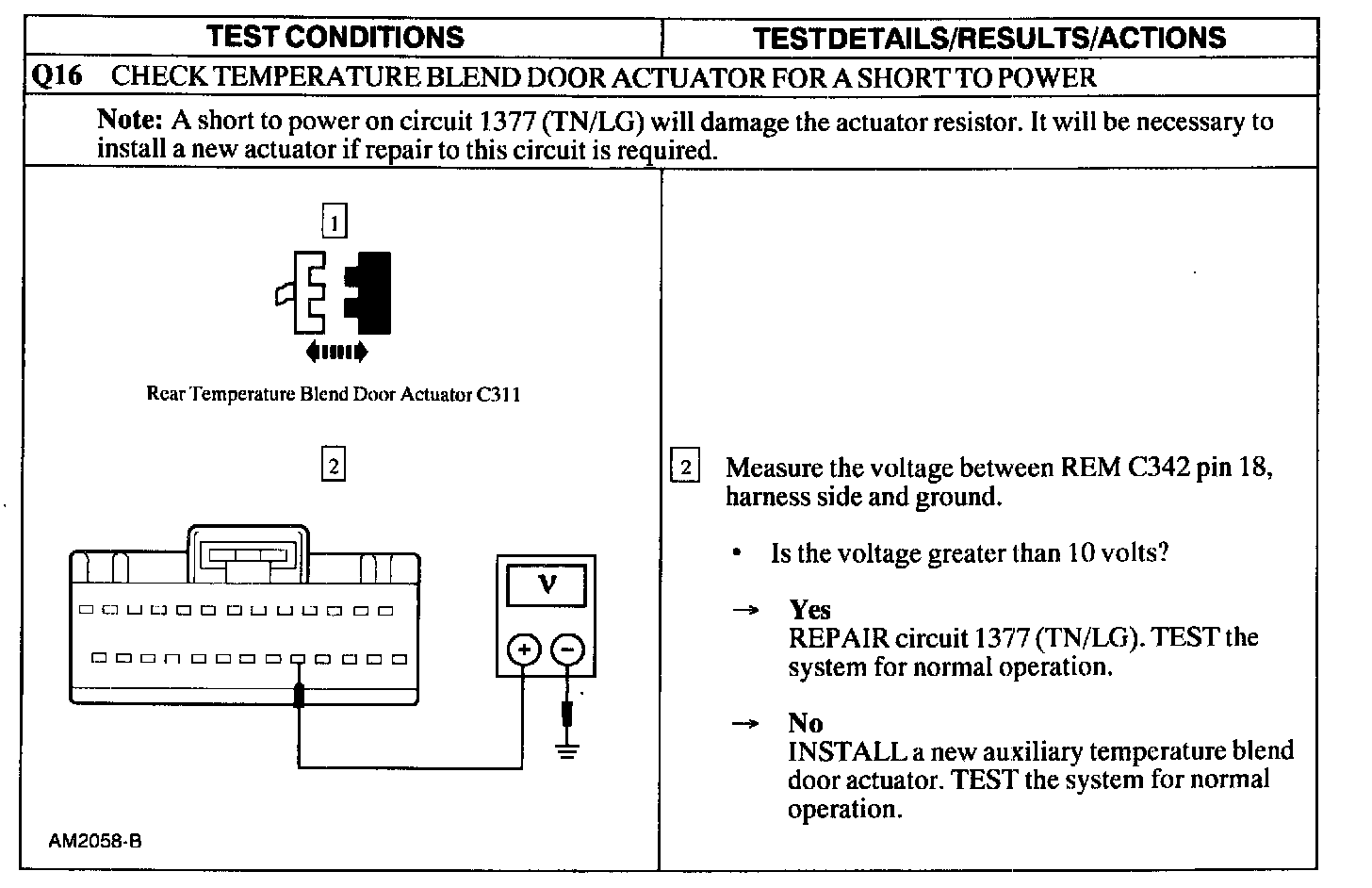

Q16:
