Drive Belt: Service and Repair

Removal





1. Remove the drive belt.

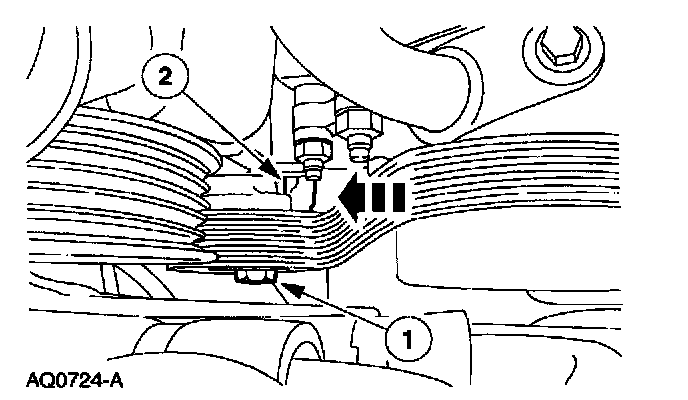

1 Rotate the belt tensioner counterclockwise.
2 Push the spring clip towards the belt tensioner to lock belt tensioner in place.

Installation
1. To install, reverse the removal procedure.
