Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

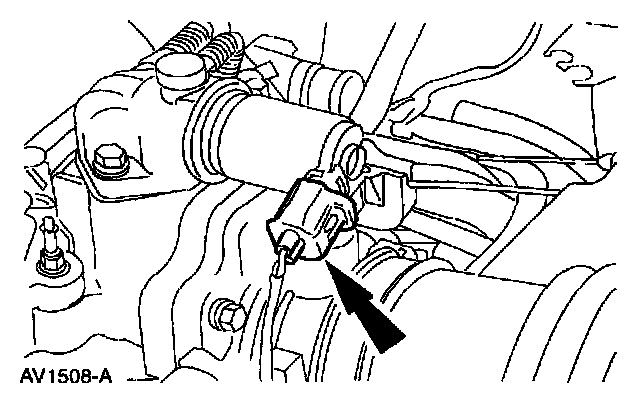

2. Disconnect the Idle Air Control (IAC) electrical connector.

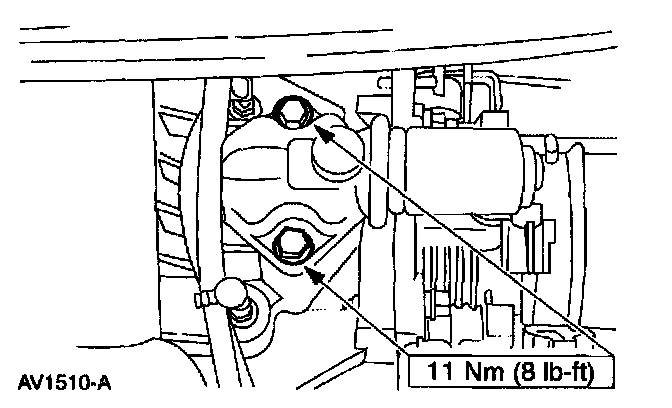

3. Remove the bolts and the IAC valve.
- Discard the gasket.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Install a new IAC valve gasket.
