Electrical Diagrams

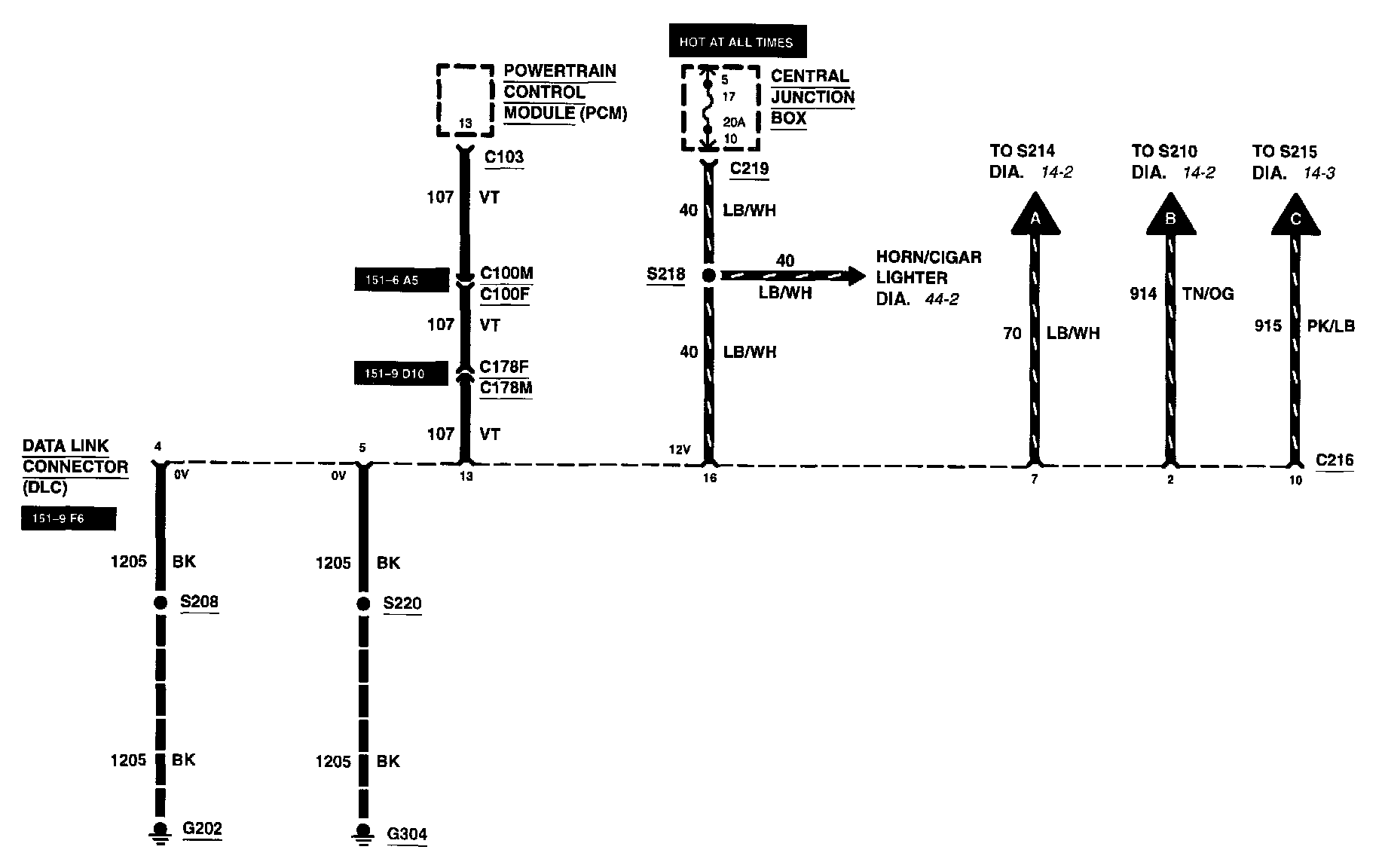

Diagram 14-1:







Central Junction Box
Data Link Connector
Fuse 17
Powertrain Control Module

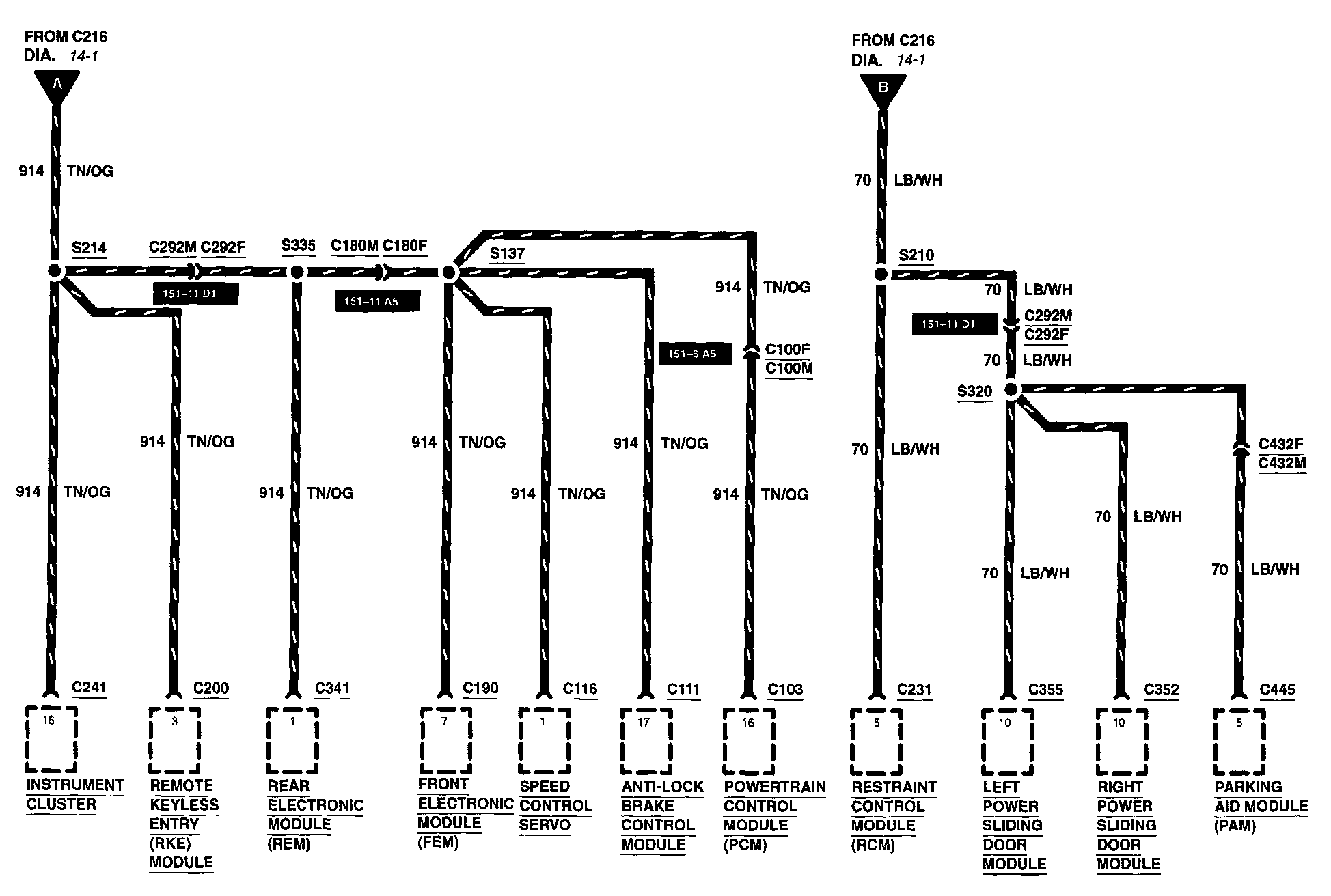

Diagram 14-2:







Anti-Lock Brake Control Module
Front Electronic Module
Instrument Cluster
Left Power Sliding Door Module
Parking Aid Module
Powertrain Control Module
Rear Electronic Module
Remote Keyless Entry Module
Restraint Control Module
Right Power Sliding Door Module
Speed Control Servo

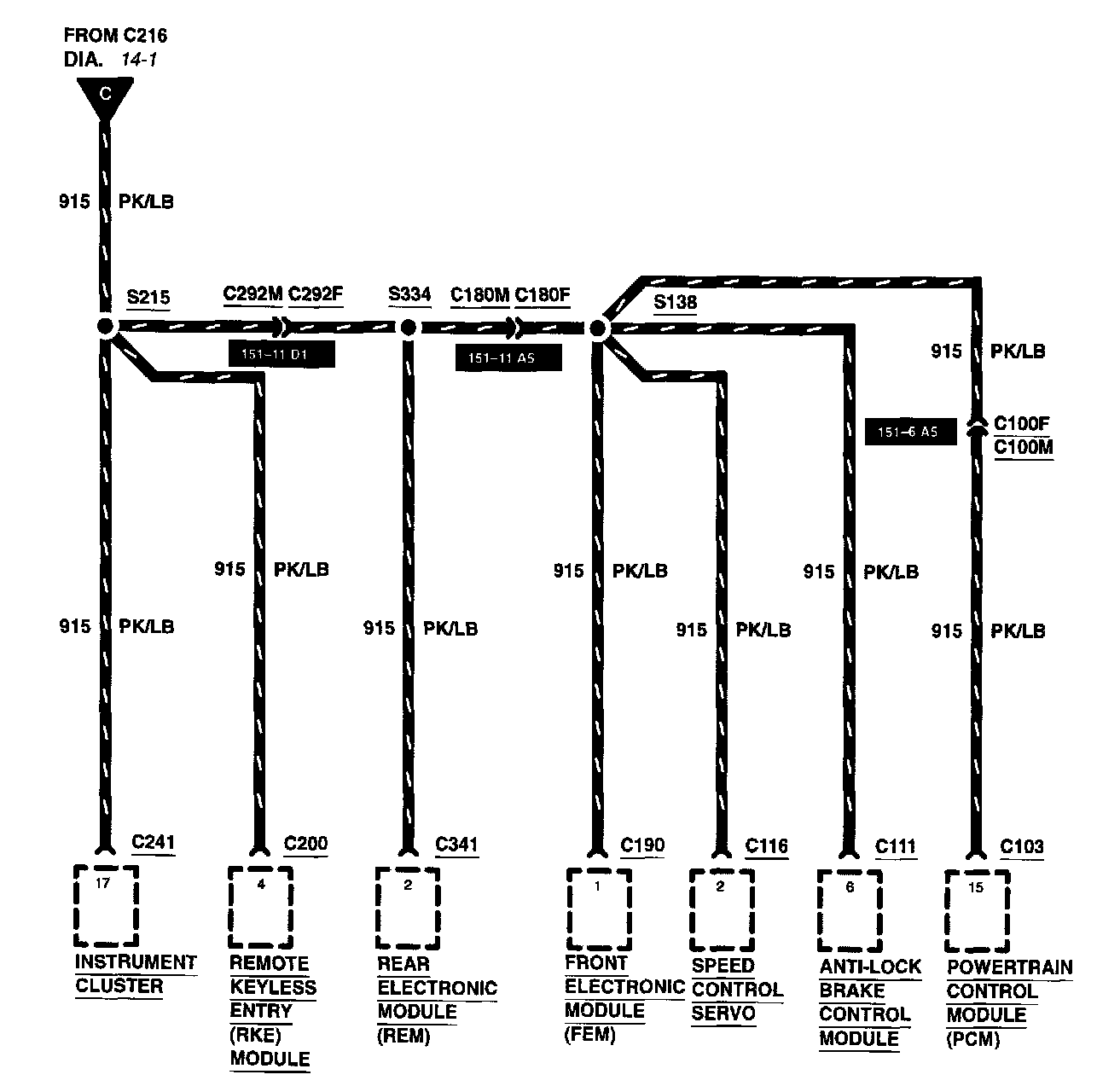

Diagram 14-3:







Anti-Lock Brake Module
Front Electronic Module
Instrument Cluster
Powertrain Control Module
Rear Electronic Module
Remote Keyless Entry Module
Speed Control Servo
