Coil Bracket
REMOVAL 1.
Remove the
ignition coil. For additional information, refer to Ignition Coil.
2.

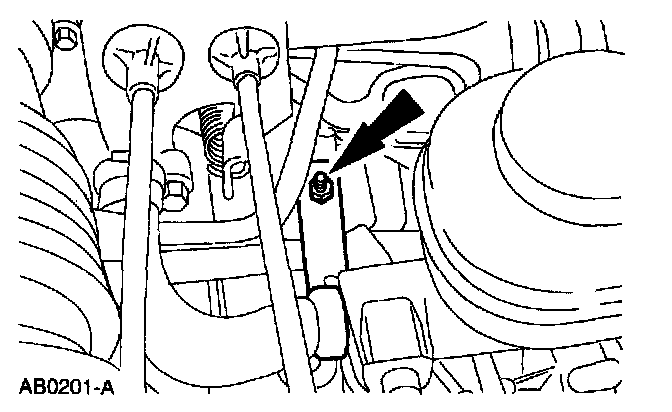

Remove the nut and heater hose clip from the
ignition coil bracket.
3.

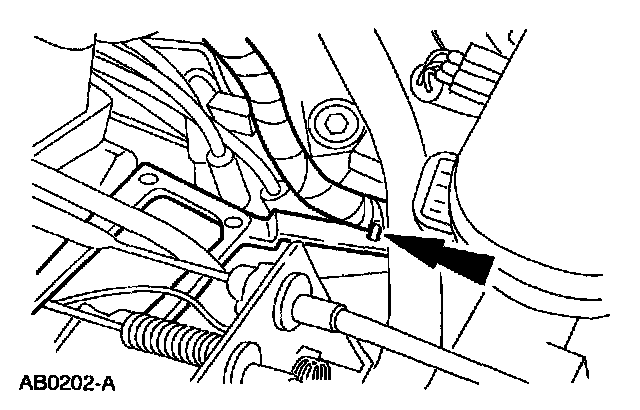

Remove the wiring harness from the
ignition coil bracket.
4.

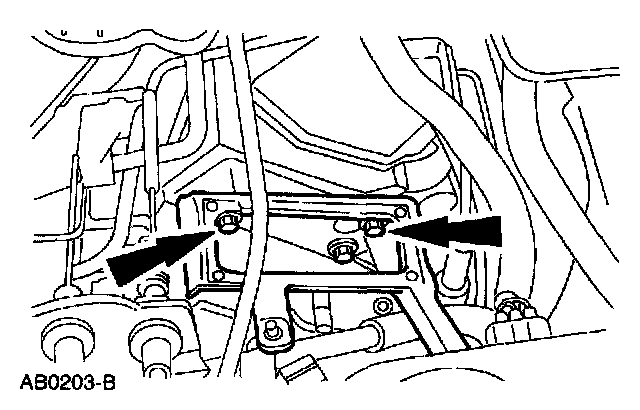

Remove the bolts and the
ignition coil bracket.

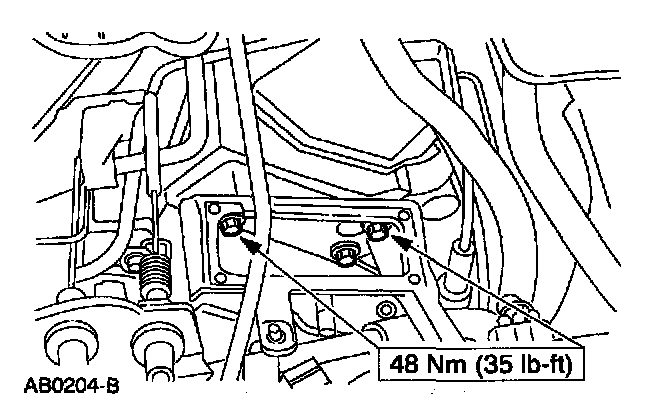

INSTALLATION 1.
To install, reverse the removal procedure.
