Coil Pack

"AllData Editors Note:

Customers have reported success using the following spark plug wire placement on the coil pack."






REMOVAL
1. Disconnect the electrical connector from the ignition coil.

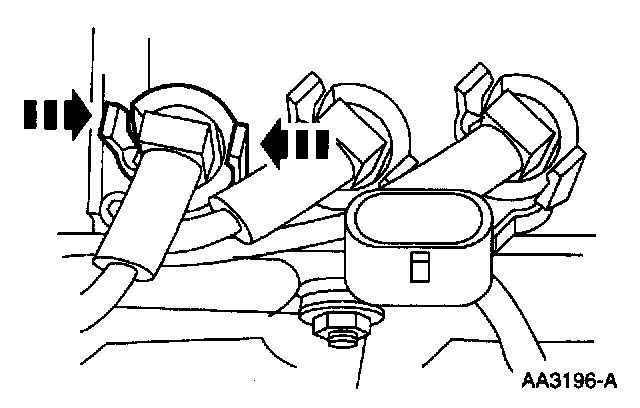

2. Disconnect the spark plug wires by squeezing the locking tabs and twisting while pulling upward.

CAUTION: It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

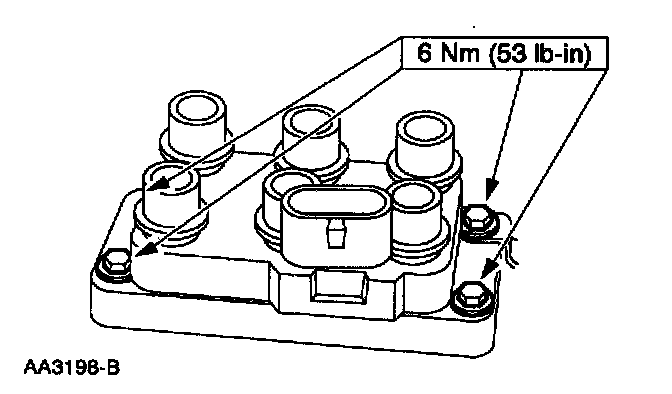

3. Remove the four bolts and the ignition coil.


INSTALLATION







1. To install, reverse the removal procedure.
