Parking Assist Control Module: Service and Repair

REMOVAL
1. Remove the RR quarter trim panel.

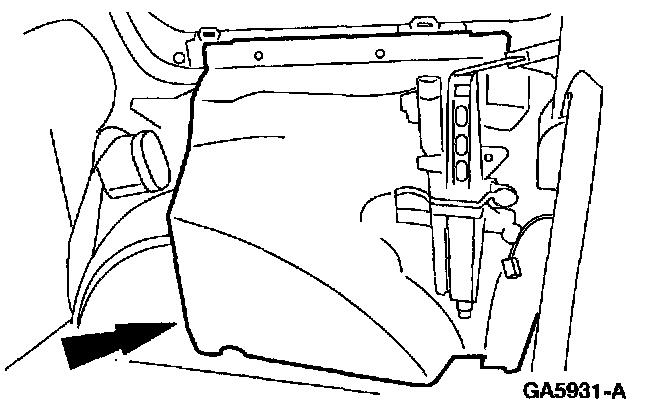

2. Position the sound insulator aside.

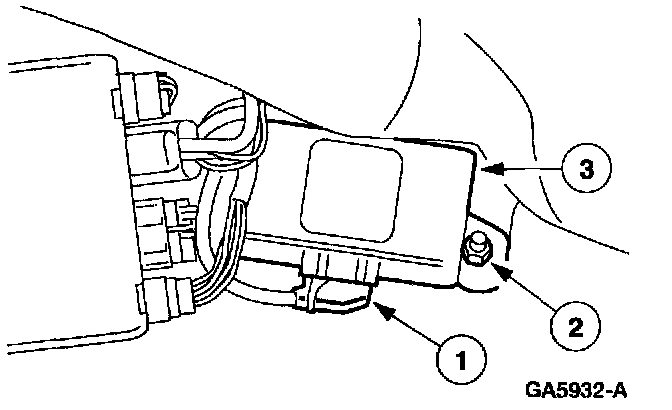

3. Remove the PAM.
1 Disconnect the electrical connector.
2 Remove the nut.
3 Remove the PAM.

INSTALLATION
1. To install, reverse the removal procedure.
