Alternator: Description and Operation

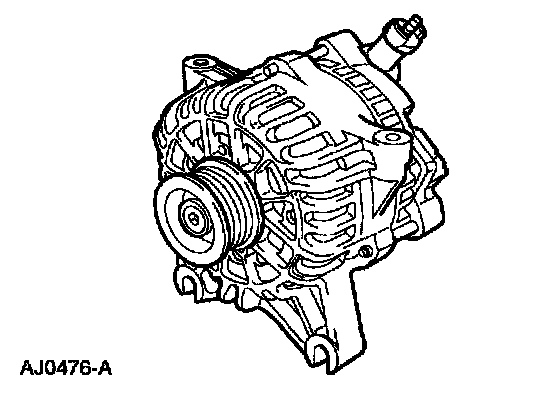

The generator on this vehicle is monitored and controlled by the Powertrain Control Module (PCM). The PCM monitors the voltage regulator and sends a duty cycle command back to the voltage regulator to regulate the amount of field current supplied to the generator. The generator has an internal voltage regulator that is not replaced separately. The generator and voltage regulator are replaced as an assembly.
