Pinout Values and Diagnostic Parameters

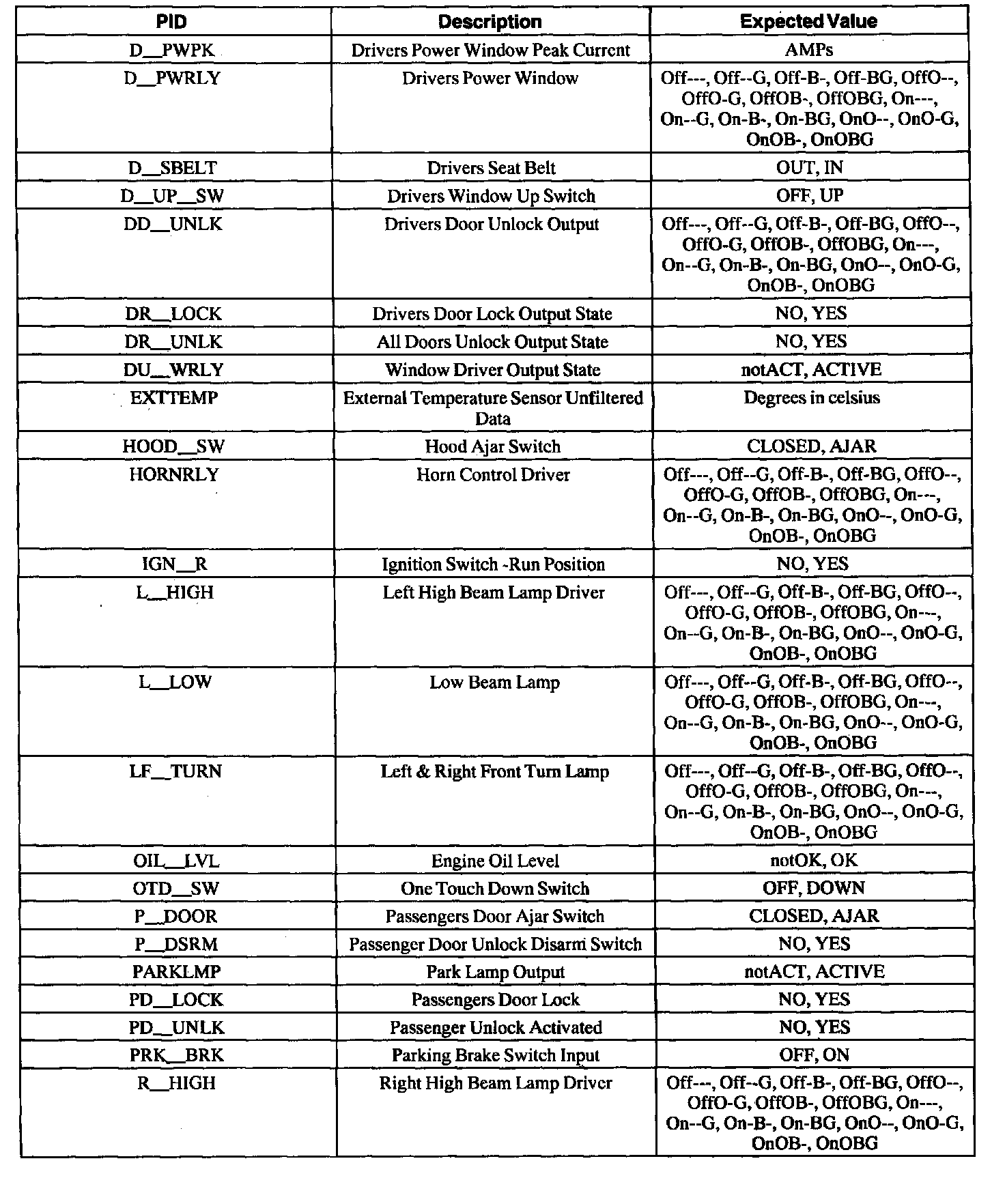

1 Of 3:

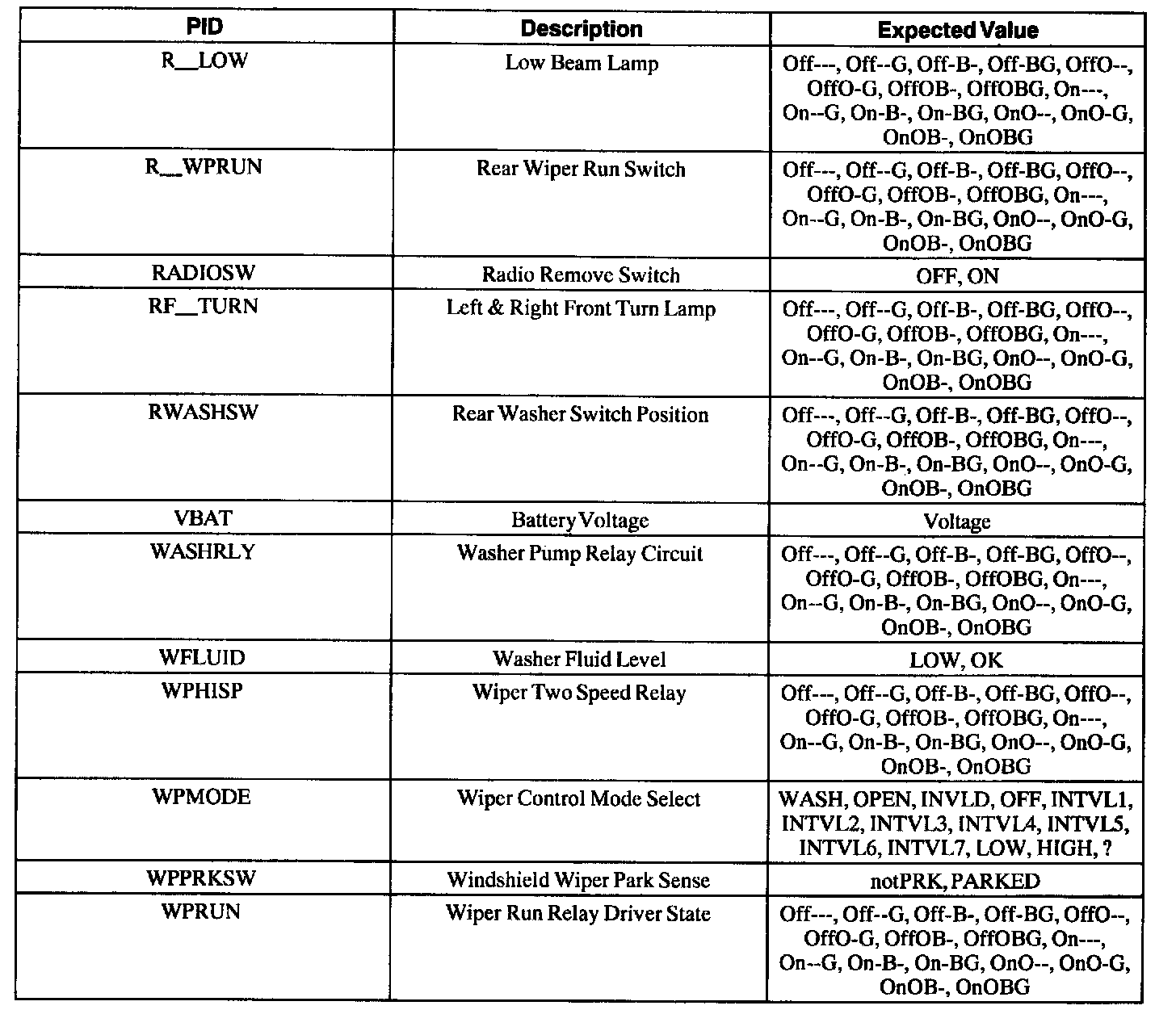

2 Of 3:

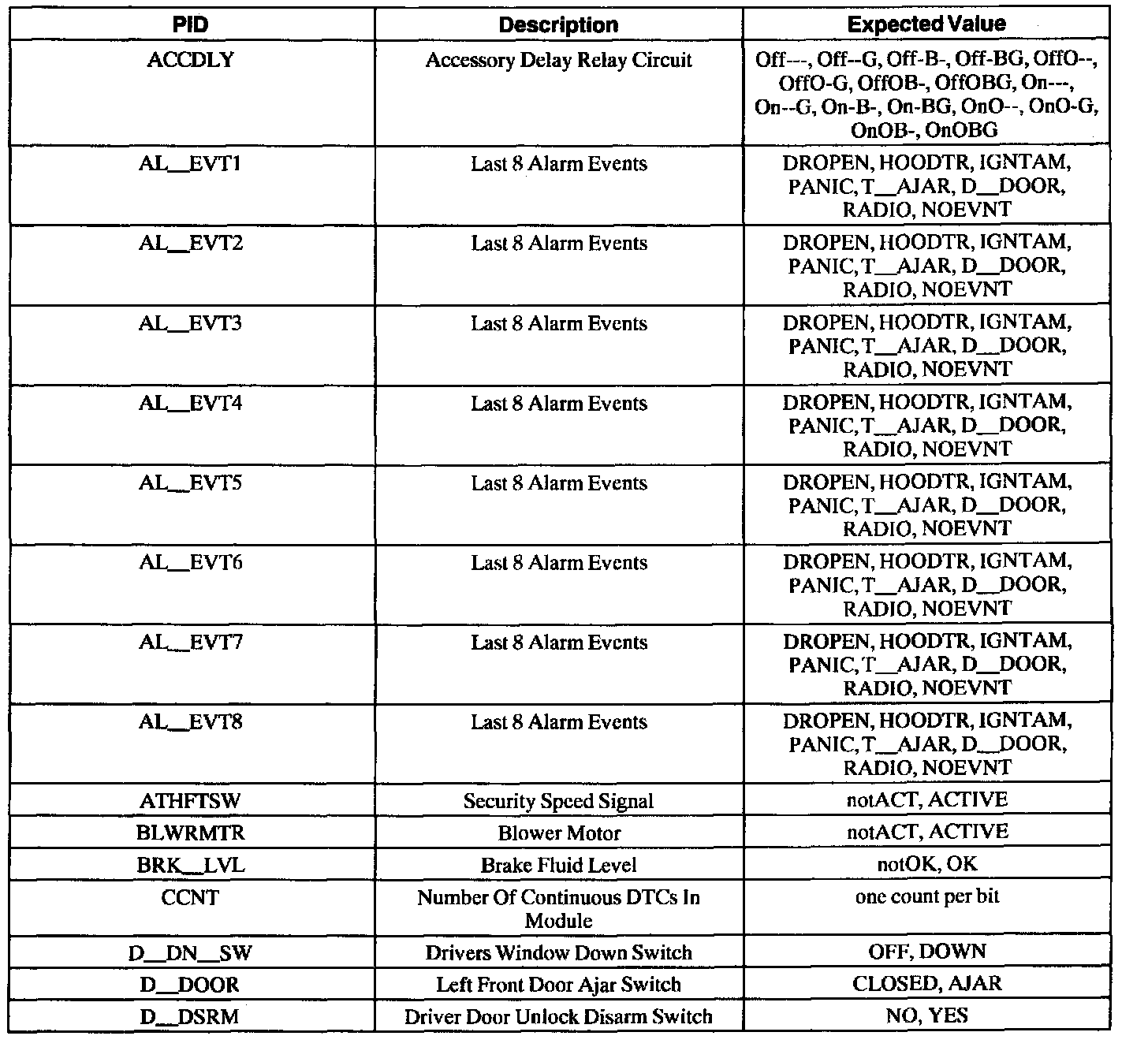

3 Of 3:





FEM Parameter Identification (PID) Index
