Test A: Engine Does Not Crank

A1 - A2:

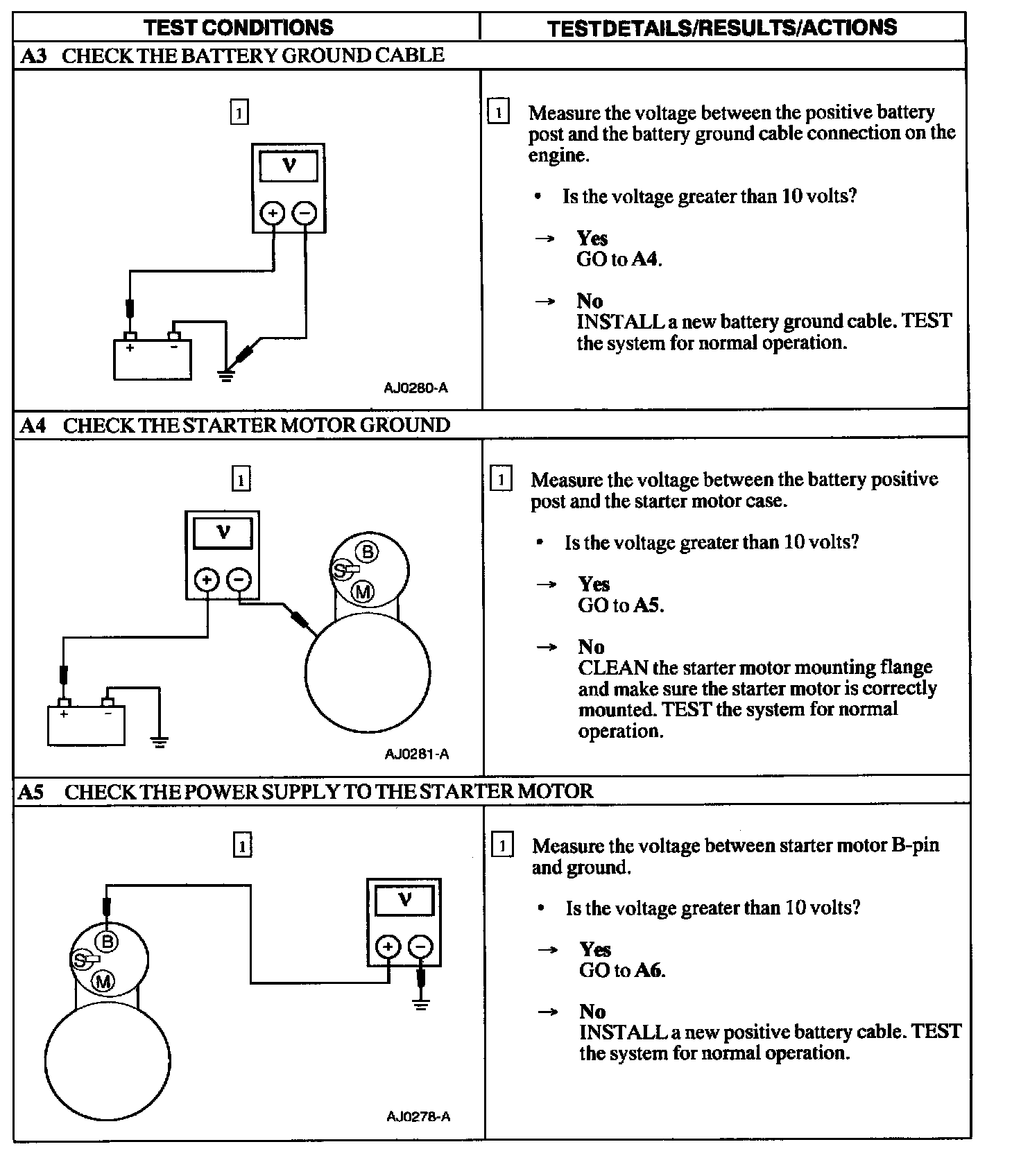

A3 - A5:

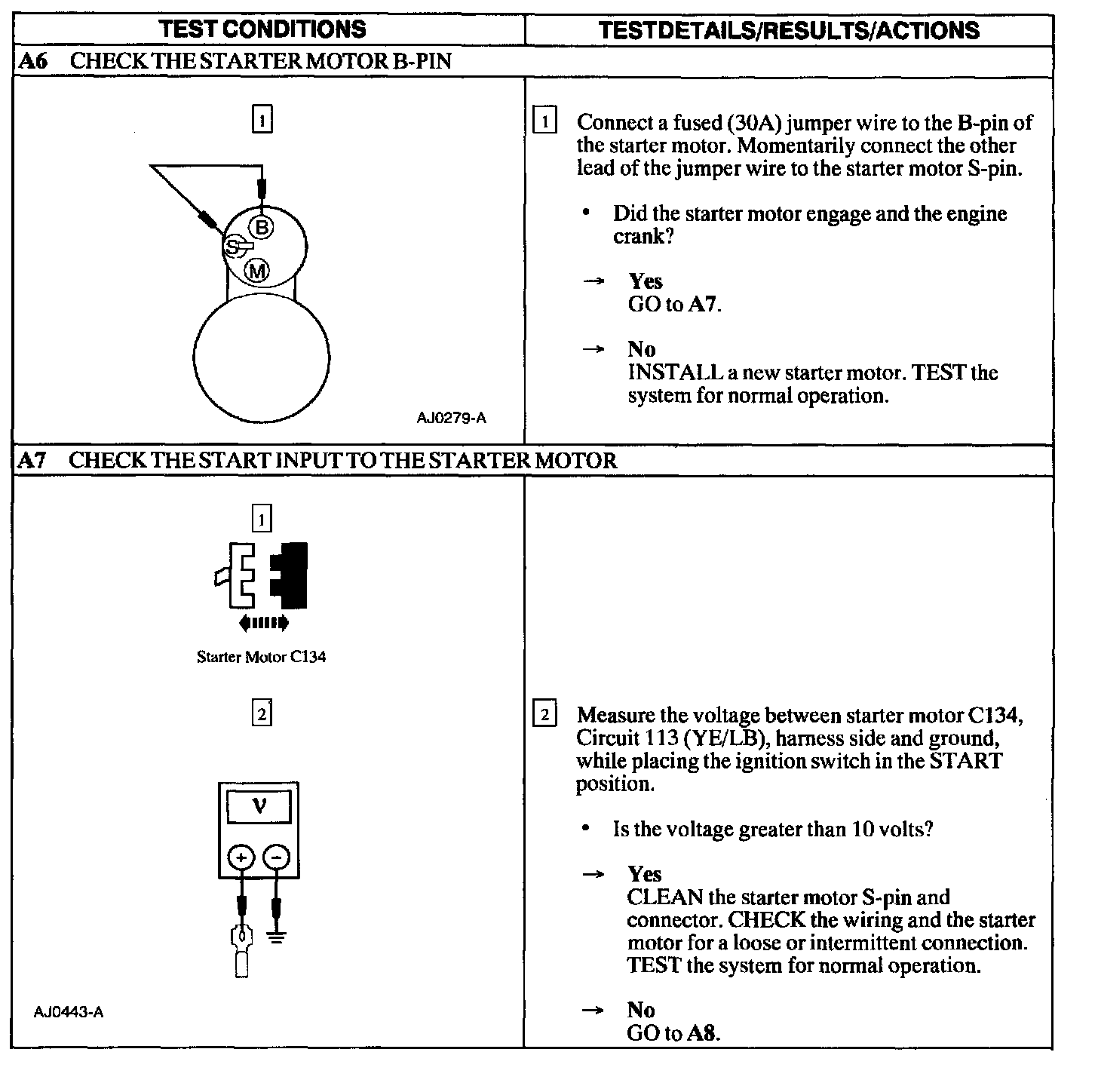

A6 - A7:

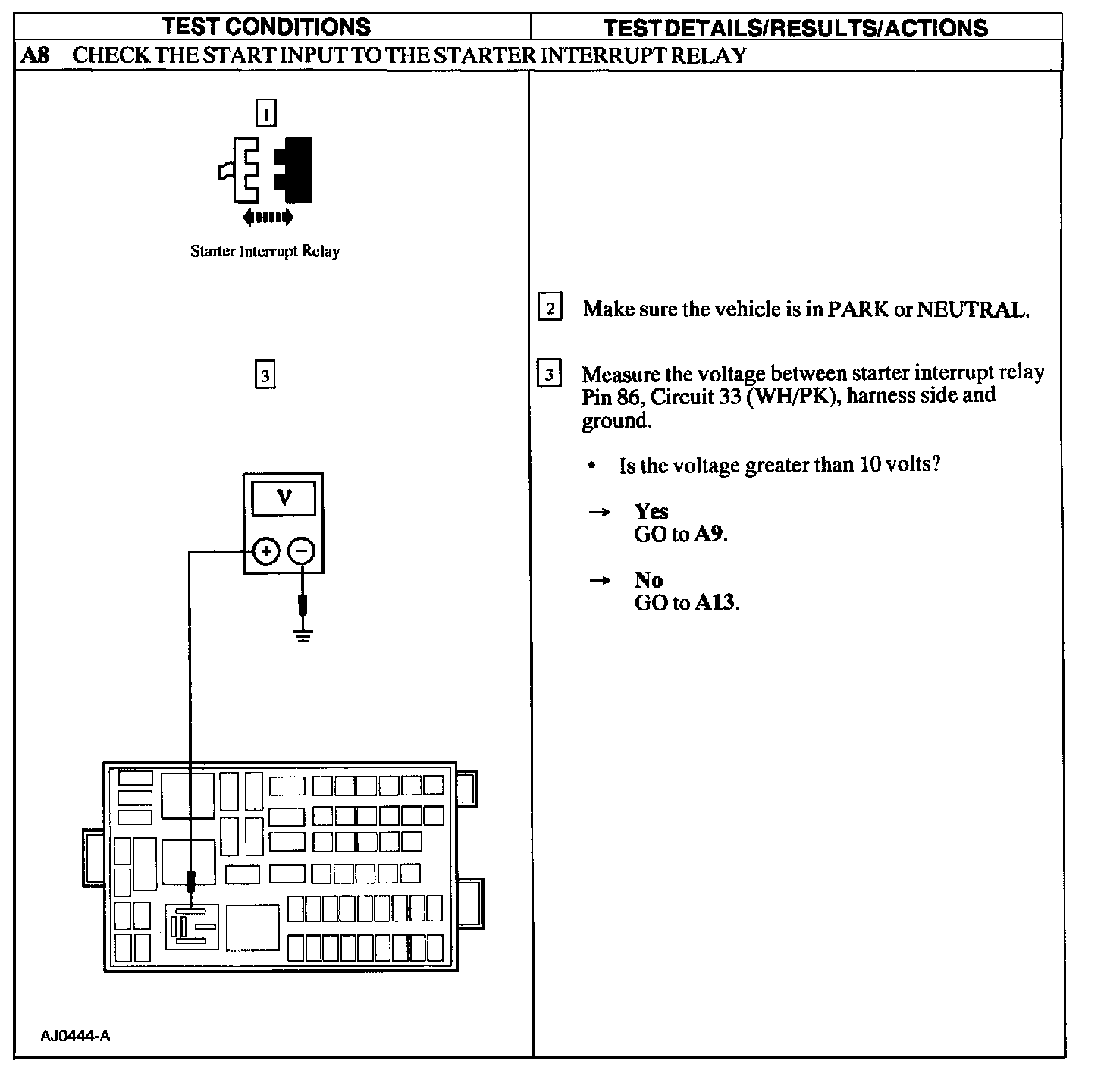

A8:

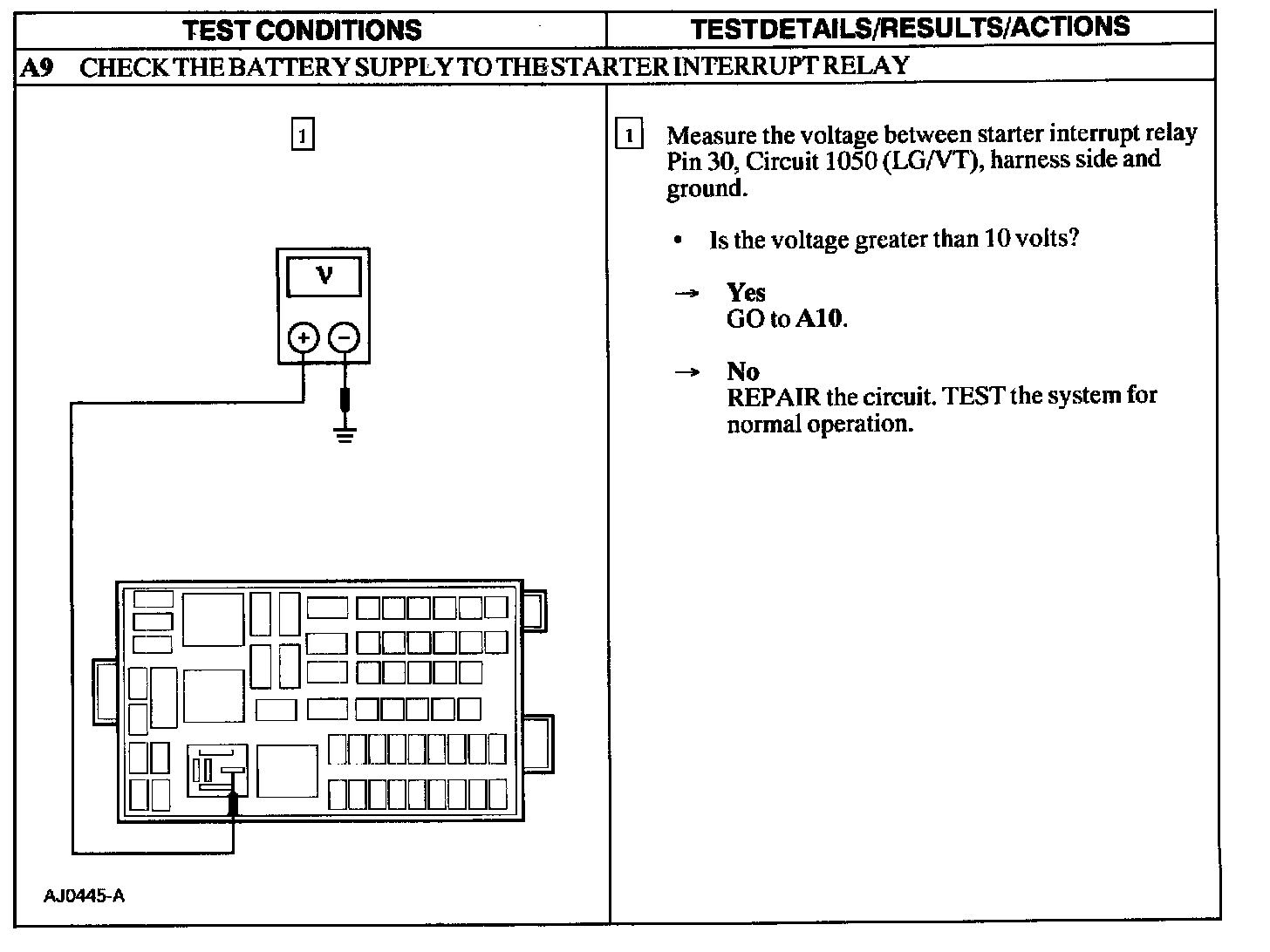

A9:






A10:

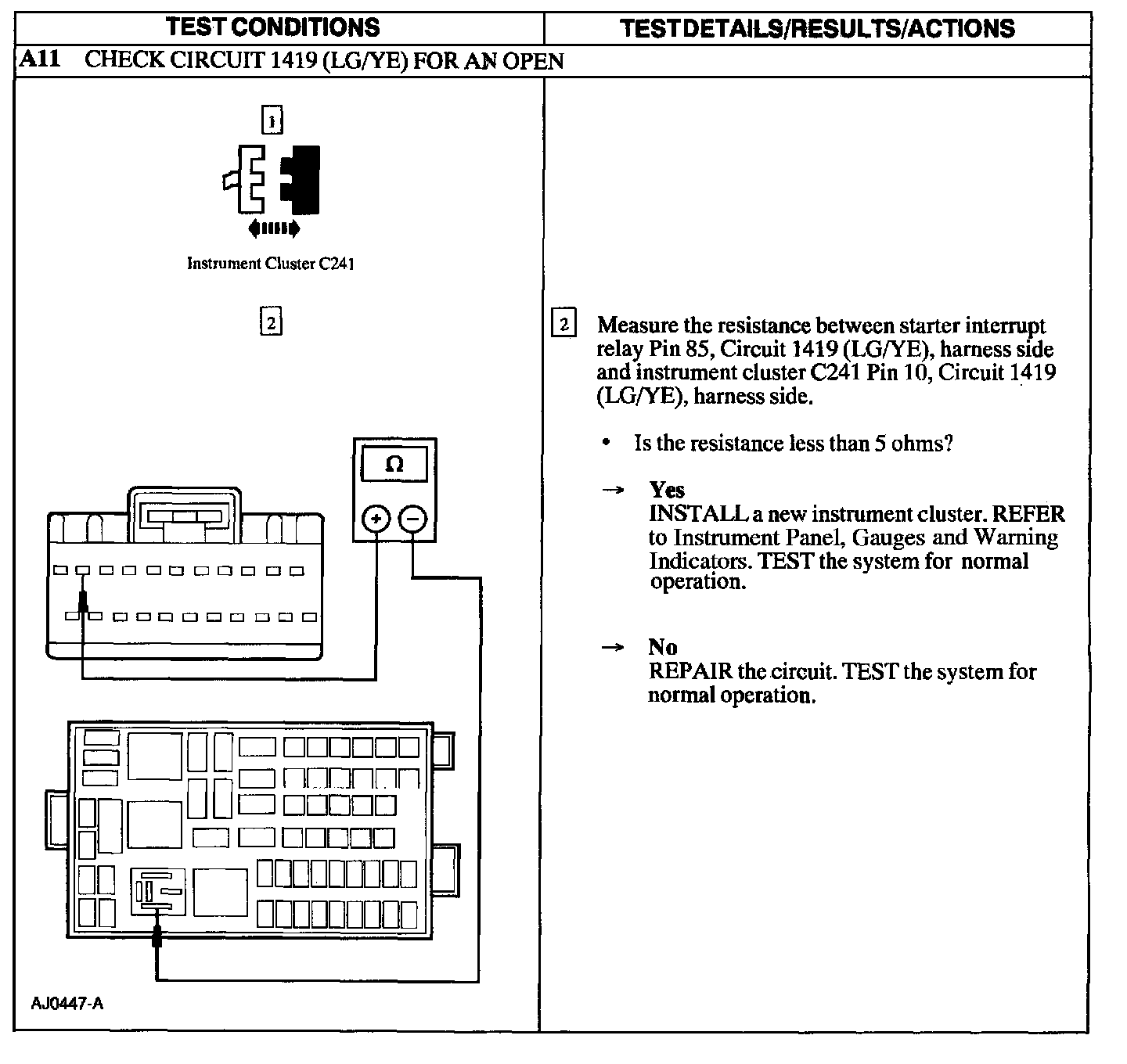

A11:

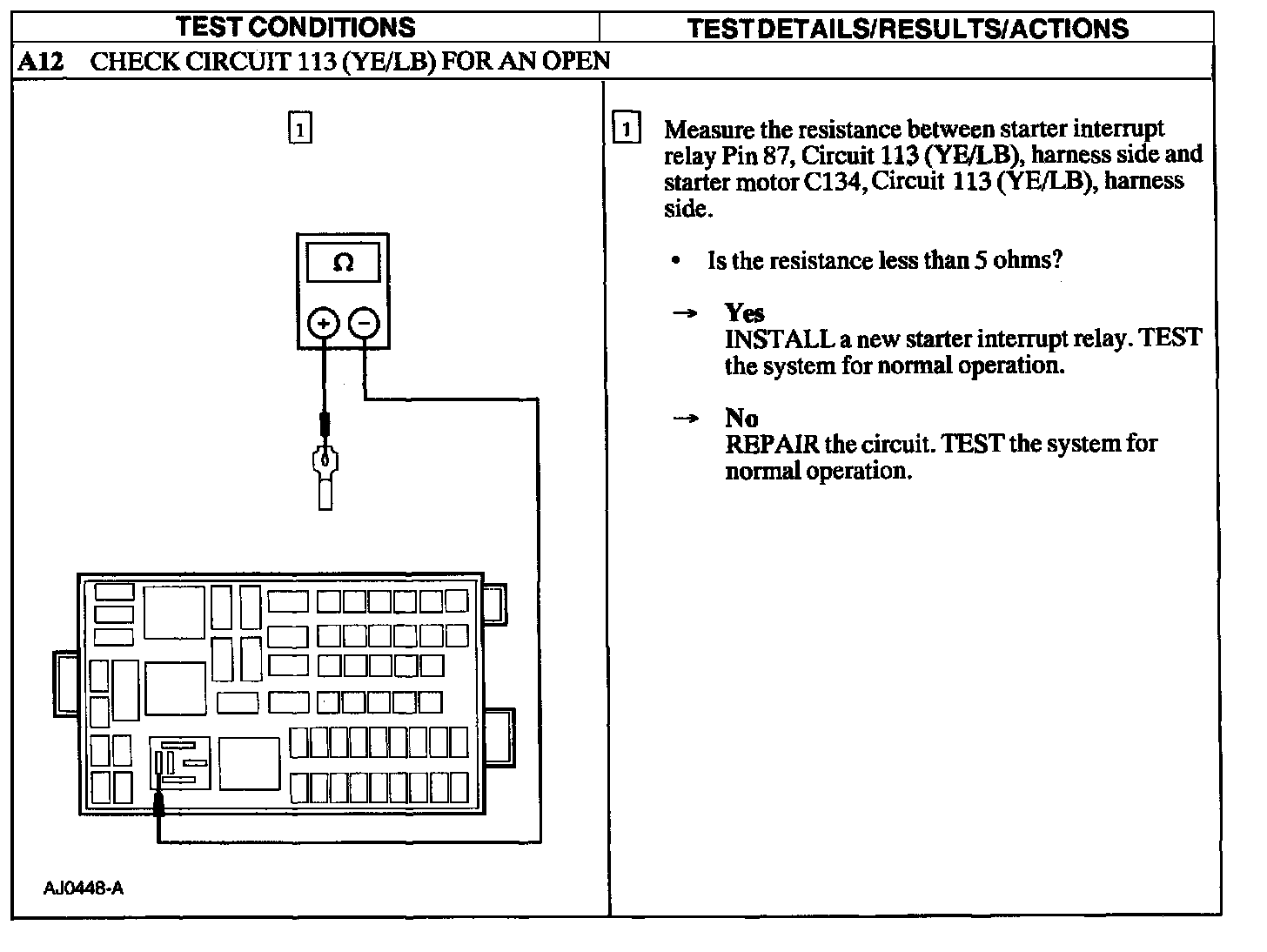

A12:

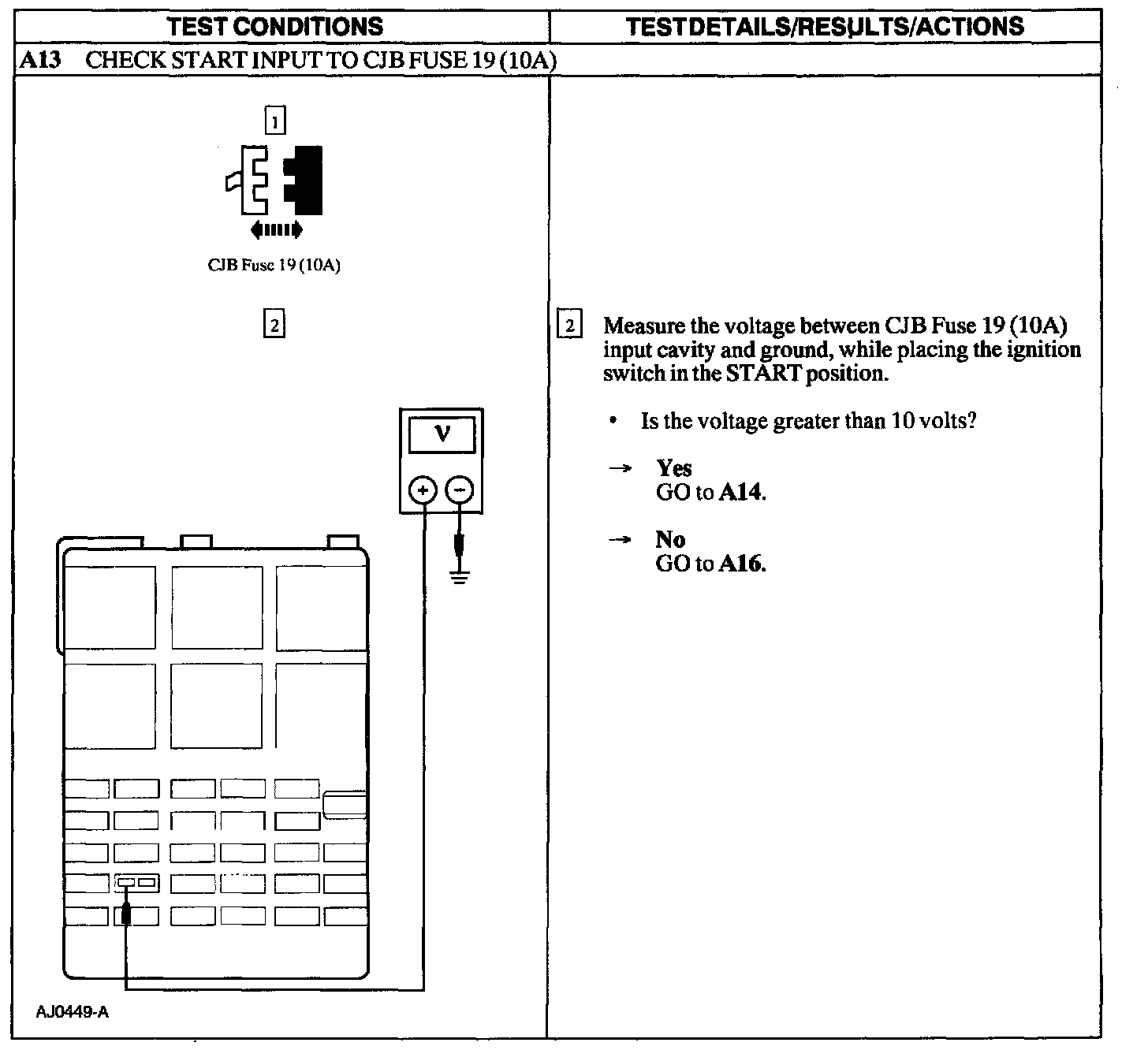

A13:

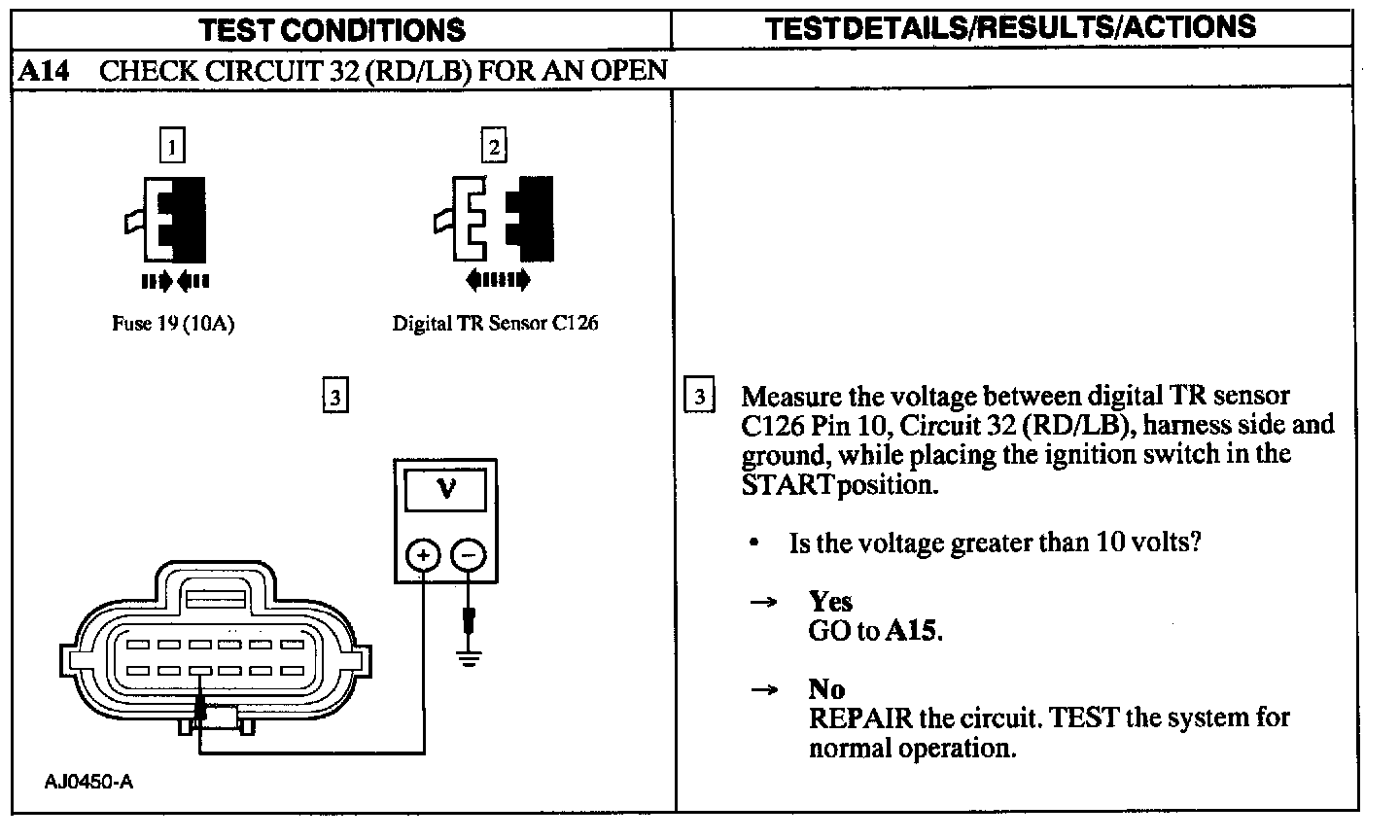

A14:

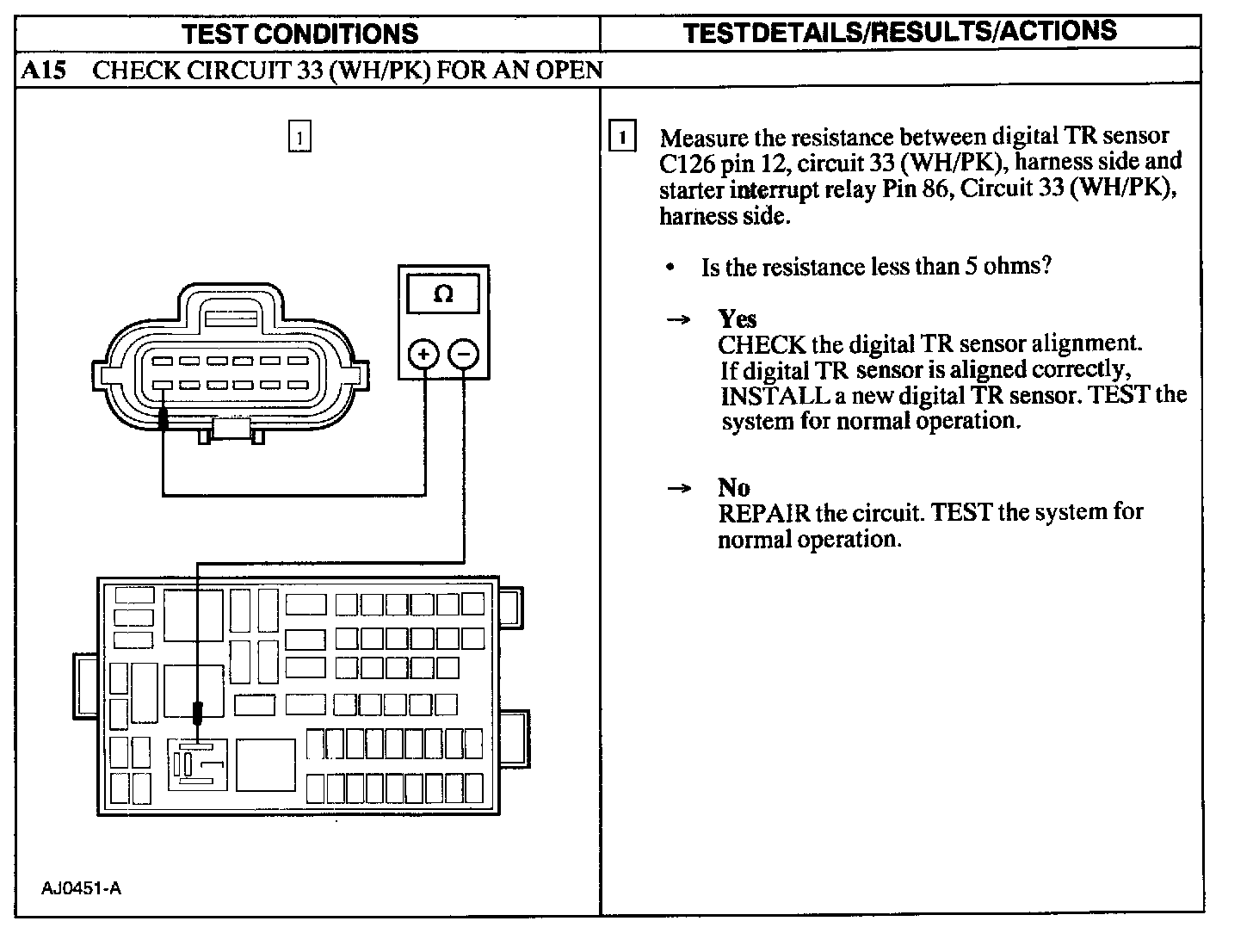

A15:

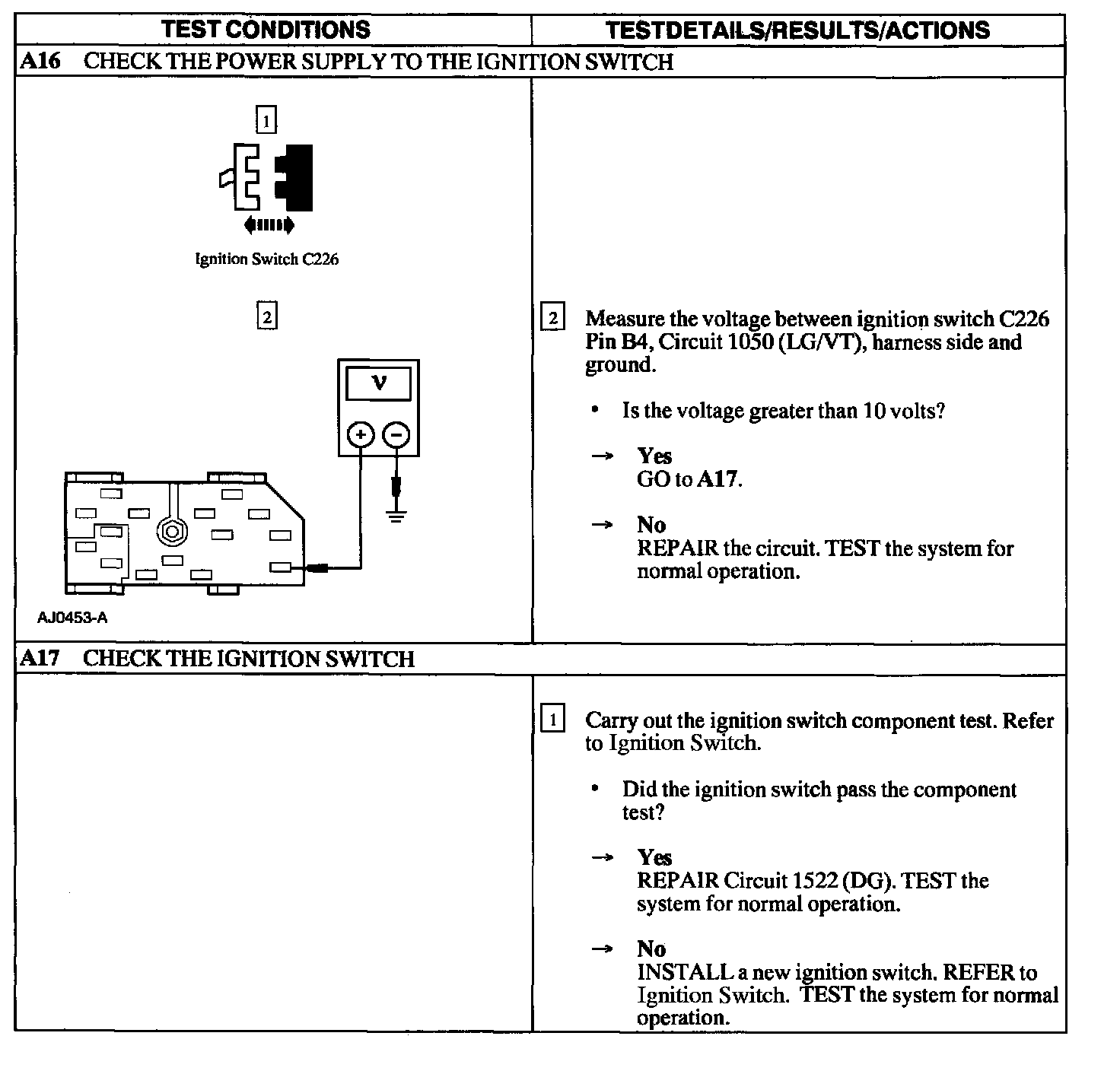

A16 - A17:
