Front Door Window Glass: Service and Repair

REMOVAL
1. Remove the front door trim panel.






2. Remove the watershield.
3. Position the window regulator control switch and connect the electrical connectors.
4. Connect the battery ground cable.







5. Position the door window glass halfway down to gain access to the door window glass rivets.
6. Disconnect the battery ground cable.

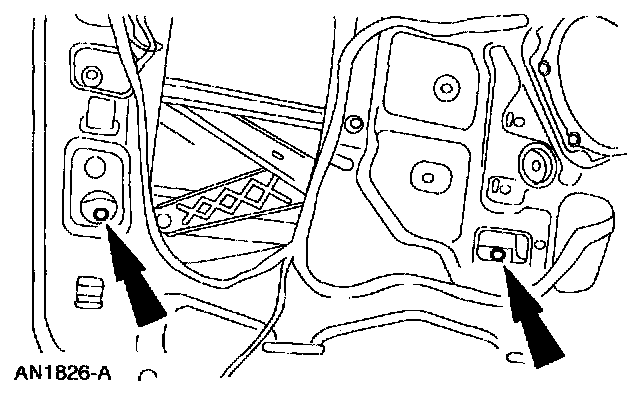

7. Remove the door window glass rivets.

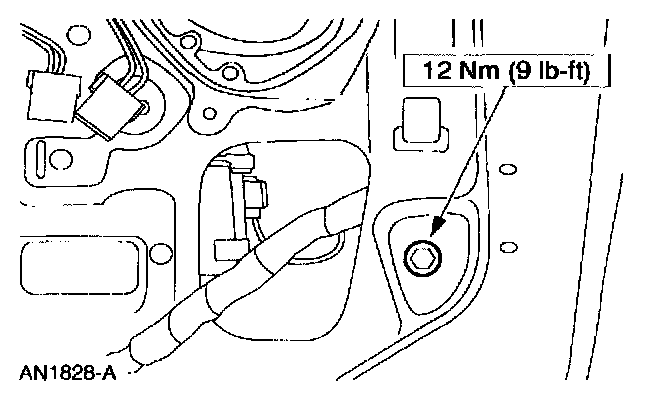

8. Remove the front door glass top run bolt.

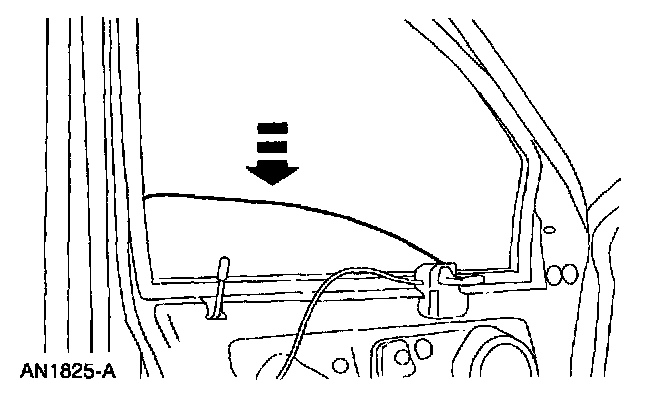

9. Remove the front door window glass.

INSTALLATION







1. To install, reverse the removal procedure.
