Quarter Window Glass: Adjustments

1. Remove the quarter trim panel.






2. Loosen the screws.

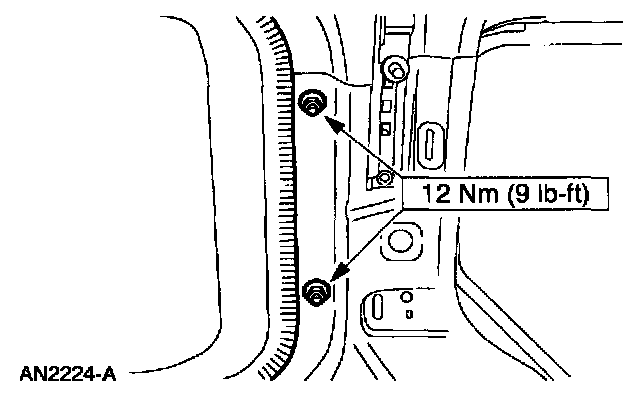

3. Loosen the nuts.
4. Adjust the rear quarter window.







5. Tighten the nuts.

NOTE: After correct adjustment, have an assistant hold the rear quarter glass in place.







6. Tighten the screws.
7. Cycle the rear quarter flip window for correct operation.
8. Install the quarter trim panel.
